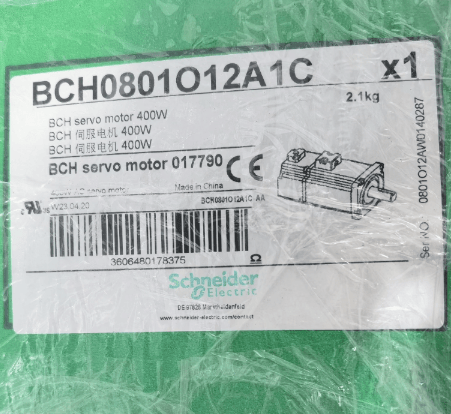

Schneider Electric Lexium BCH0801O12A1C Servo Motor, 20-bit Encoder, 0.5 kW, O-frame 80 mm, Keyed Shaft, No Oil Seal, Straight Connector
Regular price
$350.00 USD
Regular price
Sale price
$350.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The Schneider Electric BCH0801O12A1C is a discontinued, service-only servo motor from the BCH series, designed for integration with the Lexium 23 Plus drive system. This compact 0.4 kW motor operates on a single-phase 220 V supply and features a high-resolution 20-bit incremental encoder and a keyed shaft for precise motion control applications.
Key Features:
- High-precision 20-bit incremental encoder for accurate positioning feedback.
- Compatible with Schneider Electric's Lexium 23 Plus servo drives.
- Compact Asian standard (80 mm) flange mounting design.
- Keyed shaft (14 mm diameter) for secure mechanical coupling.
- Natural convection cooling eliminates the need for external fans.
| Product ID / MPN | BCH0801O12A1C |
| Brand | Schneider Electric |
| Product Type | Servo Motor |
| Compatible Main Range | Lexium 23 Plus |
| Continuous Power | 0.4 kW |
| Rated Supply Voltage [Us] | 220 V |
| Network Number of Phases | Single phase |
| Continuous Stall Current | 2.6 A |
| Maximum Mechanical Speed | 5000 rpm |
| Torque Constant | 0.49 N.m/A |
| Back EMF Constant | 18.5 V/krpm at 20 °C |
| Rotor Inertia | 0.68 kg.cm² |
| Stator Resistance | 1.86 Ohm at 20 °C |
| Stator Inductance | 14.78 mH at 20 °C |
| Stator Electrical Time Constant | 7.96 ms at 20 °C |
| Feedback Type | 20 bits incremental encoder |
| Holding Brake | Without |
| Shaft End | Keyed |
| Shaft Diameter | 14 mm |
| Shaft Length | 24.5 mm |
| Key Width | 5 mm |
| Mounting Support | Asian standard flange |
| Motor Flange Size | 80 mm |
| Maximum Radial Force Fr | 245 N |
| Maximum Axial Force Fa | 98 N |
| Centring Collar Diameter | 70 mm |
| Centring Collar Depth | 3 mm |
| Number of Mounting Holes | 4 |
| Mounting Holes Diameter | 6.6 mm |
| Circle Diameter of Mounting Holes | 90 mm |
| Distance Shaft Shoulder-Flange | 24.5 mm |
| Length (without brake) | 112.3 mm |
| Net Weight | 2.1 kg |
| IP Degree of Protection | IP40 |
| Ambient Air Temperature for Operation | 0…40 °C |
| Type of Cooling | Natural convection |
| Warranty | 18 months |
| Product Status | Discontinued (Service only) |
