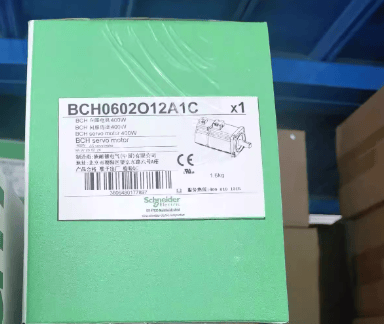

Schneider Electric Lexium BCH0602O12A1C Servo Motor, 20-bit Encoder, 0.6 kW, O-frame 60 mm, Keyed Shaft, No Oil Seal, Straight Connector

$400.00 USD
$400.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview: The Schneider Electric BCH0602O12A1C is a servo motor from the BCH series, designed for compatibility with the Lexium 23 Plus drive system. This model delivers 0.4 kW of continuous power, operates on a 220V single-phase supply, and achieves a maximum mechanical speed of 5000 rpm. It features a keyed 14mm shaft, a 20-bit incremental encoder for high-resolution feedback, and an IP40 protection rating.

Key Features:

  • Compatible with Lexium 23 Plus servo drives.
  • High-resolution 20-bit incremental encoder.
  • Keyed shaft (14mm diameter) for secure coupling.
  • Compact Asian standard flange (60mm) design.
  • Natural convection cooling.
  • Note: This product is discontinued for new designs (as of 31 Dec 2023) and available for service only.
Product ID / Article Code BCH0602O12A1C
Brand Schneider Electric
Series BCH
Product Type Servo Motor
Compatible Drive Lexium 23 Plus
Status Discontinued (Service Only)
Rated Supply Voltage 220 V
Supply Phase Single phase
Continuous Power 0.4 kW
Continuous Stall Current 2.6 A
Maximum Mechanical Speed 5000 rpm
Torque Constant 0.49 N.m/A
Rotor Inertia 0.277 kg.cm²
Feedback Type 20 bits incremental encoder
Holding Brake Without
Shaft Type Keyed
Shaft Diameter 14 mm
Shaft Length 24 mm
Key Width 5 mm
Motor Flange Size 60 mm (Asian standard)
Length (without brake) 130.7 mm
Net Weight 1.6 kg
IP Rating IP40
Operating Temperature 0…40 °C
