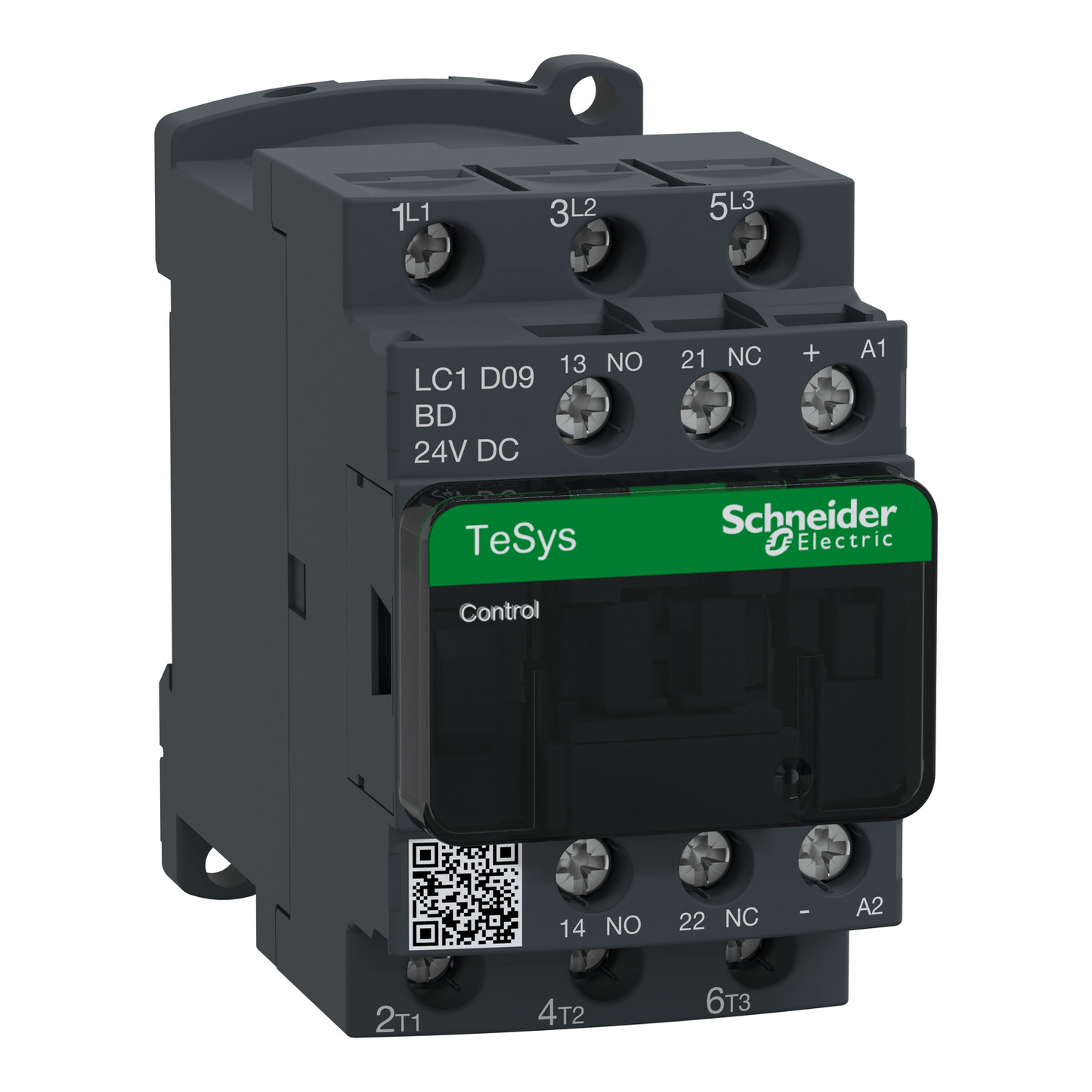

Schneider Electric LC1D12BDC Contactor, 12A, Coil Voltage DC 24V

Schneider Electric LC1D12BD Contactor

Product Type: TeSys D Contactor Model: LC1D12BD

Main Circuit Parameters:

• Number of Poles: 3P
• Power Pole Contact Composition: 3 NO (Normally Open)
• Rated Operational Current (AC-3): 12 A (at ≤ 60 °C, ≤ 440 V) for motor loads
• Rated Operational Current (AC-1): 25 A (at ≤ 60 °C, ≤ 690 V) for resistive loads
• Rated Operational Voltage (Ue):
  • 690 V AC 25...400 Hz (Power circuit)
  • 300 V DC (Power circuit)
• Motor Power (AC-3):
  • 3 kW at 220...230 V (50/60 Hz)
  • 5.5 kW at 380...400 V (50/60 Hz)
  • 5.5 kW at 415...440 V (50/60 Hz)
  • 7.5 kW at 500 V (50/60 Hz)
  • 7.5 kW at 660...690 V (50/60 Hz)

Control Circuit Parameters:

• Coil Voltage: 24 V DC
• Coil Type: DC Standard
• Auxiliary Contact Composition: 1 NO + 1 NC (1 Normally Open, 1 Normally Closed)
• Coil Consumption:
  • Pull-in: 70 W (at 20 °C)
  • Hold-in: 2.4 W (at 20 °C)

Environmental & Mechanical:

• Operating Temperature: -5…60 °C
• Mounting Support: Plate, Rail
• Dimensions (H x W x D): 77 mm x 45 mm x 86 mm
• Product Weight: 0.32 kg

Standards:

• IEC 60947-4-1
• IEC 60947-5-1
• UL 508
• CSA C22.2 No 14
