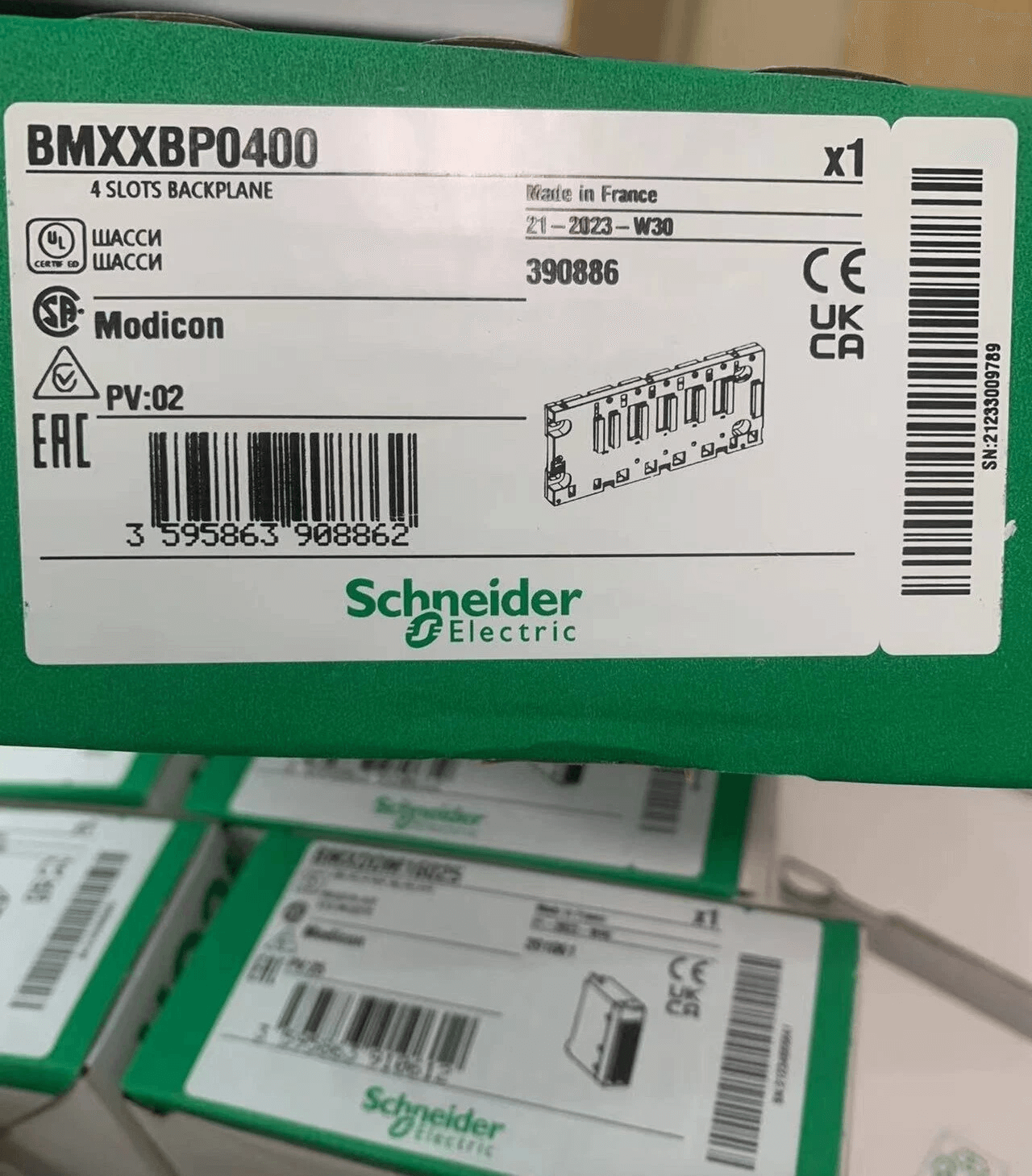

Schneider Electric BMXXBP0400 Modicon X80 Backplane — 4-Slot X‑Bus Rack, Panel/Plate/DIN‑Rail Mount, IP20

The Schneider Electric BMXXBP0400 is a 4‑slot X‑bus backplane designed for the Modicon X80 automation platform. It provides a stable in‑rack mounting and X‑bus connectivity for processors, I/O, communication and application‑specific modules (power supply module excluded). The backplane supports panel, mounting‑plate or 35 mm DIN‑rail installation and is compatible with Modicon M340, M580 and X80 modules to simplify modernization and spare‑parts management.

Key specifications

• Manufacturer: Schneider Electric
• Model: BMXXBP0400 (Modicon X80 4‑slot backplane)
• Function: 4‑slot X‑bus rack / backplane for Modicon X80 modules
• Number of slots: 4 (X bus) — slots accommodate processor, I/O, communication and specific application modules (excluding power supply)
• Product compatibility: BMXP34 processor, BMXCPS power supply, X80 I/O modules, specific application modules
• Mounting / fixing methods:
  • By 4 × M4/M5/M6 screws (panel mounting)
  • By 4 × M4/M5/M6 screws (mounting plate)
  • By clips on 35 mm symmetrical DIN rail
• Connectors: 1 XBE expansion module connector
• Mechanical dimensions:
  • Height: 103.7 mm
  • Width: 242.4 mm
  • Depth: 19 mm
• Weight:
  • Net weight: 0.63 kg
  • Package dimensions and weights per Schneider Electric packaging data
• Electrical / power:
  • Power consumption: 1.12 W
• Environmental & protection:
  • IP degree of protection: IP20 (installation inside rated enclosures recommended)
  • Operating ambient temperature: 0…60 °C
  • Relative humidity: 10…95 % without condensation
• Reliability & standards:
  • Certifications: CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy
  • Standards: EN/IEC 61131‑2; EN/IEC 61010‑2‑201; UL 61010‑2‑201; CSA C22.2 No 61010‑2‑201; IACS E10; EN/IEC 61000‑6‑5 (interface type 1 and 2); EN/IEC 61850‑3 location G
• Features & benefits:
  • Common backplane across Modicon M340, M580 and X80 modules reduces spare parts complexity and eases Quantum modernization paths.
  • Hot‑swappable capability for most I/O modules (facilitates maintenance with minimal downtime).
  • Multiple mounting options (panel, plate, DIN‑rail) provide flexible cabinet and panel integration.
  • Compact form factor and low power consumption for efficient rack design.
• Packaging & warranty:
  • Packaging units per Schneider Electric documentation
  • Contractual warranty: 18 months
