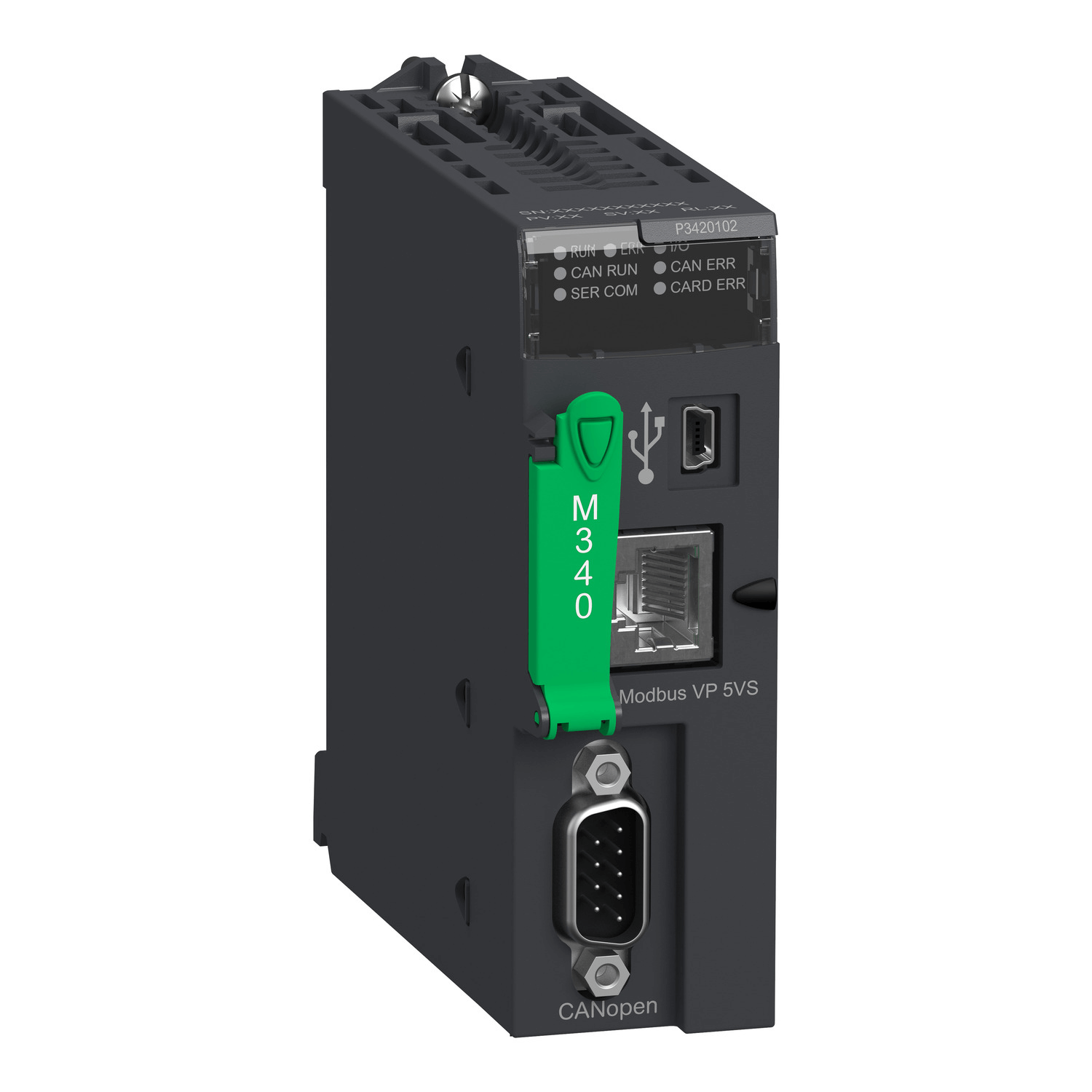

Schneider Electric BMXP3420102 Modicon M340 Processor — Up to 1024 Discrete / 256 Analog I/O, CANopen (63 nodes), Modbus, 4‑Rack, 2× Ethernet, USB, 24 V DC, IP20

$580.00 USD
$580.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview
The Schneider Electric BMXP3420102 is a powerful processor module for the Modicon M340 programmable automation controller (PAC) platform. It provides control for up to 1024 discrete and 256 analog I/O points across 4 racks and features integrated Modbus and CANopen communication protocols. With 4 MB of internal RAM and support for high-speed task execution, this module is engineered for demanding industrial applications requiring robust connectivity and processing power.

Key Features

  • High-capacity processor supporting 1024 discrete and 256 analog I/O points.
  • Integrated dual-protocol communication: Modbus (RTU/ASCII) and CANopen master.
  • Controls up to 4 local I/O racks for flexible system expansion.
  • Features a USB programming port and multiple serial link options (RS232C/RS485).
  • Equipped with comprehensive status LEDs for RUN, I/O, bus, and fault diagnostics.
  • Executes Boolean instructions at 0.12 μs for high-speed logic processing.

Technical Specifications

Product ID BMXP3420102
Range of product Modicon M340 automation platform
Product or component type Processor module
Concept Modbus, CANopen
Number of racks 4
Local I/O processor capacity (discrete) 1024 I/O
Analogue I/O processor capacity 256 I/O
Integrated connection type Non isolated serial link RJ45 character mode, RS232C/RS485
Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, RS232C/RS485
USB port at 12 Mbit/s
CANopen master bus SUB-D 9
Communication module processor capacity 2 Ethernet communication module, 4 AS-Interface module
Number of server device(s) 63 CANopen
Internal RAM 4096 kB (256 kB data, 3584 kB program constants and symbols)
Execution time per instruction 0.12 μs Boolean, 0.25 μs single-length words, 0.17 μs double-length words, 1.16 μs floating points
Current consumption 90 mA at 24 V DC
Net weight 0.21 kg
Ambient air temperature for operation 0...60 °C
Relative humidity 5...95 % without condensation
IP degree of protection IP20
Product certifications CE, UL, CSA, RCM, EAC, UKCA zone 2/22, Merchant Navy, CCSAus HazLoc Class I Div 2 Groups A,B,C,D
