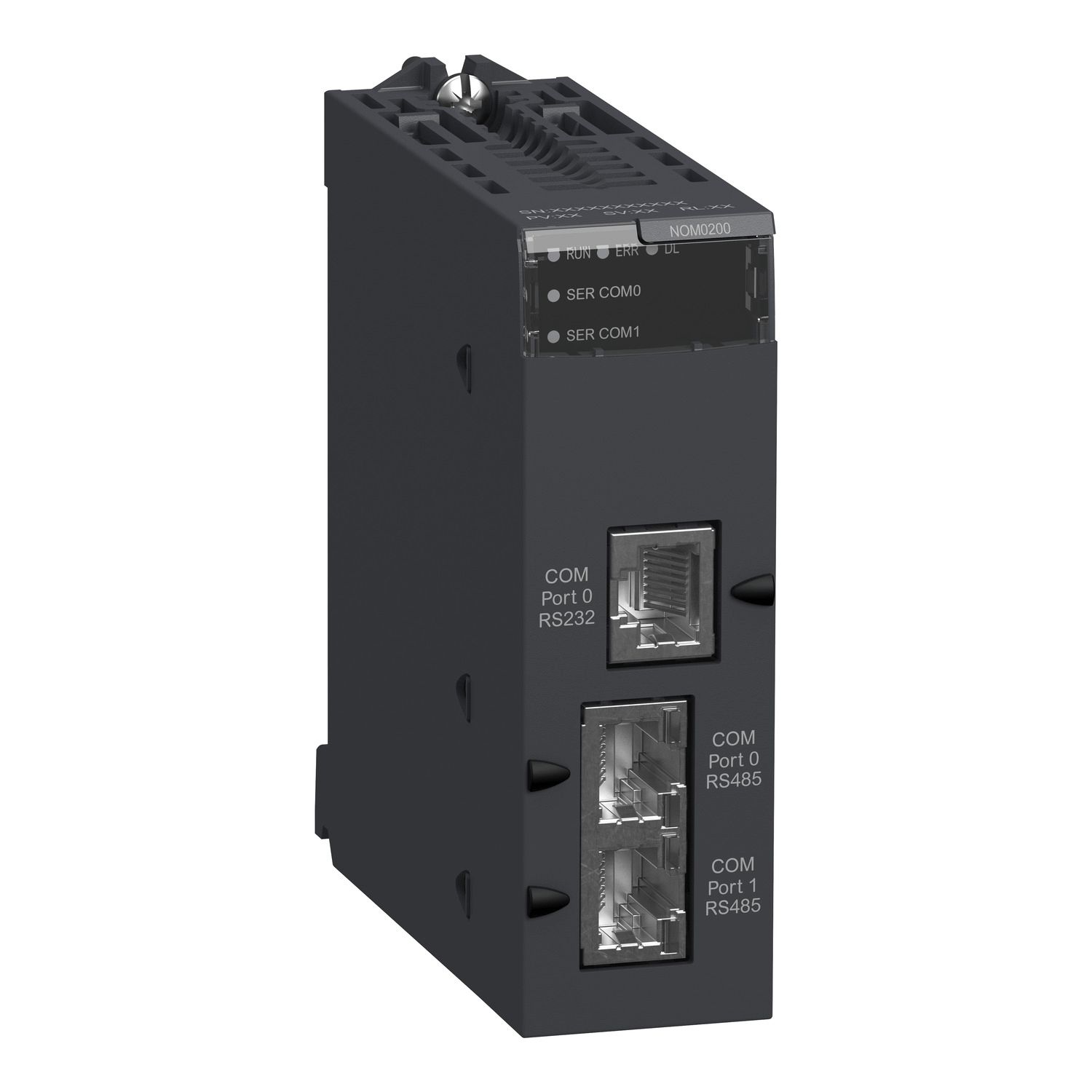

Schneider Electric BMXNOM0200 Modicon X80 Serial Link Module — 2× RS485/RS232 Ports, Modbus & Character Mode, 115.2/57.6 kbps, 80 mA at 24V DC, IP20
Regular price
$500.00 USD
Regular price
Sale price
$500.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The Schneider Electric BMXNOM0200 is a Modicon X80 serial link communication module that expands connectivity options for industrial automation systems. It provides two configurable serial ports supporting RS485 or RS232 interfaces, operating in both Modbus and character modes for flexible integration with a wide range of field devices and peripherals.
Key Features:
- Dual-port serial communication module for Modicon X80 platforms.
- Each port independently configurable as RS485 (57.6 kbit/s) or RS232 (115.2 kbit/s).
- Supports both Modbus protocol and character mode communication for maximum versatility.
- Compact, standard-format module with internal power supply via the rack.
- Clear status indication via four LEDs for module run, fault, and activity on each serial link.
- Robust industrial design rated for operation in standard temperature and humidity ranges.
| Product ID | BMXNOM0200 |
| Brand | Schneider Electric |
| Series | Modicon X80 |
| Product Type | Serial Links Module |
| Number of Ports | 2 |
| Port Types | RS485 or RS232 (configurable per port) |
| Connector | RJ45 |
| RS232 Data Rate | 115.2 kbit/s |
| RS485 Data Rate | 57.6 kbit/s |
| Communication Modes | Modbus and Character Mode |
| Current Consumption | 80 mA at 24 V DC |
| Supply | Internal via rack |
| Module Format | Standard |
| Net Weight | 0.23 kg (0.51 lb) |
| Operating Temperature | 0...60 °C (32...140 °F) |
| Relative Humidity | 10...95 % without condensation |
| IP Rating | IP20 |
| Status LEDs | 4 LEDs (RUN, ERR, SER COM 0, SER COM 1) |
| Marking | CE |
| Warranty | 18 months |
