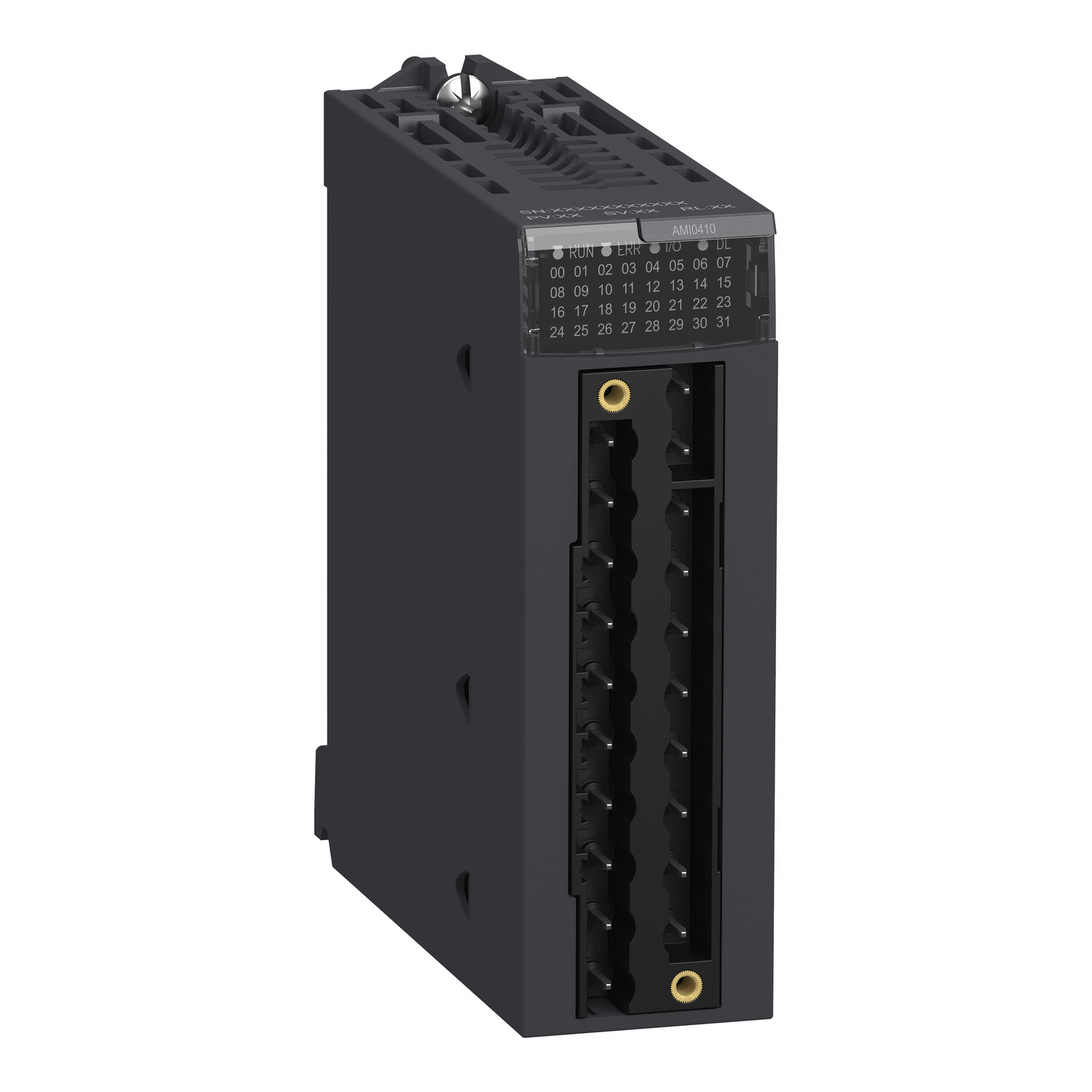

• Schneider Digital I/O Modules Schneider Electric BMXAMI0410 Modicon X80 Isolated Analog Input Module — 4‑Channel, 0–20mA / 4–20mA / ±10V, 16‑bit, 300V Channel Isolation, IP20
1 1

Schneider Electric BMXAMI0800 Modicon X80 Analog Input Module — 8‑Channel High‑Level, 0–20mA / 4–20mA / ±10V, 15‑bit + sign, Non‑Isolated Channels, IP20

$400.00 USD
$400.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview: The Schneider Electric BMXAMI0800 is a high-density, high-level analog input module for the Modicon X80 automation platform. It provides eight configurable channels capable of reading a wide range of current (0-20mA, 4-20mA, +/-20mA) and voltage (0-5V, 1-5V, 0-10V, +/-5V, +/-10V) signals. Engineered for precision, it features 16-bit analog-to-digital conversion, digital filtering, and high common-mode rejection for reliable data acquisition in industrial environments.

Key Features:

  • 8 configurable high-level analog inputs.
  • Supports current (0-20mA, 4-20mA, +/-20mA) and voltage (0-10V, +/-10V, etc.) signals.
  • 16-bit analog-to-digital conversion with 15 bits + sign resolution.
  • High channel-to-ground isolation (1400 V DC).
  • Digital filtering and fast read cycle times.
  • Compact form factor for high-density rack mounting.
Product ID / MPN BMXAMI0800
EAN / GTIN 3595864081557
Brand Schneider Electric
Range / Series Modicon X80
Product Type Analog Input Module
Number of Inputs 8
Input Level High Level
Analog Input Types Current +/- 20 mA, Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage +/- 5 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 1...5 V
Analog/Digital Conversion 16 bits
Analogue Input Resolution 15 bits + sign
Input Impedance 10 MOhm in voltage mode, 250 Ohm in current mode
Nominal Read Cycle Time 9 ms for 8 channels
Measurement Error (±10V, 0-60°C) <= 0.1 % of full scale
Measurement Error (±20mA, 0-60°C) <= 0.3 % of full scale
Common Mode Rejection 100 dB
Isolation Voltage (Channels to Ground/Bus) 1400 V DC
Electrical Connection 28 ways 1 connector
Power Consumption (24V DC max) 1.10 W
Current Consumption (24V DC) 41 mA
Operating Temperature 32...140 °F (0...60 °C)
IP Degree of Protection IP20
MTBF Reliability 1700000 H
Net Weight 0.364 lb (0.165 kg)
Product Certifications CE, RCM, CSA, EAC, UL
