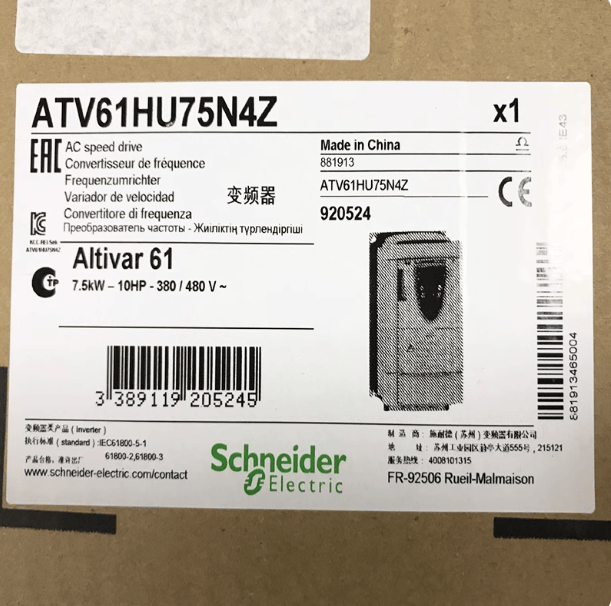

Schneider Electric Altivar ATV61HU75N4Z VFD, 10 HP (7.5 kW), 3-Phase 380-480V, IP20
Regular price
$1,000.00 USD
Regular price
Sale price
$1,000.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The Schneider Electric ATV61HU75N4Z is a discontinued variable speed drive (VSD) from the Altivar 61 series, designed for pumping and ventilation applications. It delivers 7.5 kW (10 HP) output power and is rated for a 380-480V, 3-phase supply. This model features flux vector control without sensor, a wide range of configurable I/O, and supports multiple communication protocols via optional cards.
Key Features:
- Motor Power: 7.5 kW / 10 HP (3-phase, 380...480V).
- Control: Flux vector control without sensor, standard Voltage/Frequency ratio, and Energy Saving modes.
- Communication: Built-in CANopen and Modbus ports; supports extensive optional cards (Profibus DP, EtherNet/IP, DeviceNet, etc.).
- Safety: Includes Safe Torque Off (STO) functionality via the PWR safety input.
- Design: IP20 rated (upper part), with heat sink assembly and configurable for IP21, IP41, or IP54 with kits.
- Status: Product is discontinued (as of Jan 1, 2017) but under service support until Dec 31, 2025.
| Product ID / MPN | ATV61HU75N4Z |
| EAN / GTIN | 3389119205245 |
| Brand | Schneider Electric |
| Series | Altivar 61 |
| Product Type | Variable Speed Drive |
| Application | Pumping and Ventilation |
| Motor Power | 7.5 kW |
| Horsepower | 10 HP |
| Supply Voltage | 380...480 V AC |
| Supply Phases | 3 |
| Line Current | 22.2 A @ 480V; 27 A @ 380V |
| Continuous Output Current | 14 A @ 460V, 12 kHz; 17.6 A @ 380V, 12 kHz |
| Nominal Switching Frequency | 12 kHz |
| Switching Frequency Range | 1...16 kHz adjustable |
| Output Frequency Range | 0.1…599 Hz |
| Control Modes | Flux vector control without sensor, V/F (2 & 5 point, Quadratic, Energy Saving) |
| Analog Inputs | 2 (AI1: +/-10V; AI2: 0-20mA / 0-10V) |
| Analog Outputs | 1 (AO1: 0-20mA / 0-10V) |
| Discrete Inputs | 7 (6 programmable, 1 safety PWR) |
| Relay Outputs | 2 (R1: NO/NC; R2: NO) |
| Communication Ports | CANopen (SUB-D 9), Modbus (2x RJ45) |
| Degree of Protection (IP) | IP20 (upper part, standard), configurable to IP21, IP41, IP54 with kits |
| Operating Temperature | -10…50 °C (14…122 °F) without derating; 50…60 °C (122…140 °F) with derating |
| Dimensions (H x W x D) | 295 x 175 x 187 mm (11.6 x 6.9 x 7.4 in) |
| Net Weight | 5.5 kg (12.1 lb) |
| Standards & Certifications | CE, UL, CSA, C-tick, GOST, DNV, NOM |
| Product Status | Discontinued (Jan 1, 2017). End of Service: Dec 31, 2025. |
| Warranty | 18 Months |
