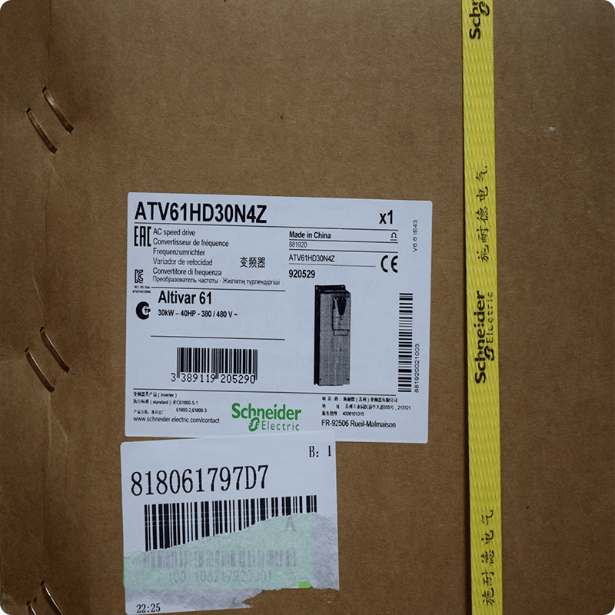

Schneider Electric Altivar ATV61HD30N4Z VFD, 40 HP (30 kW), 3-Phase 380-480V, IP20, EMC Filter, No HMI

$2,500.00 USD
$2,500.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview: The Schneider Electric ATV61HD30N4Z is a discontinued variable speed drive (VSD) from the Altivar 61 series, designed for pumping and ventilation applications. It features a 30 kW / 40 HP output capacity for 3-phase 380-480V power supplies and includes integrated EMC filtering, Modbus, and CANopen communication protocols. This model is configured without a remote graphic terminal and is designed for mounting with a heat sink.

Key Features:

  • 30 kW (40 HP) motor power rating for 3-phase 380-480V systems.
  • Integrated Level 3 EMC filter for reduced electromagnetic interference.
  • Dual communication ports: Modbus (RS485) and CANopen for industrial network integration.
  • Advanced motor control options include Voltage/Frequency, Energy Saving (quadratic U/f), and Flux Vector control without sensor.
  • Comprehensive I/O: 2 analog inputs, 1 analog output, 7 discrete/logic inputs, and 2 configurable relay outputs.
  • Designed for vertical mounting with IP20/IP21/IP41/IP54 protection levels depending on configuration.
  • Safety features include Safe Torque Off (STO) via the PWR terminal.
Product ID / Article Code ATV61HD30N4Z
Brand Schneider Electric
Series Altivar 61
Product Type Variable Speed Drive (VSD)
Motor Power 30 kW
Horse Power (HP) 40 HP
Supply Voltage 380...480 V AC
Supply Phases 3
Line Current (480V) 56 A
Line Current (380V) 66 A
Continuous Output Current (460V, 12kHz) 52 A
Continuous Output Current (380V, 12kHz) 66 A
Output Frequency Range 0.1…599 Hz
Nominal Switching Frequency 12 kHz
Switching Frequency Range 1...16 kHz adjustable
Control Methods Voltage/Frequency, Energy Saving (quadratic U/f), Flux Vector control without sensor
Communication Protocols Modbus, CANopen
EMC Filter Level 3 (Integrated)
Analog Inputs 2 (AI1: +/-10V, AI2: 0-20mA / 0-10V)
Analog Outputs 1 (AO1: 0-20mA / 0-10V)
Discrete/Logic Inputs 7 (LI1...LI6, PWR)
Relay Outputs 2 (R1: NO/NC, R2: NO)
Safety Function Safe Torque Off (STO) via PWR terminal
Operating Temperature -10…50 °C (14…122 °F) without derating
Storage Temperature -25…70 °C (-13…158 °F)
Protection Rating (IP) IP20/IP21/IP41/IP54 (depends on mounting)
Dimensions (W x H x D) 240 x 550 x 266 mm (9.44 x 21.65 x 10.5 in)
Net Weight 37 kg (81.6 lb)
Standards & Certifications UL, CSA, CE, C-Tick, GOST, DNV, IEC 61800
Status Discontinued (Jan 1, 2017). End-of-service: Dec 31, 2025.
