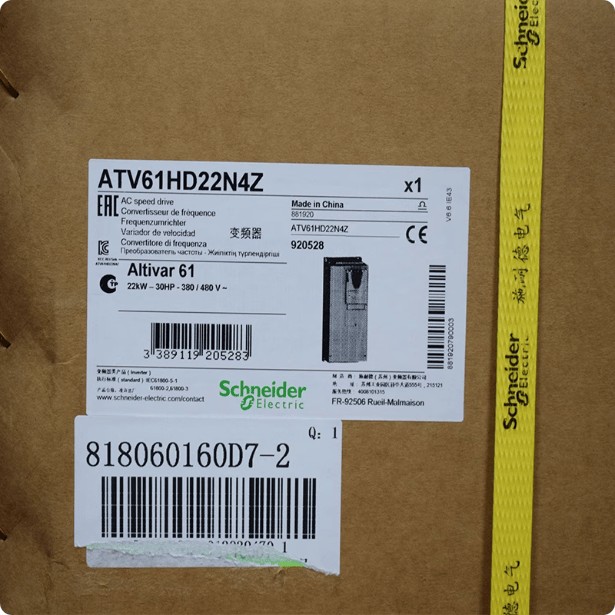

Schneider Electric Altivar ATV61HD22N4Z VFD, 30 HP (22 kW), 3-Phase 380-480V, IP20, EMC Filter, No HMI

$2,000.00 USD
$2,000.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview: The Schneider Electric ATV61HD22N4Z is a discontinued variable speed drive (VSD) from the Altivar 61 series, engineered for high-power pumping and ventilation applications. It delivers 22 kW (30 HP) output power and operates on a 380-480V, 3-phase supply. This unit features advanced flux vector control without a sensor, comprehensive configurable I/O, and supports a wide array of industrial communication protocols via optional cards.

Key Features:

  • Motor Power: 22 kW / 30 HP (3-phase, 380...480V).
  • Control Technology: Flux vector control without sensor, standard Voltage/Frequency ratio (2-point, 5-point, and Energy Saving quadratic U/f).
  • Connectivity: Integrated CANopen and Modbus ports; compatible with numerous optional communication cards (Profibus DP, EtherNet/IP, DeviceNet, etc.).
  • Safety Function: Includes Safe Torque Off (STO) via the dedicated PWR safety input.
  • Enclosure: Standard IP20 rating (upper part), configurable to IP21, IP41, or IP54 with appropriate mounting kits.
  • Product Status: Discontinued as of January 1, 2017, with service support available until December 31, 2025.
Product ID / MPN ATV61HD22N4Z
EAN / GTIN 3389119205283
Brand Schneider Electric
Series Altivar 61
Product Type Variable Speed Drive
Application Pumping and Ventilation
Motor Power 22 kW
Horsepower 30 HP
Supply Voltage 380...480 V AC
Supply Phases 3
Line Current 42 A @ 480V; 50 A @ 380V
Continuous Output Current 40 A @ 460V, 12 kHz; 48 A @ 380V, 12 kHz
Nominal Switching Frequency 12 kHz
Switching Frequency Range 1...16 kHz adjustable
Output Frequency Range 0.1…599 Hz
Control Modes Flux vector control without sensor, V/F (2 & 5 point, Quadratic, Energy Saving)
Analog Inputs 2 (AI1: +/-10V; AI2: 0-20mA / 0-10V)
Analog Outputs 1 (AO1: 0-20mA / 0-10V)
Discrete Inputs 7 (6 programmable, 1 safety PWR)
Relay Outputs 2 (R1: NO/NC; R2: NO)
Communication Ports CANopen (SUB-D 9), Modbus (2x RJ45)
Degree of Protection (IP) IP20 (upper part, standard), configurable to IP21, IP41, IP54 with kits
Operating Temperature -10…50 °C (14…122 °F) without derating; 50…60 °C (122…140 °F) with derating
Dimensions (H x W x D) 420 x 240 x 236 mm (16.5 x 9.4 x 9.3 in)
Net Weight 30 kg (66.1 lb)
Standards & Certifications CE, UL, CSA, C-tick, GOST, DNV, NOM
Product Status Discontinued (Jan 1, 2017). End of Service: Dec 31, 2025.
Warranty 18 Months
