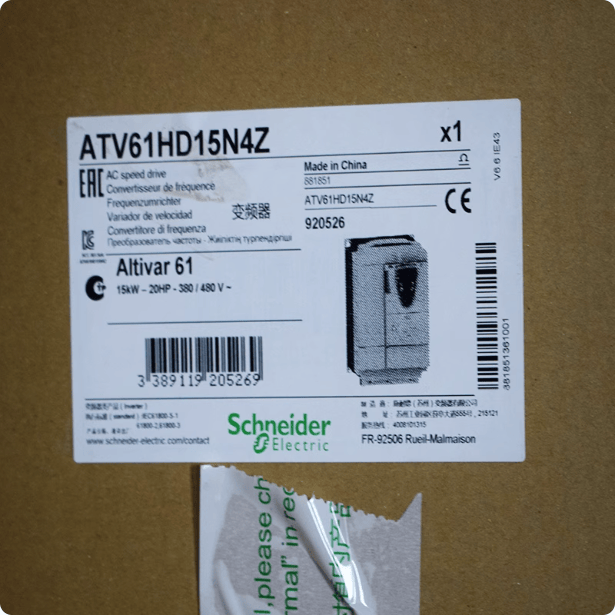

Schneider Electric Altivar ATV61HD15N4Z VFD, 20 HP (15 kW), 3-Phase 380-480V, IP20, EMC Filter, No HMI

$1,400.00 USD
$1,400.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview: The Schneider Electric ATV61HD15N4Z is a discontinued variable speed drive (VSD) from the Altivar 61 series, designed for demanding pumping and ventilation applications. It delivers 15 kW (20 HP) of output power and is compatible with a 380-480V, 3-phase supply. This model incorporates flux vector control without a sensor, extensive configurable I/O, and dual communication ports for Modbus and CANopen, with support for numerous optional protocol cards.

Key Features:

  • Motor Power: 15 kW / 20 HP (3-phase, 380...480V).
  • Advanced Control: Flux vector control without sensor, plus standard Voltage/Frequency ratio modes (2-point, 5-point, and Energy Saving).
  • Flexible Connectivity: Integrated Modbus and CANopen interfaces; accepts a wide range of optional communication cards (Profibus DP, EtherNet/IP, DeviceNet, etc.).
  • Integrated Safety: Features Safe Torque Off (STO) functionality via the dedicated PWR safety input.
  • Enclosure Rating: Standard IP20 (upper part), upgradeable to IP21, IP41, or IP54 with appropriate accessory kits.
  • Product Lifecycle: Discontinued as of January 1, 2017, with manufacturer service support available until December 31, 2025.
Product ID / MPN ATV61HD15N4Z
EAN / GTIN 3389119205269
Brand Schneider Electric
Series Altivar 61
Product Type Variable Speed Drive
Application Pumping and Ventilation
Motor Power 15 kW
Horsepower 20 HP
Supply Voltage 380...480 V AC
Supply Phases 3
Line Current 39 A @ 480V; 48 A @ 380V
Continuous Output Current 27 A @ 460V, 12 kHz; 33 A @ 380V, 12 kHz
Nominal Switching Frequency 12 kHz
Switching Frequency Range 1...16 kHz adjustable
Output Frequency Range 0.1…599 Hz
Control Modes Flux vector control without sensor, V/F (2 & 5 point, Quadratic, Energy Saving)
Analog Inputs 2 (AI1: +/-10V; AI2: 0-20mA / 0-10V)
Analog Outputs 1 (AO1: 0-20mA / 0-10V)
Discrete Inputs 7 (6 programmable, 1 safety PWR)
Relay Outputs 2 (R1: NO/NC; R2: NO)
Communication Ports Modbus (2x RJ45), CANopen (SUB-D 9)
Degree of Protection (IP) IP20 (upper part, standard), configurable to IP21, IP41, IP54 with kits
Operating Temperature -10…50 °C (14…122 °F) without derating; 50…60 °C (122…140 °F) with derating
Dimensions (H x W x D) 400 x 230 x 213 mm (15.7 x 9.06 x 8.4 in)
Net Weight 22 kg (48.5 lb)
Standards & Certifications CE, UL, CSA, C-tick, GOST, NOM, DNV
Product Status Discontinued (Jan 1, 2017). End of Service: Dec 31, 2025.
Warranty 18 Months
