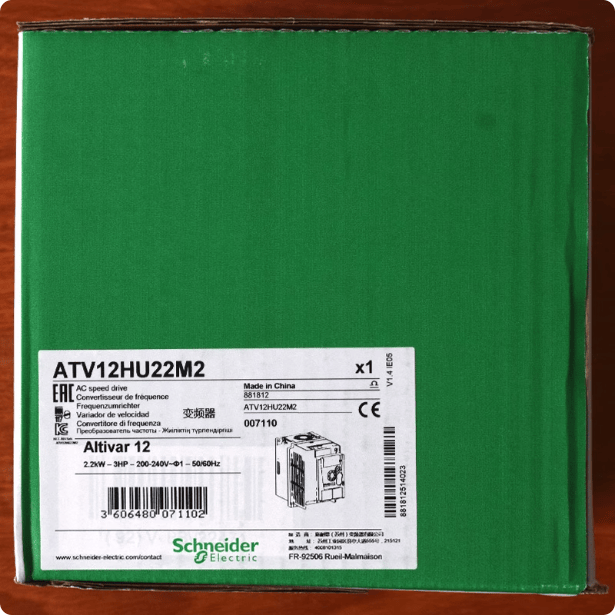

Schneider Electric Altivar ATV12HU22M2 VFD, 3 HP (2.2 kW), Single Phase 200-240V, with Heatsink
Regular price
$350.00 USD
Regular price
Sale price
$350.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The Schneider Electric ATV12HU22M2 is a compact, cabinet-mount variable speed drive (VSD) from the Altivar 12 series, designed for simple machine applications. It features a 2.2 kW / 3 HP output, a 200-240V single-phase supply, and an integrated Modbus communication interface for basic connectivity. This model includes an integrated heat sink for efficient thermal management.
Key Features:
- Simple machine application focus with cabinet mounting.
- Integrated Modbus serial communication (2-wire RS485 via RJ45).
- Integrated EMC filter for compliance in industrial environments.
- Sensorless flux vector and V/f motor control profiles.
- Four discrete inputs, two discrete outputs, and analogue I/O for flexible control.
- Compact design with IP20 protection degree.
| Product ID / Article Code | ATV12HU22M2 |
| EAN / GTIN | 3606480071102 |
| Brand | Schneider Electric |
| Series | Altivar 12 |
| Product Type | Variable Speed Drive |
| Rated Motor Power | 2.2 kW |
| Maximum Horsepower | 3 HP |
| Rated Supply Voltage | 200...240 V -15...+10% |
| Supply Phase | 1 |
| Supply Frequency | 50/60 Hz +/- 5% |
| Nominal Output Current | 10 A |
| Maximum Output Frequency | 400 Hz |
| Nominal Switching Frequency | 4 kHz |
| Transient Overtorque | 150...170% of nominal motor torque |
| Control Method | Sensorless flux vector control, Voltage/frequency ratio (V/f) |
| Communication Protocol | Modbus (RTU frame) |
| Physical Interface | 2-wire RS 485 (RJ45 connector) |
| Discrete Inputs | 4 |
| Discrete Outputs | 2 |
| Analogue Inputs | 1 |
| Analogue Outputs | 1 |
| Relay Outputs | 1 |
| IP Rating | IP20 |
| EMC Filter | Integrated |
| Mounting Style | With heat sink |
| Width | 4.1 in (105 mm) |
| Height | 5.6 in (142 mm) |
| Depth | 6.1 in (156.2 mm) |
| Net Weight | 3.09 lb (1.4 kg) |
| Operating Temperature | 14…122 °F (-10…50 °C) without derating |
| Storage Temperature | -13…158 °F (-25…70 °C) |
| Relative Humidity | 5…95 % without condensation |
| Operating Altitude | ≤ 3280.84 ft (1000 m) without derating |
| Standards & Certifications | UL 508C, IEC 61800-5-1, IEC 61800-3, CE, cULus, NOM, CSA, C-tick, RCM, KC, GOST R |
