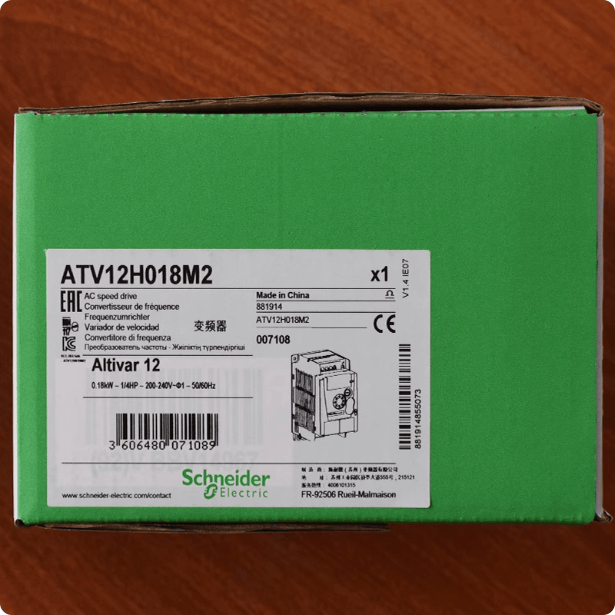

Schneider Electric Altivar ATV12H018M2 VFD, 0.25 HP (0.18 kW), Single Phase 200-240V
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The Schneider Electric ATV12H018M2 is a compact, cabinet-mount variable speed drive (VSD) from the Altivar 12 series, designed for simple machine applications. It features a 0.18 kW (0.25 HP) output capacity for single-phase 200-240V power supplies and includes an integrated EMC filter. This drive offers basic control via Modbus communication and is suitable for applications requiring simple speed regulation.
Key Features:
- 0.18 kW (0.25 HP) motor power rating for single-phase 200-240V systems.
- Integrated EMC filter for basic electromagnetic compatibility.
- Modbus (RS485) communication via RJ45 connector for network integration.
- Compact cabinet-mount design with IP20 protection rating.
- Basic I/O configuration: 4 discrete inputs, 2 discrete outputs, 1 analog input, 1 analog output, and 1 relay output.
- Motor control profiles include Voltage/Frequency (V/f) and Sensorless Flux Vector control.
- Adjustable switching frequency from 2 to 16 kHz.
| Product ID / Article Code | ATV12H018M2 |
| Brand | Schneider Electric |
| Series | Altivar 12 |
| Product Type | Variable Speed Drive (VSD) |
| Motor Power | 0.18 kW |
| Horse Power (HP) | 0.25 HP |
| Supply Voltage | 200...240 V AC |
| Supply Phases | 1 |
| Nominal Output Current | 1.4 A |
| Continuous Output Current (4kHz) | 1.4 A |
| Output Frequency Range | 0.5…400 Hz |
| Nominal Switching Frequency | 4 kHz |
| Switching Frequency Range | 2...16 kHz adjustable |
| Control Methods | Voltage/Frequency (V/f), Sensorless Flux Vector control, Quadratic V/f |
| Communication Protocol | Modbus (RS485) |
| EMC Filter | Integrated |
| Discrete Inputs | 4 |
| Discrete Outputs | 2 |
| Analog Inputs | 1 |
| Analog Outputs | 1 |
| Relay Outputs | 1 |
| Protection Rating (IP) | IP20 |
| Operating Temperature | -10…40 °C (14…104 °F) without derating |
| Storage Temperature | -25…70 °C (-13…158 °F) |
| Dimensions (W x H x D) | 72 x 143 x 102.2 mm (2.8 x 5.6 x 4.02 in) |
| Net Weight | 0.7 kg (1.5 lb) |
| Standards & Certifications | UL, CSA, CE, C-Tick, GOST, RCM, KC, IEC 61800 |
| Availability | Stock - Normally stocked |
