Schneider Electric A9F74302 Acti9 iC60N Miniature Circuit Breaker, 3P, 2A, C Curve, 6000A - Pack of 4

$480.00 USD
$480.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview

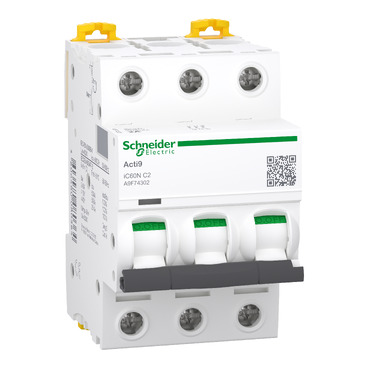

The Schneider Electric Acti9 iC60N A9F74302 is a 3-pole, thermal-magnetic miniature circuit breaker designed for AC distribution applications. It features a C tripping curve, a rated current of 2A, and a high breaking capacity of 50kA (IEC/EN 60947-2), offering reliable protection against overloads and short-circuits. This device is suitable for fixed mounting on a DIN rail and complies with key international standards including IEC/EN 60947-2 and IEC/EN 60898-1.

Key Features

  • Thermal-magnetic trip unit with C characteristic curve.
  • High breaking capacity: 50 kA Icu at 380...415 V AC.
  • Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards.
  • Limitation class 3 for enhanced short-circuit protection.
  • Fixed mounting on DIN rail with top/bottom connection capability.
  • IP20 degree of protection and pollution degree 3.
  • Equipped with a trip indicator and contact position indicator.

Technical Specifications

Product ID A9F74302
Range Acti9
Device Short Name IC60N
Poles Description 3P
Rated Current [In] 2 A
Trip Unit Technology Thermal-magnetic
Curve Code C
Breaking Capacity Icu 50 kA at 380...415 V AC 50/60 Hz (IEC/EN 60947-2)
Breaking Capacity Icn 6000 A at 400 V AC 50/60 Hz (IEC/EN 60898-1)
Rated Service Breaking Capacity [Ics] 50 kA 100% at 380...415 V AC 50/60 Hz
Magnetic Tripping Limit 8 x In +/- 20 %
Limitation Class 3 (IEC/EN 60898-1)
Rated Insulation Voltage [Ui] 500 V AC 50/60 Hz
Network Frequency 50/60 Hz
Mounting Support DIN rail
Terminal Connection Single terminal (top or bottom) 1...25 mm² rigid / 1...16 mm² flexible
Tightening Torque 2 N.m top or bottom
Width 54 mm
Height 85 mm
Depth 78.5 mm
IP Degree of Protection IP20 (IEC 60529)
Pollution Degree 3 (IEC/EN 60947-2)
Operating Ambient Temperature -35...70 °C
Electrical Durability 10000 cycles
Standards EN/IEC 60947-2, EN/IEC 60898-1
