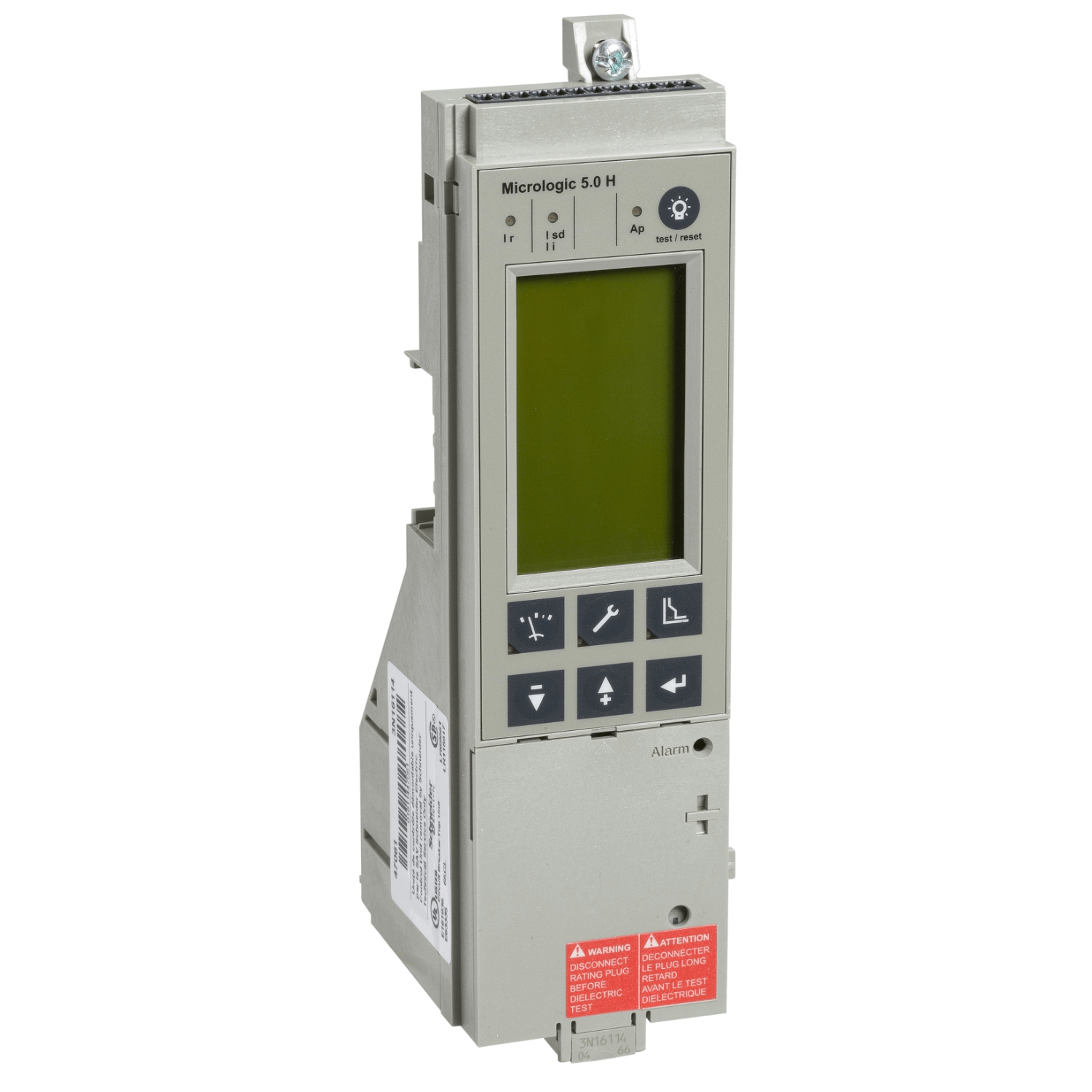

• Schneider Molded Case Circuit Breakers Schneider Electric 47061 MicroLogic 5.0 H Control Unit, MasterPact NT/NW, LSI Protection, 3P/4P, Fixed/Drawout

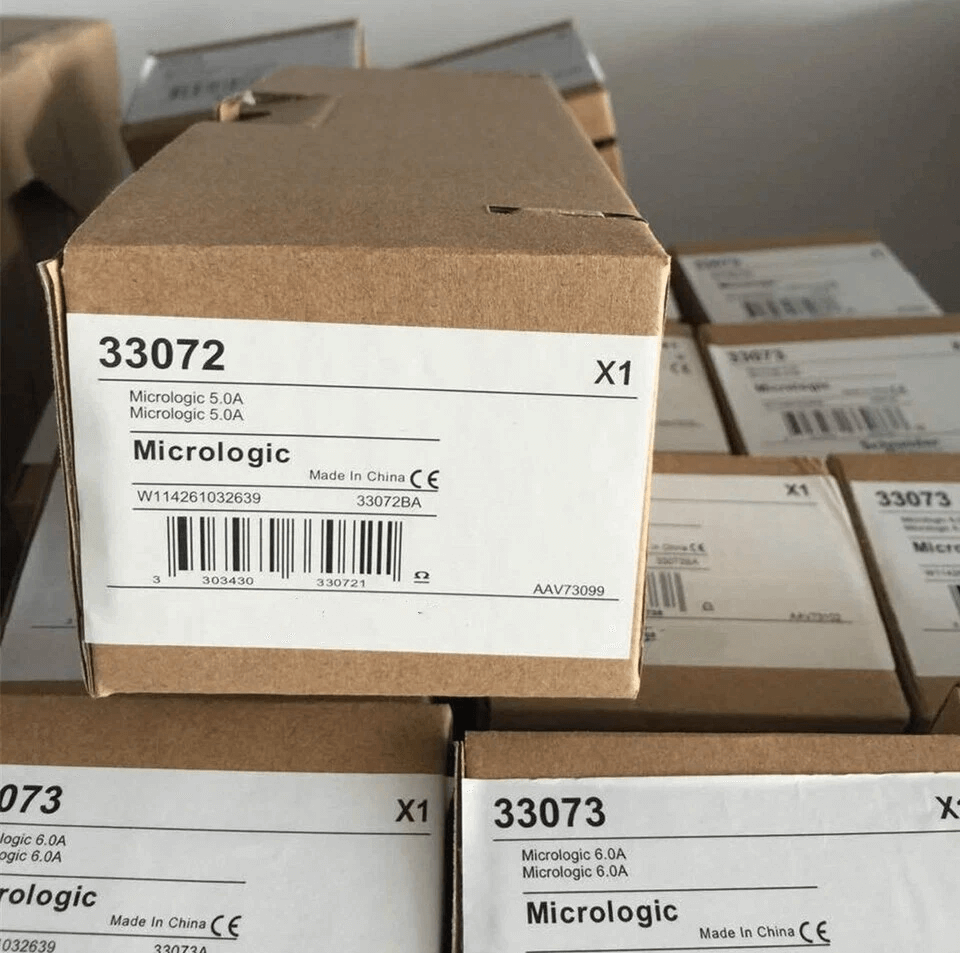

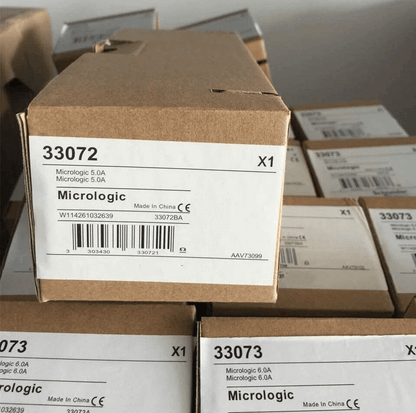

  • Schneider Molded Case Circuit Breakers Schneider Electric S143A PowerPacT P/R Circuit Breaker, MicroLogic 5.0A, LSI Protection, Field Installable
1 2

Schneider Electric 65446 MicroLogic 5.0 D Control Unit, MasterPact NT/NW, LSI Protection, 3P/4P, Fixed/Drawout

$2,000.00 USD
$2,000.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview

The Schneider Electric MicroLogic 5.0 D Control Unit, model 65446, is designed for use with MasterPact NT/NW circuit breakers. It offers LSI protection for distribution applications, supporting both fixed and drawout mounting modes. Compatible with 3P and 4P configurations, this control unit ensures reliable protection and precise measurement.

Key Features

  • LSI protection functions
  • Compatible with MasterPact NT/NW
  • Supports 3P and 4P poles
  • Fixed and drawout mounting modes
  • Digital display with local signaling LEDs

Applications

This control unit is ideal for distribution applications, providing robust protection and precise measurement for electrical systems using MasterPact NT/NW circuit breakers.

Specifications

Trip unit name MicroLogic 5.0 D
Protection functions Selective protection
Number of poles 3P, 4P
Mounting mode Fixed, Drawout
Network type AC, 50/60 Hz
Ambient air temperature for operation -25…70 °C
