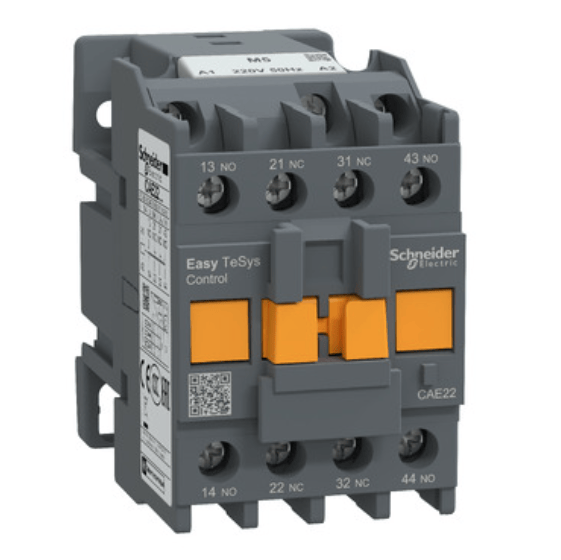

Schneider CAE22 Control relay（4 Pieces)

Technical Specifications:

• Manufacturer: Schneider Electric
• Range: Easy TeSys
• Product Type: Control Relay
• Device Short Name: CAE
• Model Number: CAE22M5
• Contactor Application: Control Circuit
• Utilisation Category: AC-14, AC-15
• Pole Contact Composition: 2 NO + 2 NC
• Rated Operational Voltage (Ue): <= 690 V AC
• Control Circuit Type: AC at 50 Hz
• Control Circuit Voltage (Uc): 220 V AC 50 Hz
• Rated Impulse Withstand Voltage (Uimp): 6 kV conforming to IEC 60947
• Conventional Free Air Thermal Current (Ith): 10 A (at 40 °C)
• Rated Making Capacity (Irms): 140 A at 690 V AC conforming to IEC 60947-5-1
• Rated Short-Time Withstand Current (Icw): 120 A (500 ms), 140 A (100 ms)
• Associated Fuse Rating: 10 A gG at 690 V conforming to IEC 60947-5-1
• Rated Insulation Voltage (Ui): 690 V conforming to IEC 60947-5-1
• Mounting Support: Rail, Plate
• Connections - Terminals: Screw clamp terminals (1 or 2 cables 1...2.5 mm², flexible with or without cable end, or solid without cable end)
• Recommended Tightening Torque: 1.2 N.m on screw clamp terminals with screwdriver Philips No 2
• Control Circuit Voltage Limits: Operational: 0.85...1.1 Uc at 50 Hz, Drop-out: 0.3...0.6 Uc
• Operating Time: Coil energisation and NC opening: 4...19 ms, Coil energisation and NO closing: 12...22 ms, Coil de-energisation and NC opening: 4...12 ms, Coil de-energisation and NO closing
• Mechanical Durability: 10 Mcycles
• Maximum Operating Rate: 180 cyc/mn
• Inrush Power in VA: 70 VA 50 Hz (at 20 °C)
• Hold-in Power Consumption in VA: 8 VA 50 Hz (at 20 °C)
• Minimum Switching Voltage: 17 V
• Minimum Switching Current: 5 mA
• Non-overlap Time: 1.5 ms (energisation & de-energisation between NC and NO contact)
• Insulation Resistance: > 10 MOhm
• Mechanical Robustness: Shocks - Control relay open: 7 Gn (11 ms), closed: 10 Gn (11 ms); Vibrations - Control relay open: 1.5 Gn, 5...300 Hz, closed: 3 Gn, 5...300 Hz
