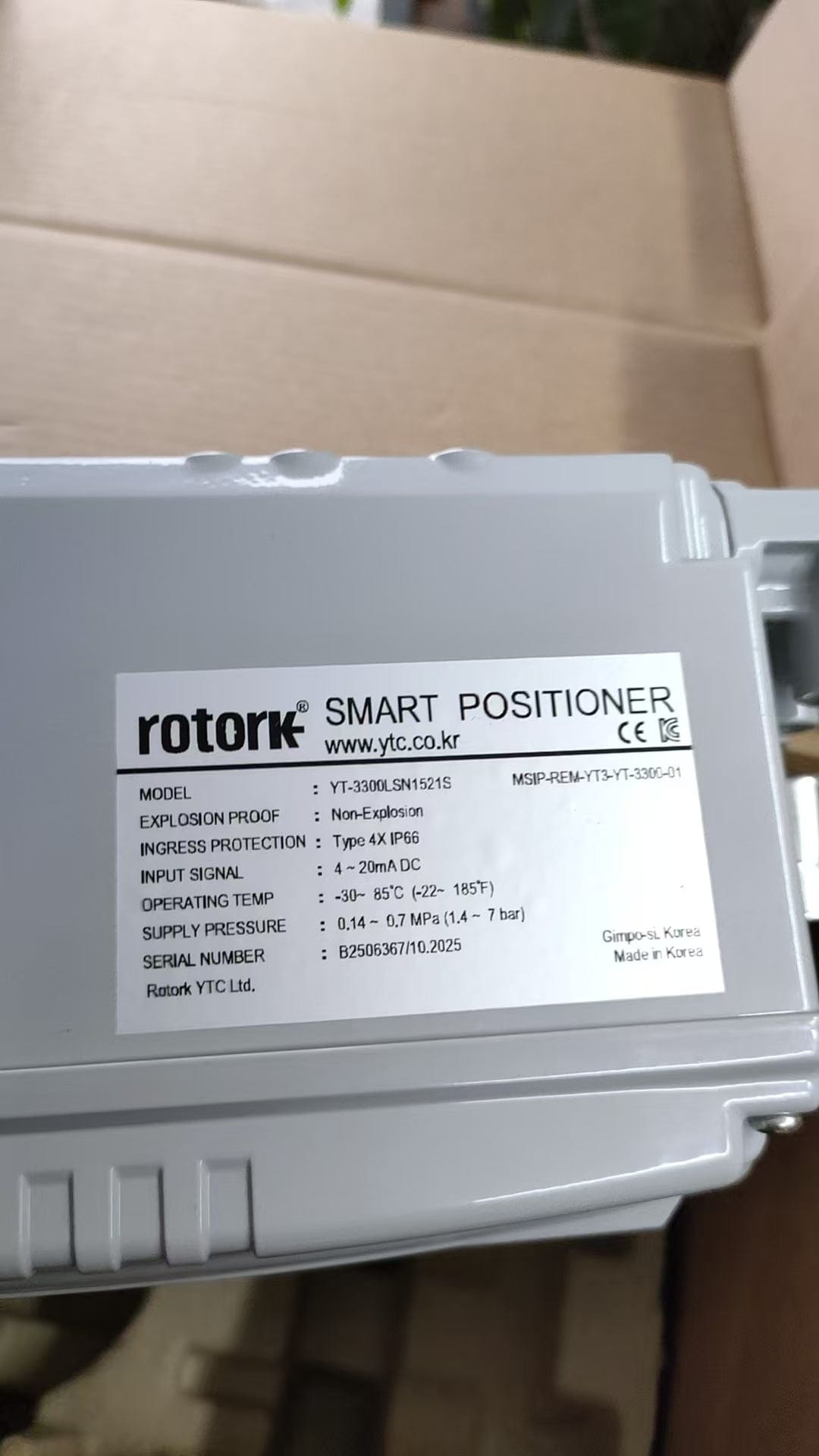

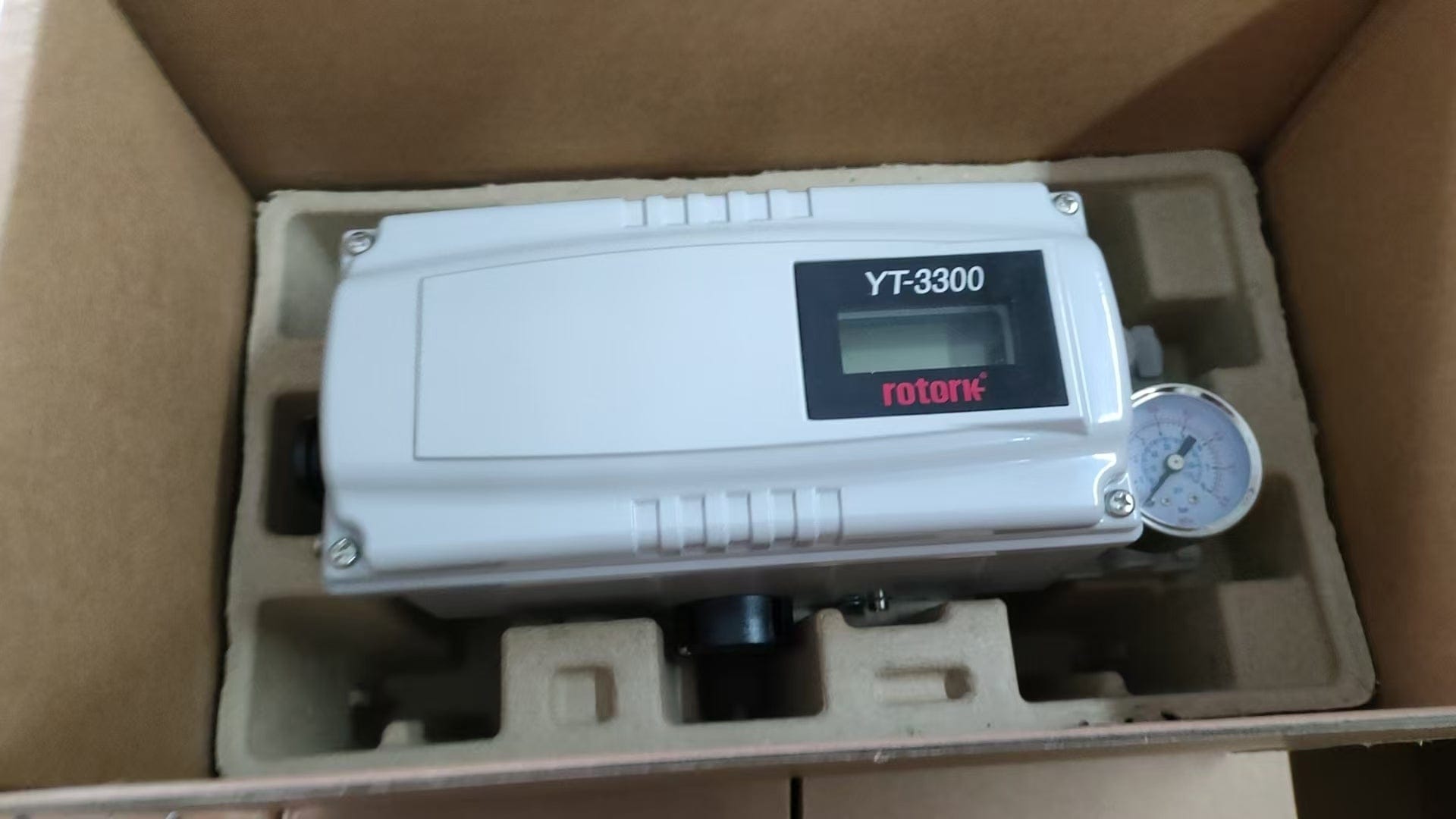

Rotork YT-3300LSN1521S Electro-Pneumatic Valve Positioner, Linear, Single-Acting, Non-Explosion Proof — Pack of 1

Manufacturer: Rotork (Young Tech Co., Ltd. - a Rotork brand)

Overview: The Rotork YT-3300LSN1521S is a sophisticated electro-pneumatic valve positioner from the advanced YT-3300 series, specifically engineered for precise and reliable control of linear, single-acting pneumatic valve actuators. This model accurately translates a standard analogue electrical input signal (e.g., 4-20mA) into a proportional pneumatic output pressure, ensuring superb control and accurate positioning of globe, gate, or diaphragm valves. The YT-3300 series is well-regarded for its exceptional durability, stable operation, and suitability for a wide array of demanding industrial applications. This particular configuration is a non-explosion-proof version, designed for general industrial environments.

Key Specifications:

• Manufacturer Part Number: YT-3300LSN1521S
• Product Type: Electro-Pneumatic Valve Positioner
• Actuation Type: Linear (for linear-motion valves)
• Action Type: Single-Acting
• Input Signal: 4-20 mA DC (standard analog current signal)
• Supply Pressure: Pneumatic instrument air, typically 1.4 to 7 bar (20 to 100 psi) (refer to datasheet for exact range)
• Output: Proportional pneumatic pressure (to actuator)
• Mounting: Standard mounting kit for linear actuators (e.g., direct or NAMUR mounting options for linear actuators, please verify specific method with datasheet)
• Housing Material: Typically Die-cast aluminum alloy
• Environmental Protection: IP66 equivalent (dust-tight and protected against powerful water jets), NEMA 4X (refer to datasheet for specific rating)
• Electrical Connection: G½ or NPT½ conduit entry (refer to part number breakdown for specific configuration)
• Pneumatic Connections: G¼ (standard for air supply and output)
• Ambient Temperature Range: Typically -20 °C to +70 °C (refer to datasheet)
• Explosion Protection: Non-explosion proof. Consult Rotork for ATEX/IECEx approved variants (e.g., intrinsically safe, explosion-proof) if required for hazardous areas.
• Typical Pack Quantity: 1
• Country of Origin: South Korea (Young Tech Co., Ltd.)
• Certificate of Origin (COO): Available upon request

Features and Benefits:

• Precision Linear Control: Delivers highly accurate and repeatable positioning for linear (reciprocating) valves, critical for maintaining exact process parameters.
• Single-Acting Design: Optimized for spring-return linear actuators, offering efficient operation and simplified pneumatic control circuits.
• Robust and Durable Construction: Features a heavy-duty die-cast aluminum housing, built to withstand harsh industrial environments, ensuring extended operational life.
• High Performance & Stability: Engineered for consistent and stable operation, minimizing hysteresis and improving overall process control.
• Excellent Environmental Protection: IP66 / NEMA 4X rating provides comprehensive protection against dust, powerful water jets, and corrosive elements, ensuring reliable operation in challenging conditions.
• Easy Calibration and Maintenance: User-friendly design facilitates straightforward setup, calibration, and routine maintenance.
• Vibration Resistance: Constructed to maintain accuracy and functionality even under industrial vibration conditions.
• Versatile Application: Suitable for a broad range of linear valve types, including globe, gate, and diaphragm valves.

Applications:

• Precise flow and pressure control in chemical industries.
• Throttling applications in oil and gas production and refining.
• Water and wastewater treatment system control.
• Steam and condensate management in power generation plants.
• Pharmaceutical manufacturing requiring accurate linear valve positioning.
• Food and beverage processing lines.
• General industrial process control for linear stem valves.

Ordering and Notes: Order by manufacturer part number YT-3300LSN1521S. For definitive technical data, including detailed dimensions, air consumption, response characteristics, material compatibility, and explicit explosion protection certifications (if an alternative model is sought), please refer to the official Rotork Young Tech Co., Ltd. datasheet for the YT-3300 series. Certificate of Origin from South Korea available upon request. Data presented reflects manufacturer specifications for the referenced part number.
