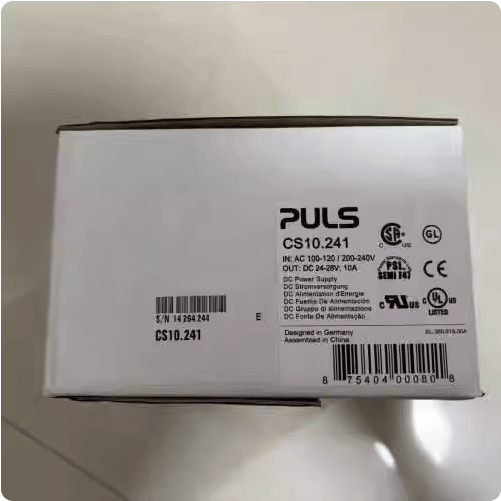

PULS CS10.241 DIN Rail Power Supply Unit, 1-Phase 24V DC 10A, AC/DC, CUBA Series, 50-60Hz, 100-240V AC, 110-150V DC

PULS CS10.241 DIN Rail Power Supply Unit

The PULS CS10.241 is a robust and compact single-phase DIN-rail mount power supply unit from the CUBA series, designed to provide essential power solutions for industrial applications where reliability and cost-efficiency are paramount. Delivering a stable 24V DC output at 10A, this unit is engineered for straightforward functionality without compromising on PULS's renowned quality and long service life. Its solid feature set makes it an excellent choice for a wide array of control systems and general industrial loads.

Manufacturer Information:

• Manufacturer: PULS
• Part Number: CS10.241
• Product Type: Power Supply Unit
• Series: CUBA Series
• Input Voltage Range:
  • AC: 100 V AC to 240 V AC (Wide Range, nominal 100-240V AC)
  • DC: 110 V DC to 150 V DC (nominal 110-150V DC)
• Input Frequency: 50-60 Hz (Nominal)
• Output Voltage: 24 V DC (adjustable 24 V DC to 28 V DC)
• Output Current:
  • Nominal: 10 A
  • Overload Capabilities:
    • 12 A (for 2 seconds, then shut-down)
    • Permanent short-circuit and overload protection
• Efficiency: Typ. 90.5% (at 230 V AC, 24 V DC, nominal load)
• Mounting Type: DIN Rail (TS35/7.5 or TS35/15)
• Operating Temperature: -10 °C to +70 °C (full power up to +60°C, then derating)
• Protection Rating: IP20
• Safety Standards: UL 508, UL 60950-1, IEC/EN 60950-1, IEC/EN 62368-1, etc. (Check datasheet for full list)
• Key Features:
  • Good Efficiency: Optimized for cost-effective operation.
  • Compact Housing: Small footprint for space-constrained applications.
  • Active PFC: For reduced line harmonics.
  • Wide Input Range: Suitable for various worldwide power grids.
  • Robust Plastic Housing: For industrial durability and electrical isolation.
  • DC-OK LED Indicator: For quick status verification
