Parker SDV-20610-1D SDV20 Medium Pressure Vane Pump, Clockwise Rotation, 2-Bolt Flange
Regular price
$700.00 USD
Regular price
Sale price
$700.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview

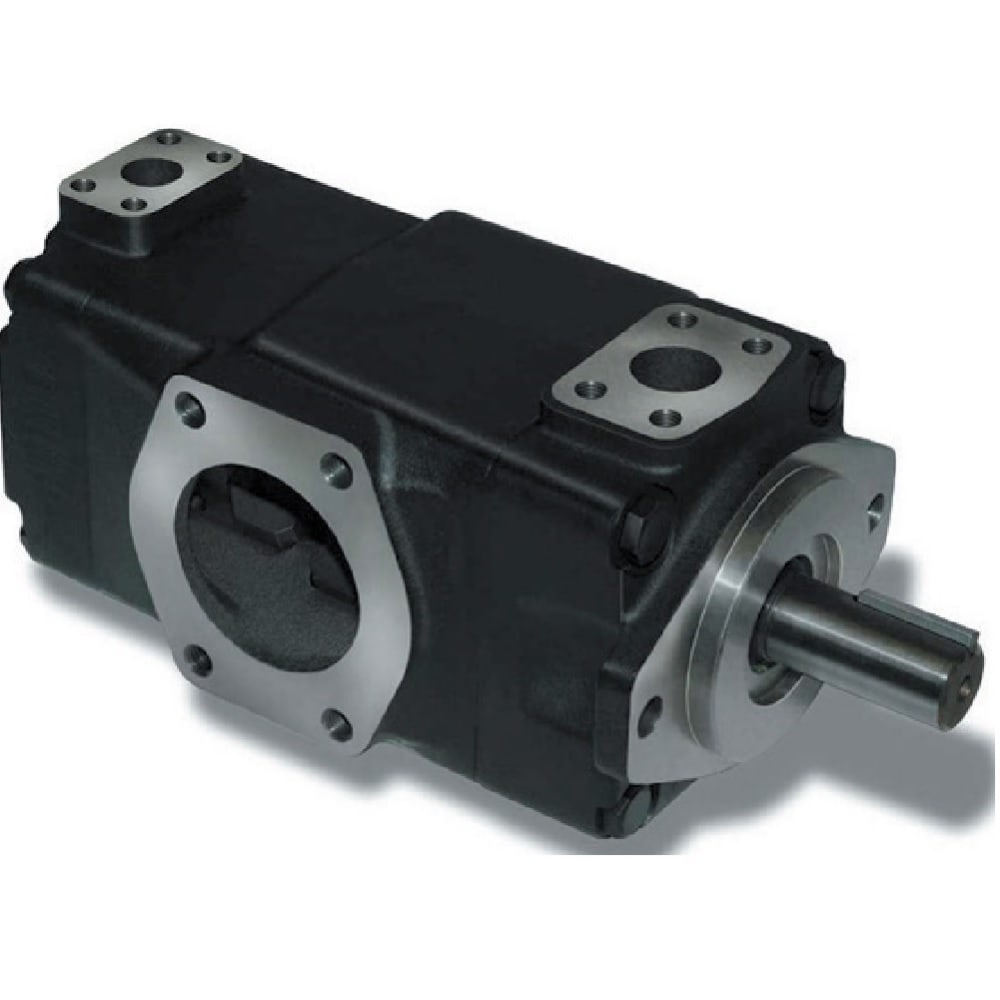

The Parker SDV20 Medium Pressure Vane Pump, Part # SDV-20610-1D, is designed for robust industrial applications. It features a clockwise rotation, with a reliable 2-Bolt Flange (SAE A) and straight keyed shaft.
Key Features
- Medium Pressure Vane Pump
- Clockwise Rotation
- 2-Bolt Flange, 3-1/4" Pilot (SAE A)
- Straight Keyed Shaft Type
- SDV20 Series
Specifications
| Part Number | SDV-20610-1D |
| Series | SDV20 |
| Direction of Rotation | Clockwise |
| Additional Options | Not Available |
| Outlet Port Displacement 1 (cc/rev) | 39.0 |
| Outlet Port Displacement 2 (cc/rev) | Not Available |
| Port Location | 90 CW from inlet |
| Flange Size | 2-Bolt Flange, 3-1/4" Pilot (SAE A) |
| Shaft Type | Straight keyed |
| Port Connection Inlet | 1" 1/4 NPTF thread |
| Outlet Port Connection 1 | 3/4" NPTF thread |
| Outlet Port Connection 2 | Not Available |
