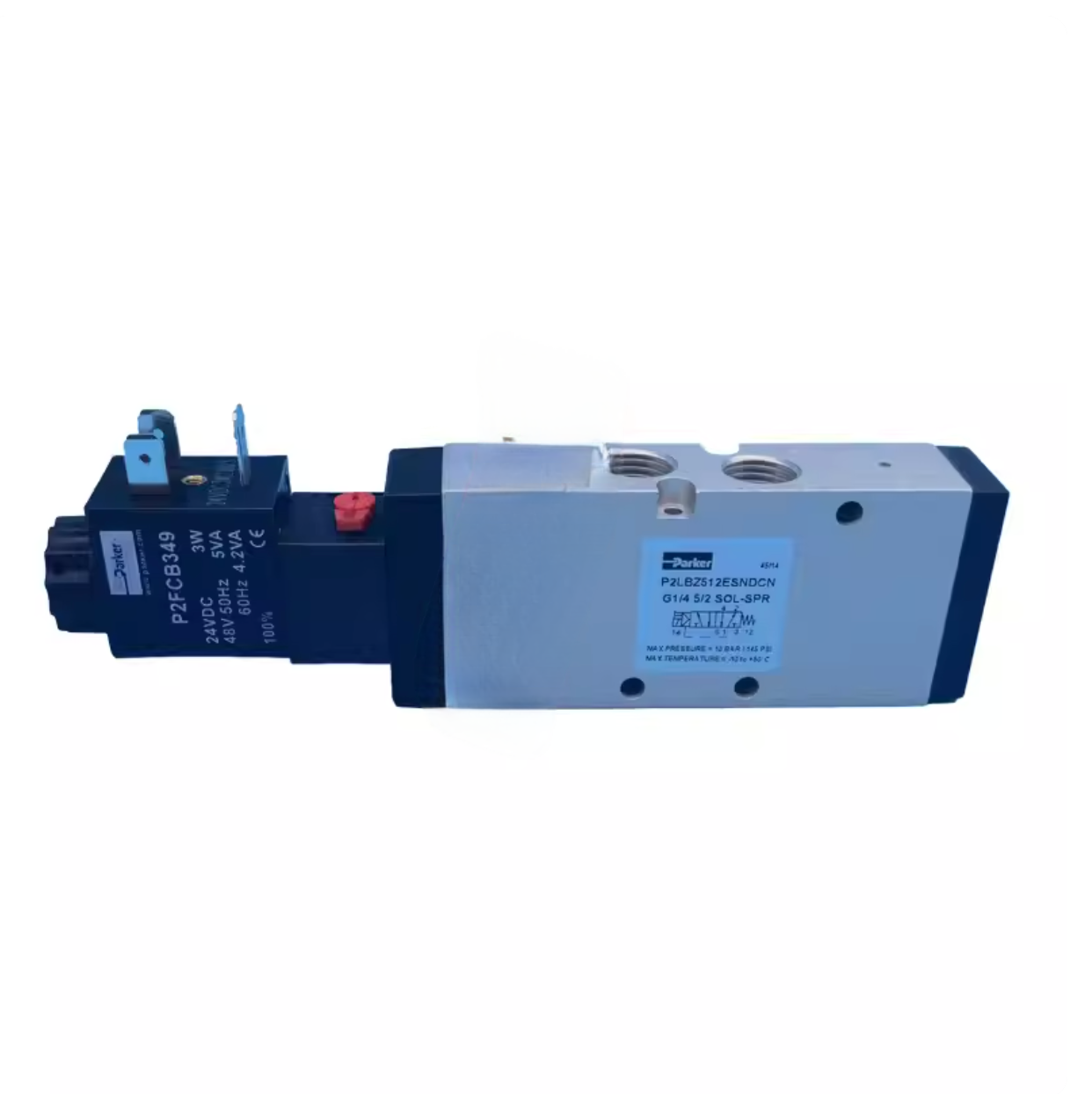

Parker P2LBZ512ESNDCB49 Viking Xtreme Directional Control Valve, 5/2 G1/4", 24VDC
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Parker Viking Xtreme P2LBZ512ESNDCB49 is a high-performance 5/2-way pneumatic solenoid valve designed for mission-critical applications in harsh environments. Part of the renowned Viking Xtreme series, this valve features a G1/4" port size and utilizes a solenoid-actuated, spring-return mechanism for precise directional control. Engineered for reliability, it operates on a 24VDC signal and is built to withstand extreme mechanical cycles and temperature fluctuations common in mobile and industrial automation sectors.
| Product ID | P2LBZ512ESNDCB49 |
| Manufacturer | Parker Hannifin |
| Series | Viking Xtreme (B12) |
| Valve Function | 5/2-way, 2-position |
| Actuation Type | Solenoid / Spring |
| Control Voltage | 24VDC |
| Port Size | G1/4 (BSPP) |
| Flow Rate (Qn) | 1300 l/min / 1.3 Cv |
| Operating Pressure Min | 1.5 bar (21.8 psi) |
| Operating Pressure Max | 10 bar (145 psi) |
| Body Material | Anodized Aluminium |
| Seal Material | Nitrile (NBR) |
| Pilot Type | Internal |
| Manual Override | Yes (Non-locking) |
| Spool Type | Standard Spool |
| Mounting Type | In-line / Manifold |
