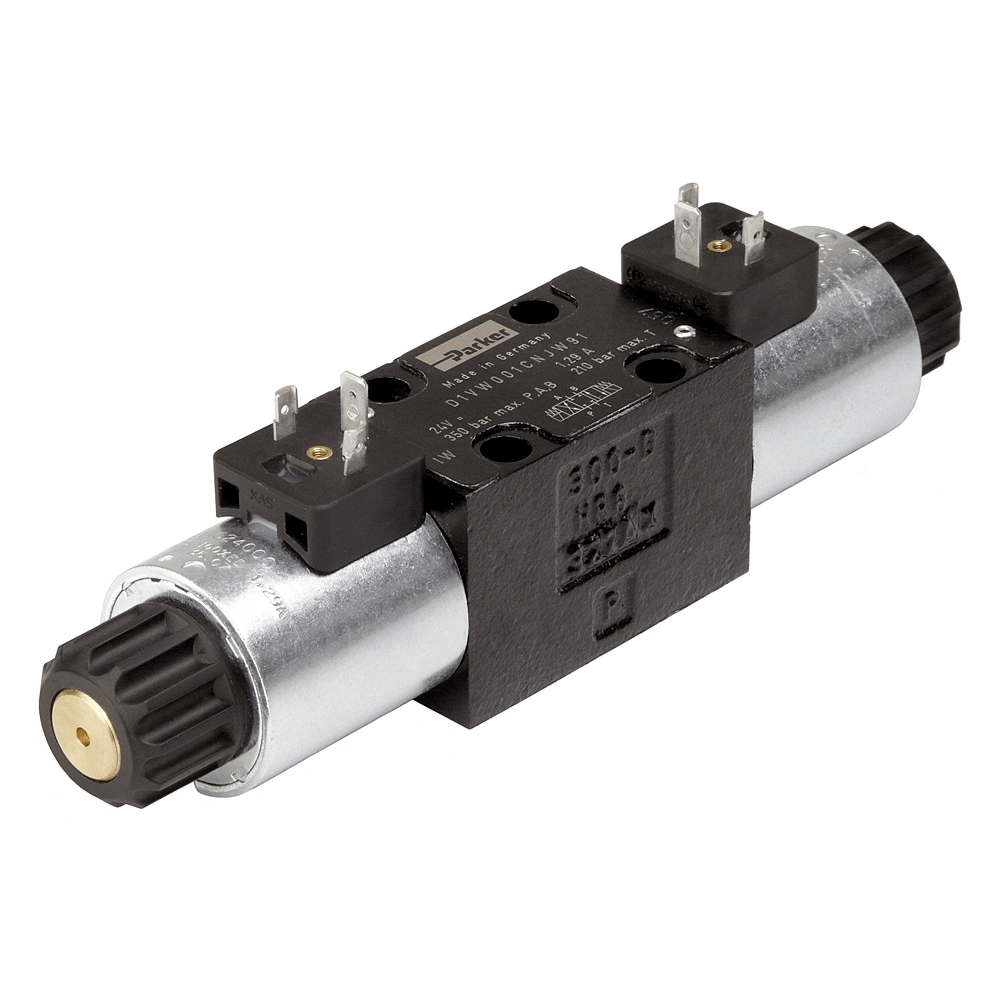

Parker D1VW009CNJW91 D1VW Series Directional Control Valve, 3/4-Way, Solenoid Controlled, NFPA D03

$200.00 USD
$200.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview

The Parker D1VW011CNJW91 directional control valve is a high-performance, direct operated, wet armature solenoid controlled valve for hydraulic systems. It is available in both 3 and 4-way models and conforms to NFPA D03, CETOP 3 mounting patterns.

Key Features

  • Soft shift available
  • 19 standard spool styles
  • Proportional spools
  • DC surge suppression
  • Eight electrical connection options
  • Explosion proof, CSA approved

Specifications

Mounting Pattern NFPA D03, CETOP 3, NG 6
Maximum Pressure 345 Bar (5000 PSI)
Leakage Rates 4.9 cc/min @ 69 Bar (1000 PSI)
Response Time 32 ms @ 345 Bar (5000 PSI)
Seal Material Nitrile, Fluorocarbon
Solenoid Type AC/DC with options for surge suppression
View full details
