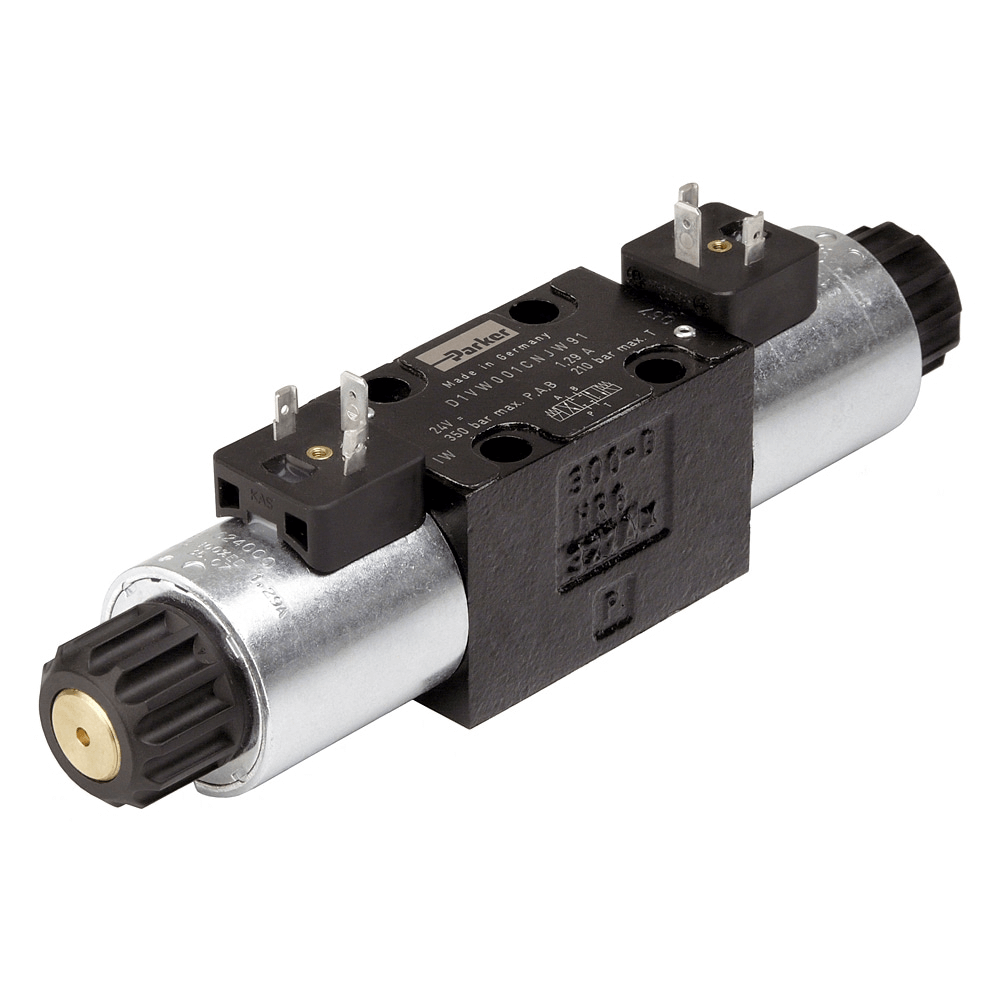

Parker D1VW006CNJW91 D1VW Series Directional Control Valve, 3/4-Way, Solenoid Controlled, NFPA D03
Regular price
$200.00 USD
Regular price
Sale price
$200.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Parker D1VW006CNJW91 directional control valve is a high-performance, direct operated, wet armature solenoid controlled valve for hydraulic systems. It is available in both 3 and 4-way models and conforms to NFPA D03, CETOP 3 mounting patterns.
Key Features
- Soft shift available
- 19 standard spool styles
- Proportional spools
- DC surge suppression
- Eight electrical connection options
- Explosion proof, CSA approved
Specifications
| Mounting Pattern | NFPA D03, CETOP 3, NG 6 |
| Maximum Pressure | 345 Bar (5000 PSI) |
| Leakage Rates | 4.9 cc/min @ 69 Bar (1000 PSI) |
| Response Time | 32 ms @ 345 Bar (5000 PSI) |
| Seal Material | Nitrile, Fluorocarbon |
| Solenoid Type | AC/DC with options for surge suppression |
