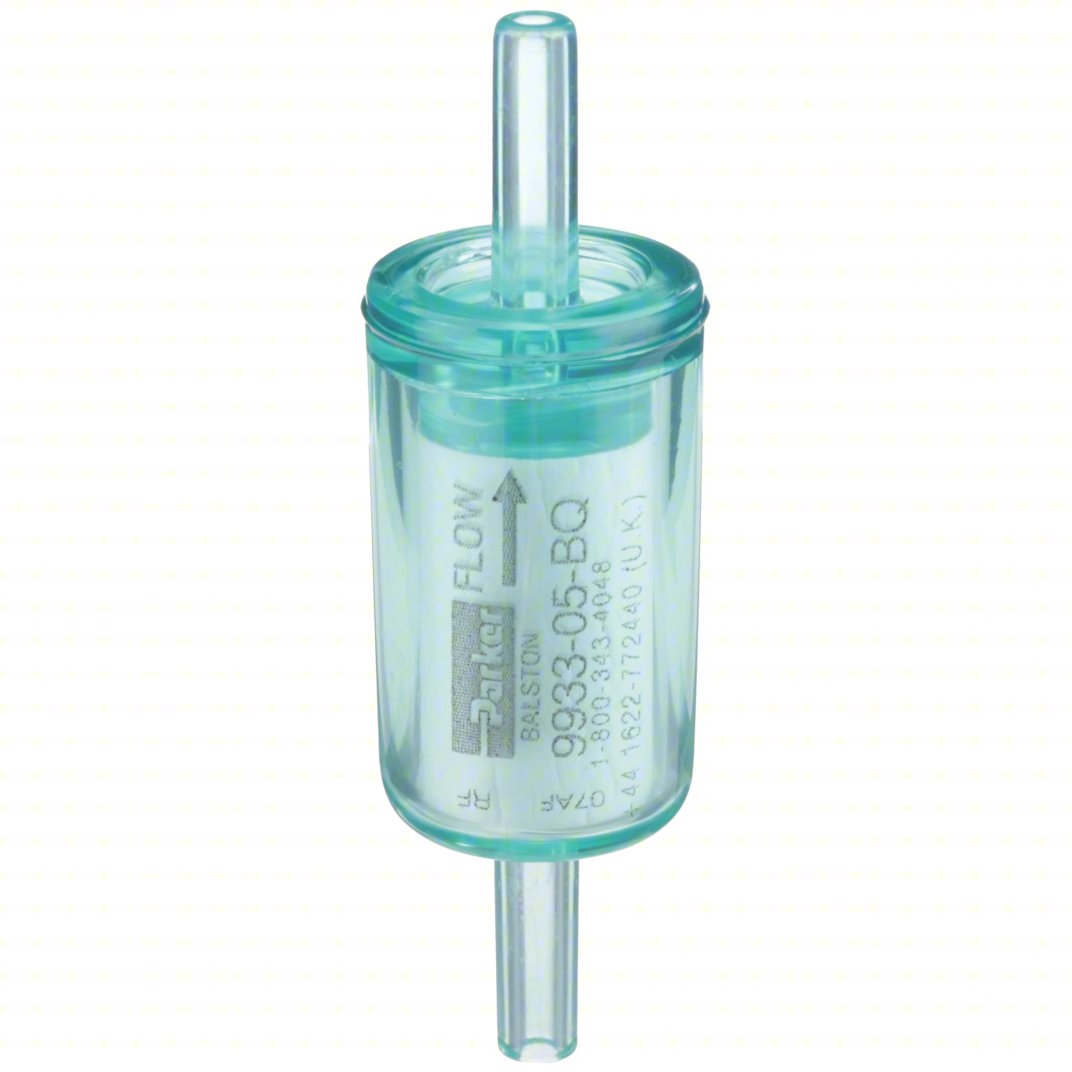

Parker 9933-05-BQ Filter Element for Gas Detectors

Product Specification – Parker 9933-05-BQ Disposable Filter Unit

Manufacturer

• Parker Hannifin

Model

• 9933-05-BQ

General Description

• Single-use, in-line gas/liquid filter with integrated polypropylene bowl and nitrile (Buna-N) bowl guard

• Microporous PTFE filter element

Porting

• Inlet/Outlet: 1/2″ NPTF (female)

Flow Capacity

• 70 scfm (at 100 psig, clean element)

Filtration Performance

• Nominal rating: 0.01 µm

• Efficiency: ≥ 99.9999% at rated micron

Operating Parameters

• Maximum pressure: 150 psi (10.3 bar)

• Temperature range: 32 to 180 °F (0 to 82 °C)

Materials of Construction

• Housing & bowl: Glass-reinforced polypropylene

• Bowl guard & seals: Buna-N (nitrile)

• Filter media: PTFE microporous membrane

• End caps: Polypropylene

Dimensions & Weight

• Height: 7.8″ (198 mm)

• Width (hex): 2.4″ (61 mm)

• Weight (empty): 0.4 lb (0.18 kg)

Applications

• Point-of-use purification of compressed air, inert gases, process solvents and corrosive streams

• Semiconductor, laboratory and analytical instrument supply lines
