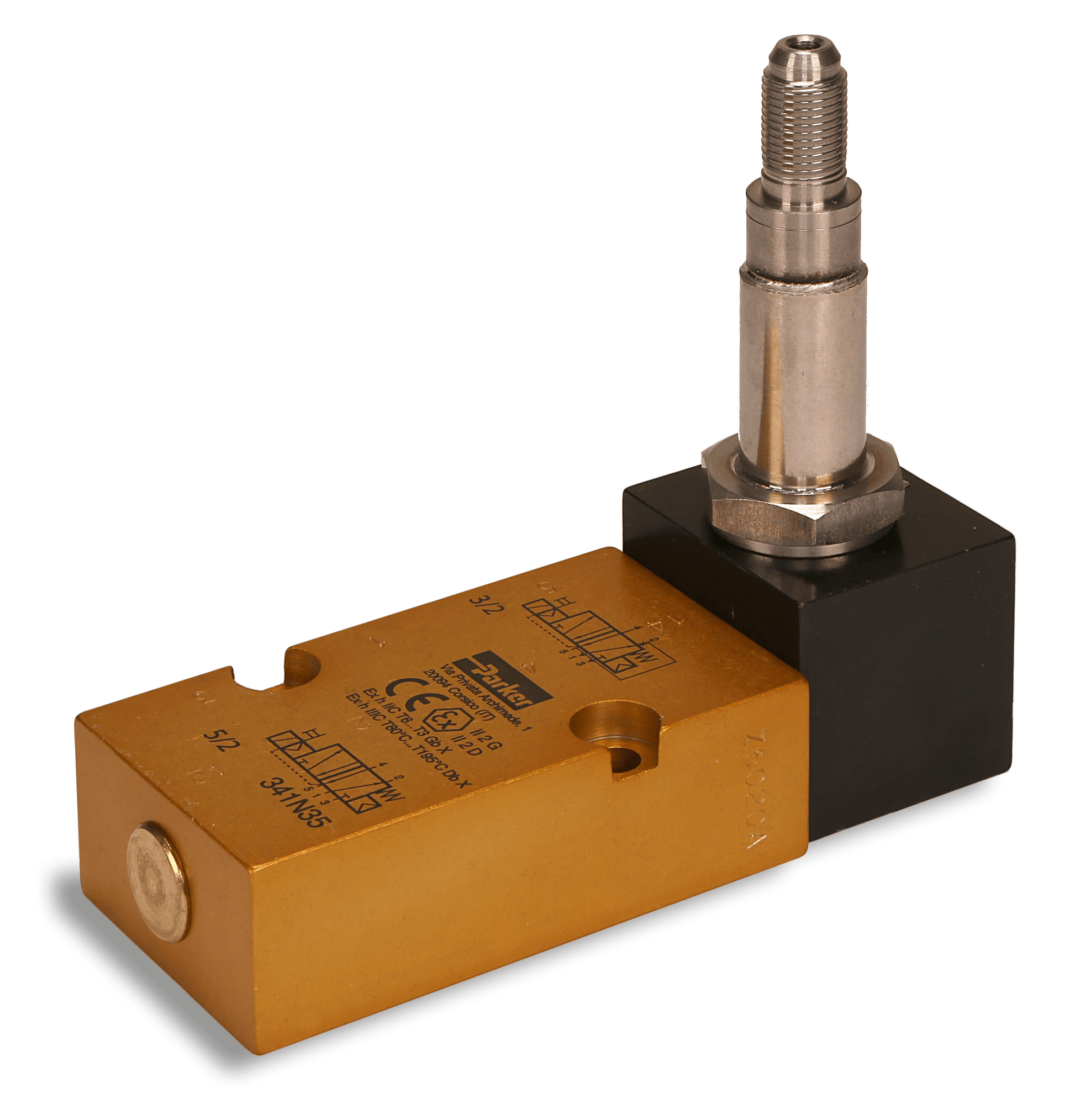

Parker 341N35 "High Flow" NAMUR Solenoid Valve, 3/2 - 5/2 Way, 1/4" G Port
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Parker 341N35 "High Flow" NAMUR Series Solenoid Valve is designed for process applications, featuring a versatile 3/2 - 5/2 way configuration with a 1/4" G port size. Made from anodized aluminum, this valve ensures durability and is suitable for use with dry or lubricated air.
Key Features
- 3/2 - 5/2 way versatile configuration
- 1/4" G port designed for NAMUR applications
- Constructed from anodized aluminum for durability
- Operates with dry or lubricated air
Specifications
| Port Size | 1/4" G |
| Function | Spring & air return |
| Maximum Fluid Temperature | 50 °C |
| Actuation Type | Solenoid Operated |
| Flow Coefficient 1 | 1200 l/min |
| Valve Type | 3/2 - 5/2 Way |
| Port Type | Namur |
| Body Material | Anodized Aluminum |
| Media | Dry or Lubricated Air |
| Orifice Size | 7 mm |
| Minimum Operating Pressure | 2.5 bar |
| Maximum Operating Pressure | 10 bar AC/DC |
| Minimum Fluid Temperature | -20 °C |
| Seal Material | NBR |
| Specifications Met | Manual Override - Perpendicular Operator |
