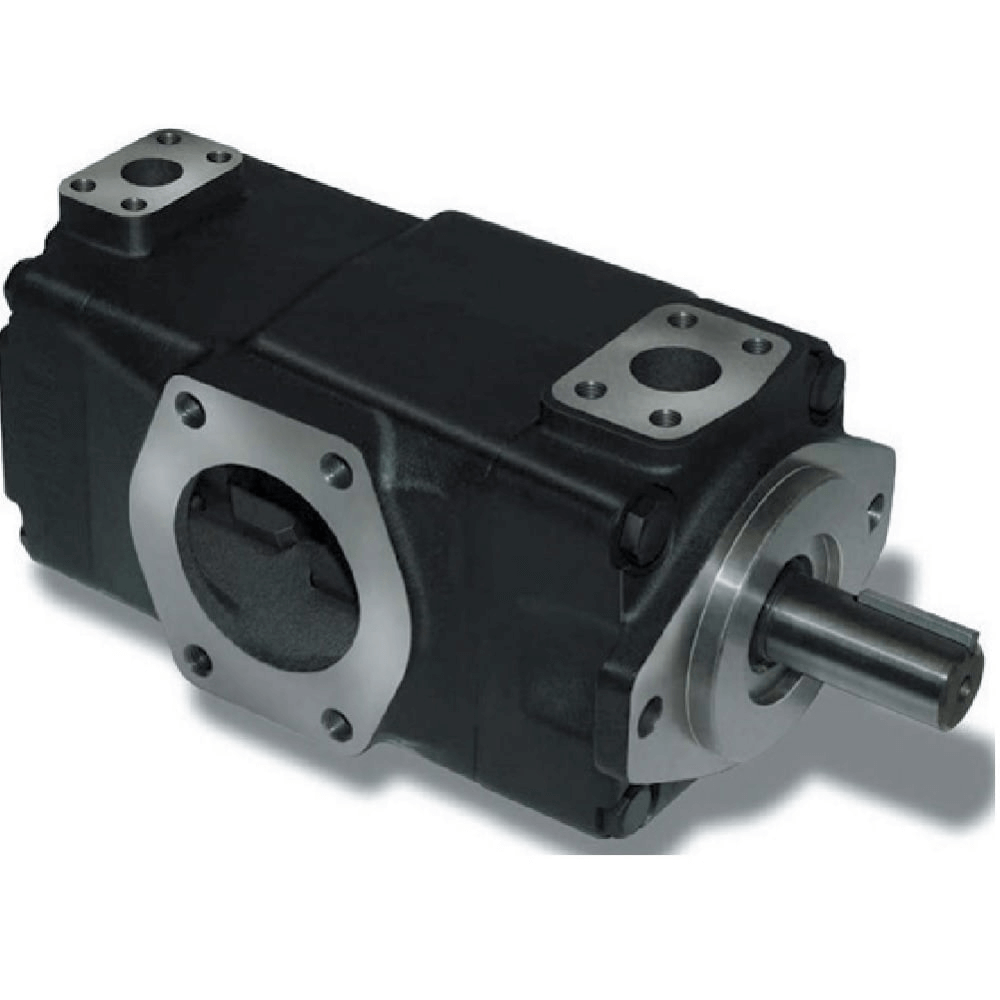

Parker 054-50107-000S Series T7 Variable Speed Vane Pump, Clockwise Rotation, SAE J744-SAE C Flange
Regular price
$2,000.00 USD
Regular price
Sale price
$2,000.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Parker Series T7 Variable Speed Vane Pump, Part # 054-50107-000S, is engineered for efficient performance with a clockwise rotation. Ideal for industrial use, it features a robust SAE J744-SAE C flange and a keyed (SAE C) shaft type.
Key Features
- Variable Speed Vane Pump
- Clockwise Rotation
- SAE J744-SAE C Flange Size
- Keyed (SAE C) Shaft Type
- BUNA N Material Seals
Specifications
| Part Number | 054-50107-000S |
| Pump Type | T7DDS E31 E24 1R00 A1M0 |
| Rotation | Clockwise |
| Additional Options | NA |
| Outlet Port Displacement 2 (cc/rev) | 81.1 |
| Outlet Port Displacement 1 (cc/rev) | 99.2 |
| Flange Size | SAE J744-SAE C 6bolts |
| Outlet Port Connection 1 | 1.1/4" 4 bolts SAE flanges J518 with Metric threads |
| Material - Seals | BUNA N |
| Port Location | 00 |
| Shaft Type | keyed (SAE C) |
| Port Connection Inlet | 4" 4 bolts SAE flanges J518 with Metric threads |
| Outlet Port Connection 2 | 1.1/4" 4 bolts SAE flanges J518 with Metric threads |
