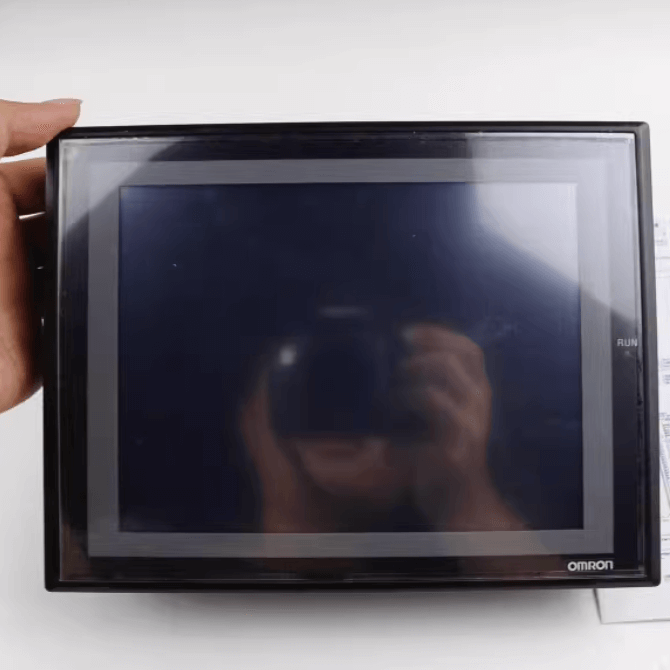

OMRON NS10-TV01-V2 NS Series Programmable Terminal, 10.4-inch TFT Color LCD, Built-in Ethernet, 640x480 VGA

The OMRON NS10-TV01-V2 is a high-performance 10.4-inch Programmable Terminal (HMI) from the advanced NS Series, engineered to provide comprehensive control and visualization for industrial automation environments. This model is equipped with a high-definition TFT color LCD featuring VGA (640 x 480) resolution and support for up to 32,768 colors, ensuring intricate process data and graphical objects are rendered with exceptional clarity and depth.

A key feature of the NS10-TV01-V2 is its integrated 10Base-T/100Base-TX Ethernet port, which facilitates seamless network integration for SAP communication, data logging, and remote monitoring. The hardware architecture includes 60 MB of internal screen memory, dual RS-232C serial ports, and both USB Master and Slave interfaces for flexible peripheral connectivity and high-speed project transfers. Protected by an IP65F-rated front panel and housed in a sleek ivory casing, this terminal provides a reliable and space-efficient interface for complex machine control applications.
