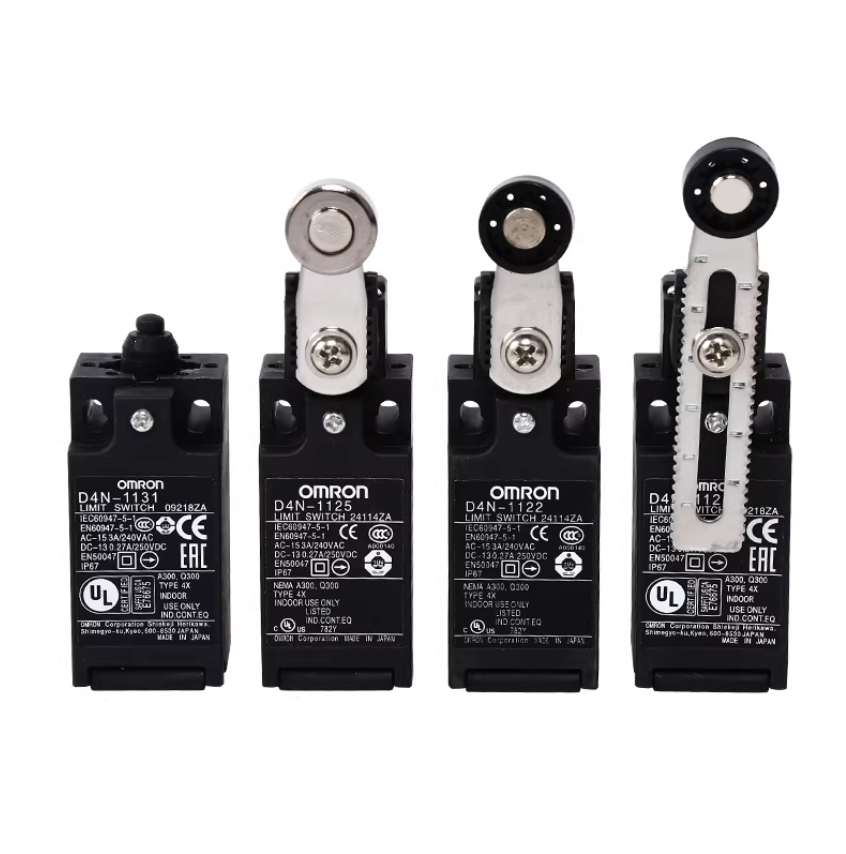

OMRON D4N-4132 Safety Limit Switch, M20 Conduit, 1NC/1NO Snap-Action, Roller Plunger
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The OMRON D4N-4132 Safety Limit Switch offers reliable snap-action performance with a single M20 conduit and a 1NC/1NO contact configuration. Designed with a roller plunger actuator, this switch is ideal for applications requiring precise operation in harsh environments. It supports both general and micro loads with robust protection against mechanical and electrical failures.
| Product ID | D4N-4132 |
| Actuator Type | Roller plunger (Resin roller) |
| Operating Mechanism | Snap action |
| Contact Form | 1NC/1NO |
| Degree of Protection | IP67 |
| Conduit Entry | M20, 1-conduit |
| Load Type | General load/Micro load |
| Ambient Temperature | Operating: -30 to 70 ℃ |
| Ambient Humidity | 95 %RH max. |
| Permissible Operating Frequency | 30 operations / min max. |
| Contact Resistance | 25 mΩ max. |
| Insulation Resistance | 100 MΩ min. |
| Impulse Withstand Voltage | 2.5 kV / 4 kV / 6 kV |
| Durability (Mechanical) | 15,000,000 operations min. |
| Vibration Resistance | 10 to 55 Hz, 0.75 mm |
| Shock Resistance | 1000 m/s² / 300 m/s² |
| Classification of Protection | Class II (Double insulation) |
| Operating Force (OF) | 6.5 N max. |
| Release Force (RF) | 1.5 N min. |
| Pre-Travel (PT) | 2 mm max. |
| Movement Differential (MD) | 1 mm max. |
| Over-Travel (OT) | 4 mm min. |
| Operating Position (OP) | 28.6±0.8 mm |
| Total Travel (TT) | 6 mm |
| Direct Opening Force | 20 N min. |
| Direct Opening Travel | 3.2 mm min. |
