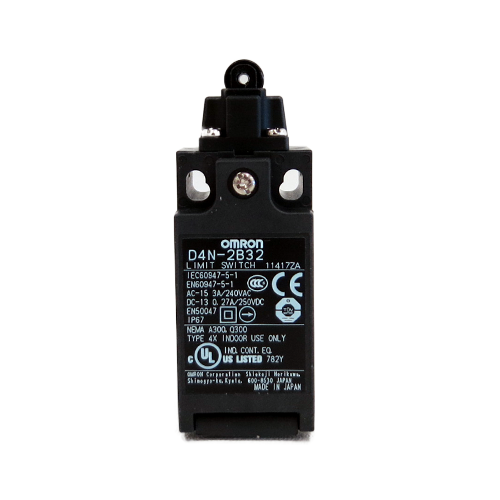

OMRON D4N-2B32 Safety Limit Switch, 2NC, IP67 Protection, Roller Plunger
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The OMRON D4N-2B32 safety limit switch is designed with a roller plunger actuator featuring a slow-action mechanism. Ideal for general and micro-load applications, it offers robust performance with IP67 protection, suitable for rigorous environments.
Key Features:
- Roller plunger with resin construction
- Slow-action mechanism for reliable operation
- 2NC contact configuration
- IP67 rated for dust and water protection
- G1/2 conduit for easy installation
- High durability with 15 million mechanical operations
| Product ID | D4N-2B32 |
| Operating Mechanism | Slow action |
| Contact Form | 2NC |
| Degree of Protection | IP67 |
| Operating Temperature | -30 to 70 ℃ |
| Ambient Humidity | 95% RH max. |
| Operating Frequency | 30 operations/min max. |
| Conduit Size | G1/2 |
| Durability | 15,000,000 operations min. |
| Vibration Resistance | 10 to 55 Hz, 0.75 mm single amplitude |
| Shock Resistance | Destruction: 1000 m/s², Malfunction: 300 m/s² |
