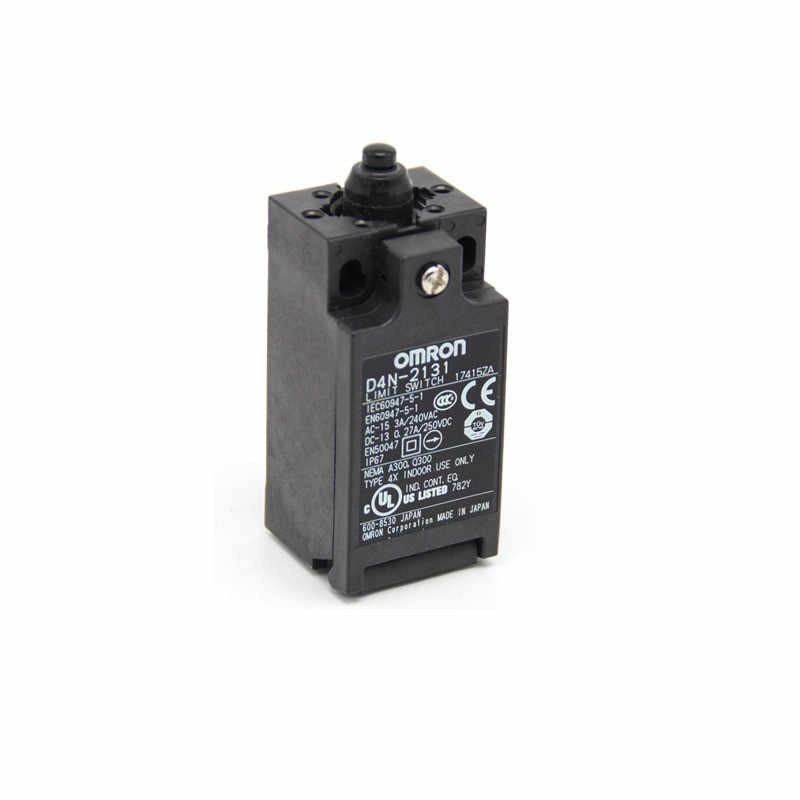

OMRON D4N-2131 Safety Limit Switch, 1NC/1NO, IP67 Protection, Plunger

$25.00 USD
$25.00 USD
Sale Sold out
Shipping calculated at checkout.
Pack Size

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

The OMRON D4N-2131 safety limit switch features a plunger actuator with a snap-action mechanism. It is built for general and micro-load applications, ensuring high reliability and IP67 protection in industrial environments.

Key Features:

  • Plunger actuator with resin construction
  • Snap-action mechanism for quick response
  • 1NC/1NO contact configuration
  • IP67 rated for dust and water protection
  • G1/2 conduit for streamlined installation
  • Durable construction supports 15 million operations
Product ID D4N-2131
Operating Mechanism Snap action
Contact Form 1NC/1NO
Degree of Protection IP67
Operating Temperature -30 to 70 ℃
Ambient Humidity 95% RH max.
Operating Frequency 30 operations/min max.
Conduit Size G1/2
Durability 15,000,000 operations min.
Vibration Resistance 10 to 55 Hz, 0.75 mm single amplitude
Shock Resistance Destruction: 1000 m/s², Malfunction: 300 m/s²
