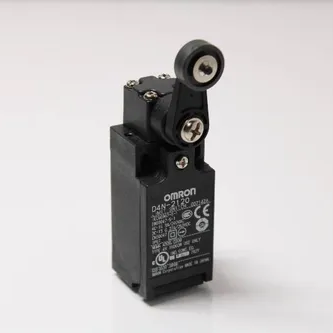

OMRON D4N-2120 Safety Limit Switch, 1NC/1NO, IP67 Protection, Roller Lever
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The OMRON D4N-2120 safety limit switch is equipped with a roller lever actuator, offering a reliable snap-action mechanism. It is designed for both general and micro load applications, providing robust protection in industrial environments.
Key Features:
- Roller lever with resin construction
- Snap-action mechanism for effective performance
- 1NC/1NO contact configuration
- IP67 rated for superior dust and water resistance
- G1/2 conduit for easy integration
- Durable build for long-lasting reliability
| Product ID | D4N-2120 |
| Operating Mechanism | Snap action |
| Contact Form | 1NC/1NO |
| Degree of Protection | IP67 |
| Operating Temperature | -30 to 70 ℃ |
| Ambient Humidity | 95% RH max. |
| Operating Frequency | 30 operations/min max. |
| Conduit Size | G1/2 |
| Durability | 15,000,000 operations min. |
| Vibration Resistance | 10 to 55 Hz, 0.75 mm single amplitude |
| Shock Resistance | Destruction: 1000 m/s², Malfunction: 300 m/s² |
