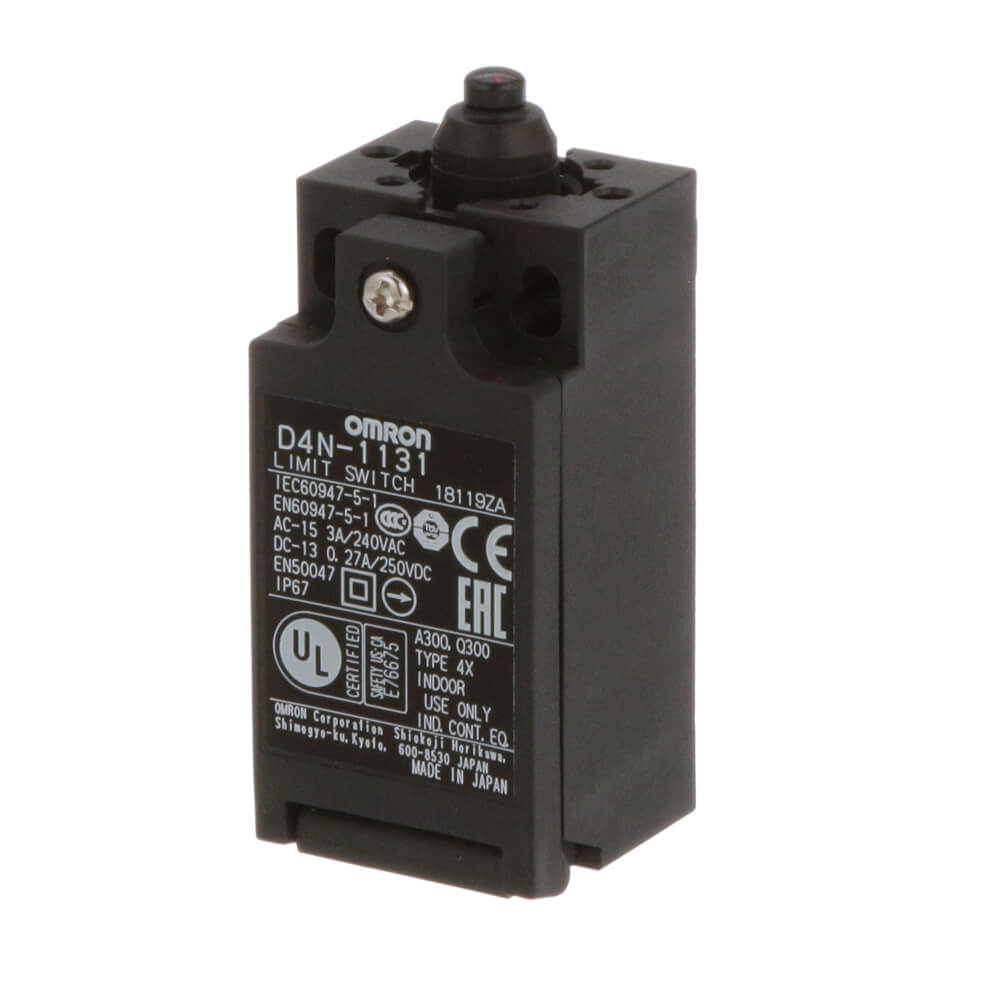

OMRON D4N-1131 Safety Limit Switch, 1NC/1NO, IP67 Protection, Plunger Actuator
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The OMRON D4N-1131 is a safety limit switch with a plunger actuator and snap-action mechanism, designed to deliver reliable performance in demanding conditions. This switch features robust construction for enhanced durability.
Key Features:
- Plunger actuator with a 6 mm diameter resin plunger
- Snap-action operating mechanism
- 1NC/1NO contact form suitable for diverse applications
- IP67 rated for excellent protection in harsh environments
- PG13.5 conduit connection
- Supports general and micro load applications
| Product ID | D4N-1131 |
| Operating Mechanism | Snap action |
| Contact Form | 1NC/1NO |
| Degree of Protection | IP67 |
| Operating Temperature | -30 to 70 ℃ |
| Ambient Humidity | 95% RH max. |
| Operating Frequency | 30 operations/min max. |
| Conduit Size | PG13.5 |
| Durability | 15,000,000 operations min. |
| Vibration Resistance | 10 to 55 Hz, 0.75 mm single amplitude |
| Shock Resistance | Destruction: 1000 m/s², Malfunction: 300 m/s² |
