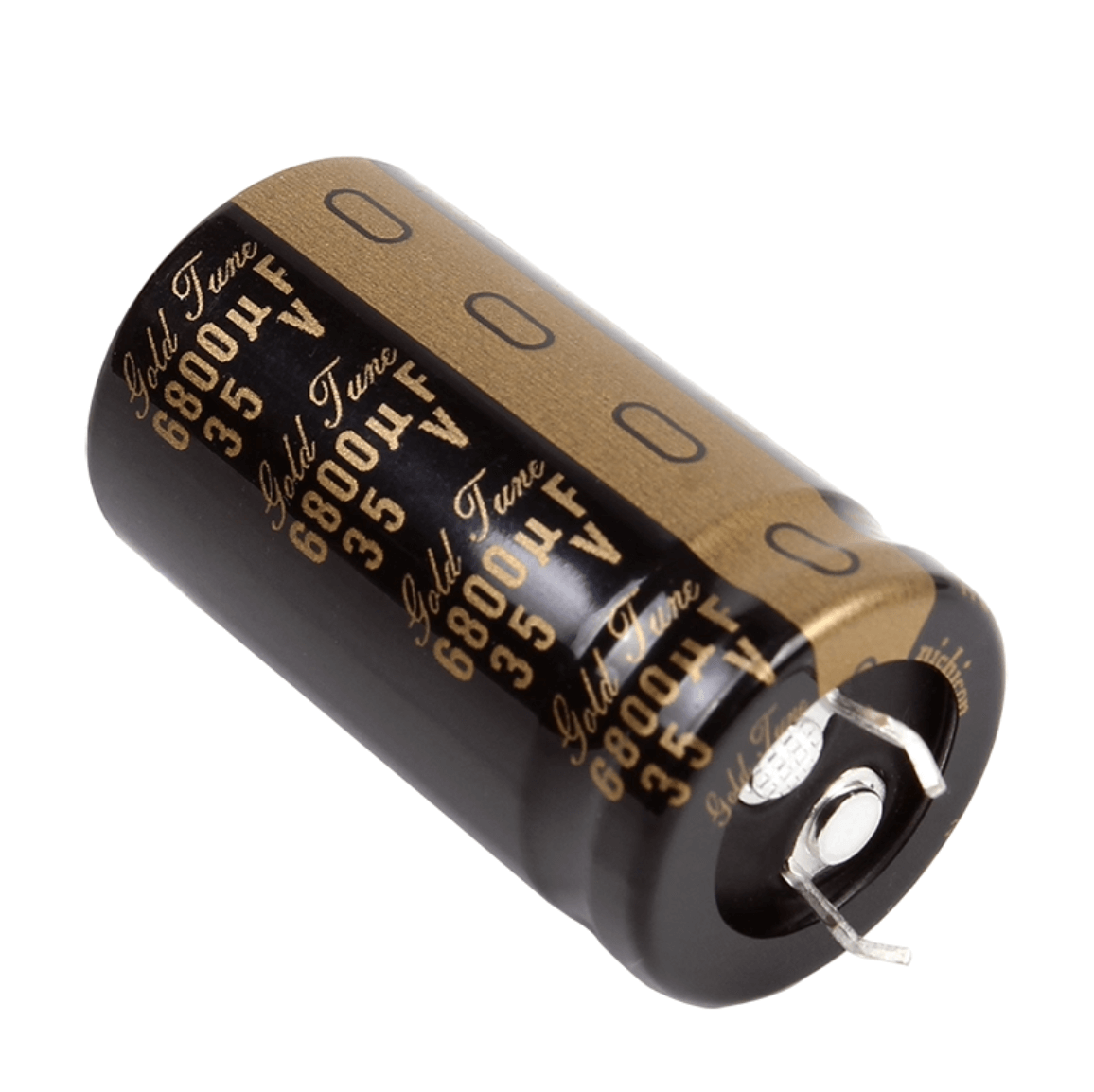

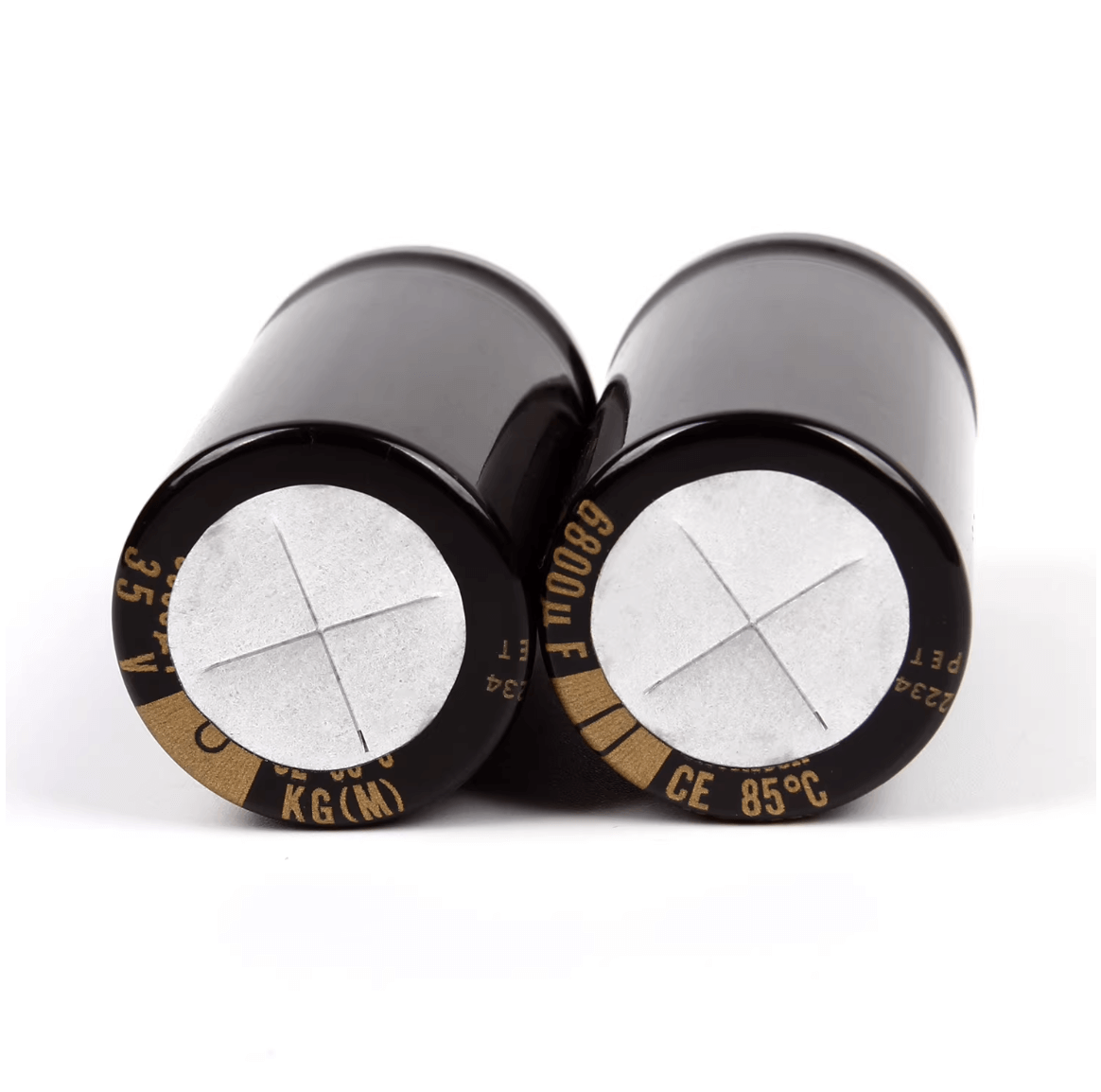

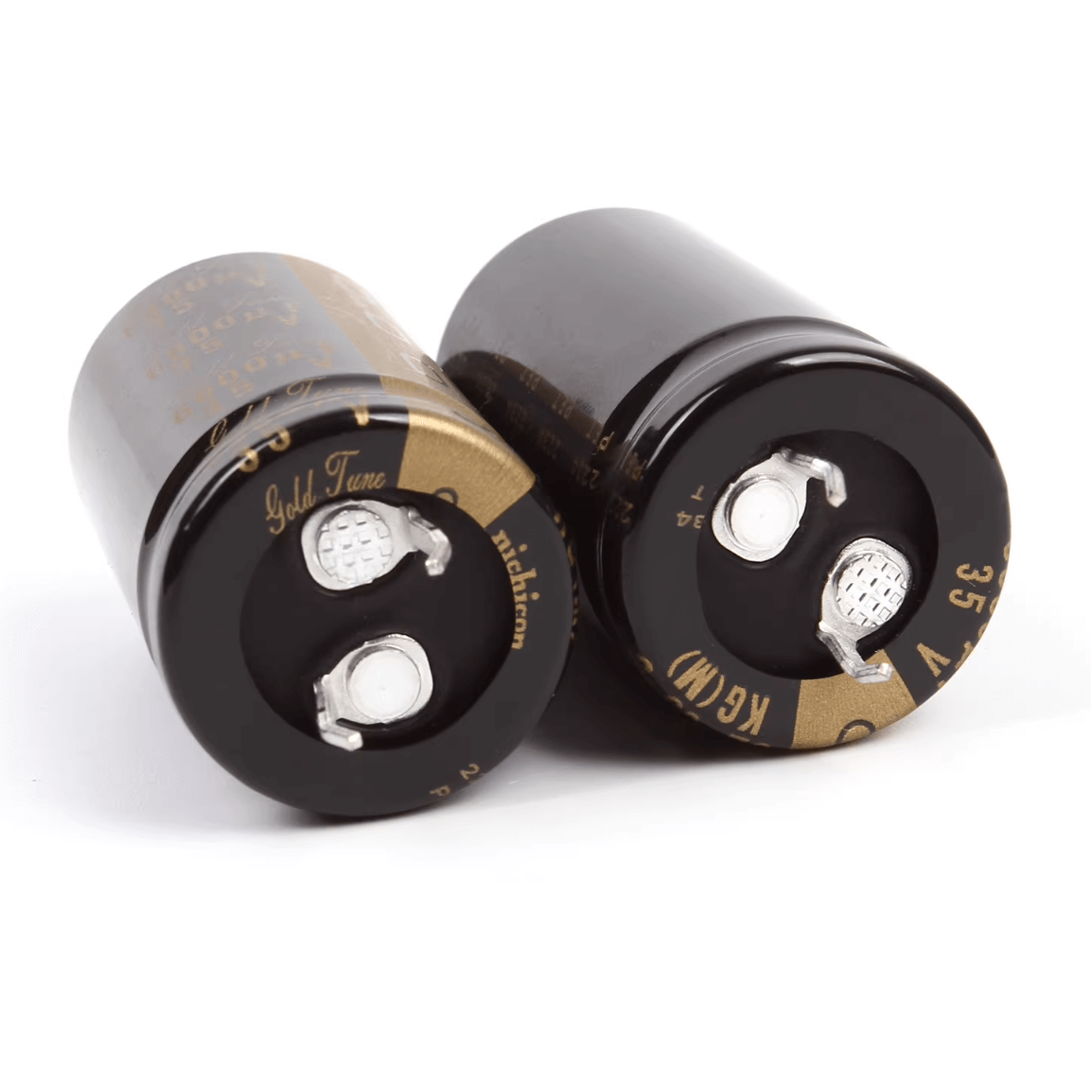

Nichicon LKG1V682MESZAK Gold Tune Audio Grade Capacitor, 6800uF 35V, Snap-In, 22x40mm - Pack of 5

The Nichicon LKG1V682MESZAK is a high-capacity "Gold Tune" series aluminum electrolytic capacitor, specifically engineered for the demanding requirements of high-fidelity audio power supplies. Part of Nichicon's specialized LKG lineup, this component is designed to provide massive energy storage and rapid current delivery while maintaining the sonic purity required for high-end audio playback. Its construction focuses on minimizing mechanical resonance and electrical noise to ensure a clean, transparent audio signal.

Key Features

• Gold Tune Acoustic Signature: Optimized for audiophile-grade performance, delivering a rich, detailed sound with exceptional low-frequency control.
• High Current Capability: With a ripple current rating of 2.6 A, this capacitor is perfectly suited for the power stages of integrated amplifiers and multi-channel receivers.
• Vibration Resistant Design: Built with a specialized internal structure that mitigates mechanical vibrations, which is critical for preventing microphonic effects in sensitive audio circuits.
• High Capacitance Density: Provides a substantial 6800 µF energy reservoir within a compact 22mm x 40mm snap-in form factor.
• Reliable Industrial Construction: Designed for long-term stability with a thermal range of -40°C to +85°C and a robust 2-pin snap-in termination for secure PCB mounting.

Technical Specifications

• Manufacturer: Nichicon
• Series: LKG Gold Tune (Type I)
• Capacitance: 6800 µF
• Voltage Rating: 35V DC
• Tolerance: ±20% (120Hz, +20°C)
• Operating Temperature Range: -40°C to +85°C
• Ripple Current: 2.6 A (120Hz, +85°C)
• Leakage Current: 1.46 mA (after 5 minutes)
• Dissipation Factor (tanδ): 0.30
• Body Dimensions: 22 mm Diameter x 40 mm Length
• Lead Spacing: 10 mm
• Termination Style: Snap-In (2-Pin)
• Life Expectancy: 1000 Hours at 85°C
• Package Quantity: 5 Pieces
