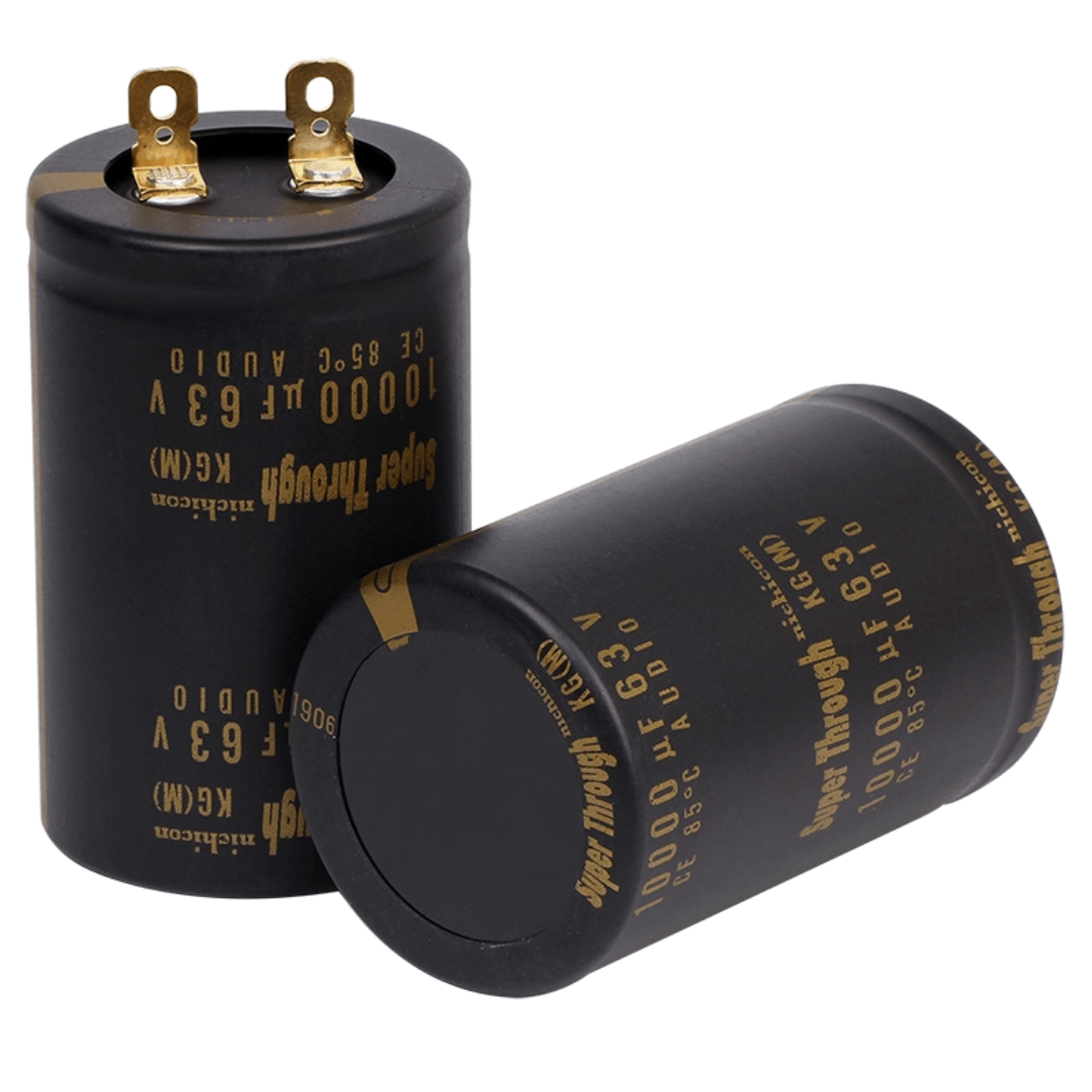

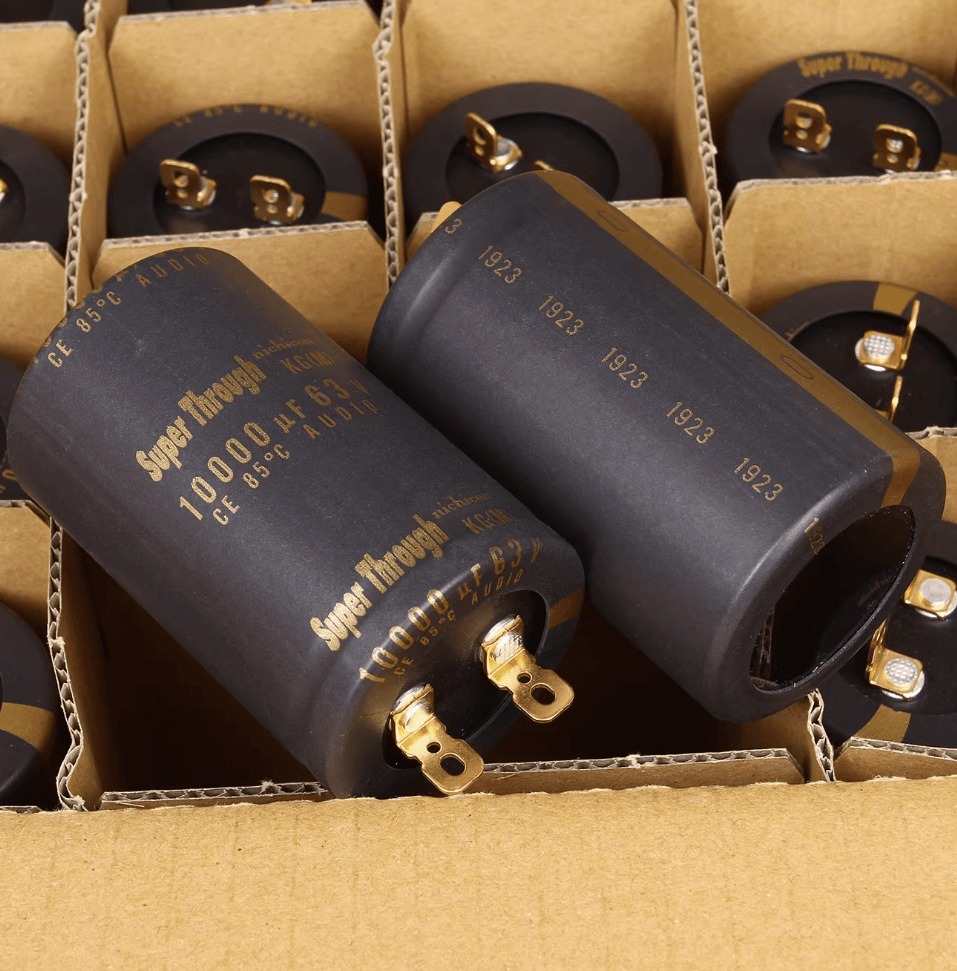

Nichicon LKG1J103MKZS Audio Grade Capacitor, 10000uF 63V, Type III Super Through, 50x80mm Solder Lug - Pack of 5

The Nichicon LKG1J103MKZS is a flagship "Super Through" Type III series aluminum electrolytic capacitor, representing the pinnacle of Nichicon’s audio-grade engineering. This component is designed exclusively for high-end audiophile equipment and professional power amplifiers. The Type III series utilizes high-purity materials and a specialized construction to achieve the lowest possible ESR and maximum transparency, providing an unparalleled acoustic experience with deep, controlled bass and crystalline high frequencies.

Key Features

• Gold Tune / Super Through Type III: The highest grade in the LKG lineup, specifically tuned to eliminate sonic coloration and provide a wide dynamic range.
• High Power Capacity: Boasting a massive 10000 µF capacitance and a 63V rating, it serves as an ideal energy reservoir for high-output power stages.
• Exceptional Ripple Current Handling: Rated for 6.2 A, ensuring stable performance and low noise even under extreme load demands from transient audio peaks.
• Heavy-Duty Solder Lug Termination: Features robust solder lug terminals designed for high-current transfer and secure mechanical mounting in large-scale chassis.
• Premium Build Quality: Large-format 50x80mm construction allows for superior heat dissipation and internal vibration damping, essential for maintaining signal integrity.

Technical Specifications

• Manufacturer: Nichicon
• Series: LKG (Type III - Super Through)
• Capacitance: 10000 µF
• Voltage Rating: 63V DC
• Tolerance: ±20% (120Hz, +20°C)
• Operating Temperature Range: -40°C to +85°C
• Ripple Current: 6.2 A (120Hz, +85°C)
• Body Dimensions: 50 mm Diameter x 80 mm Length
• Termination Style: Solder Lug
• Product Type: Audio Grade Electrolytic Capacitor
• Life Expectancy: 1000 Hours at 85°C
• Package Quantity: 5 Pieces
