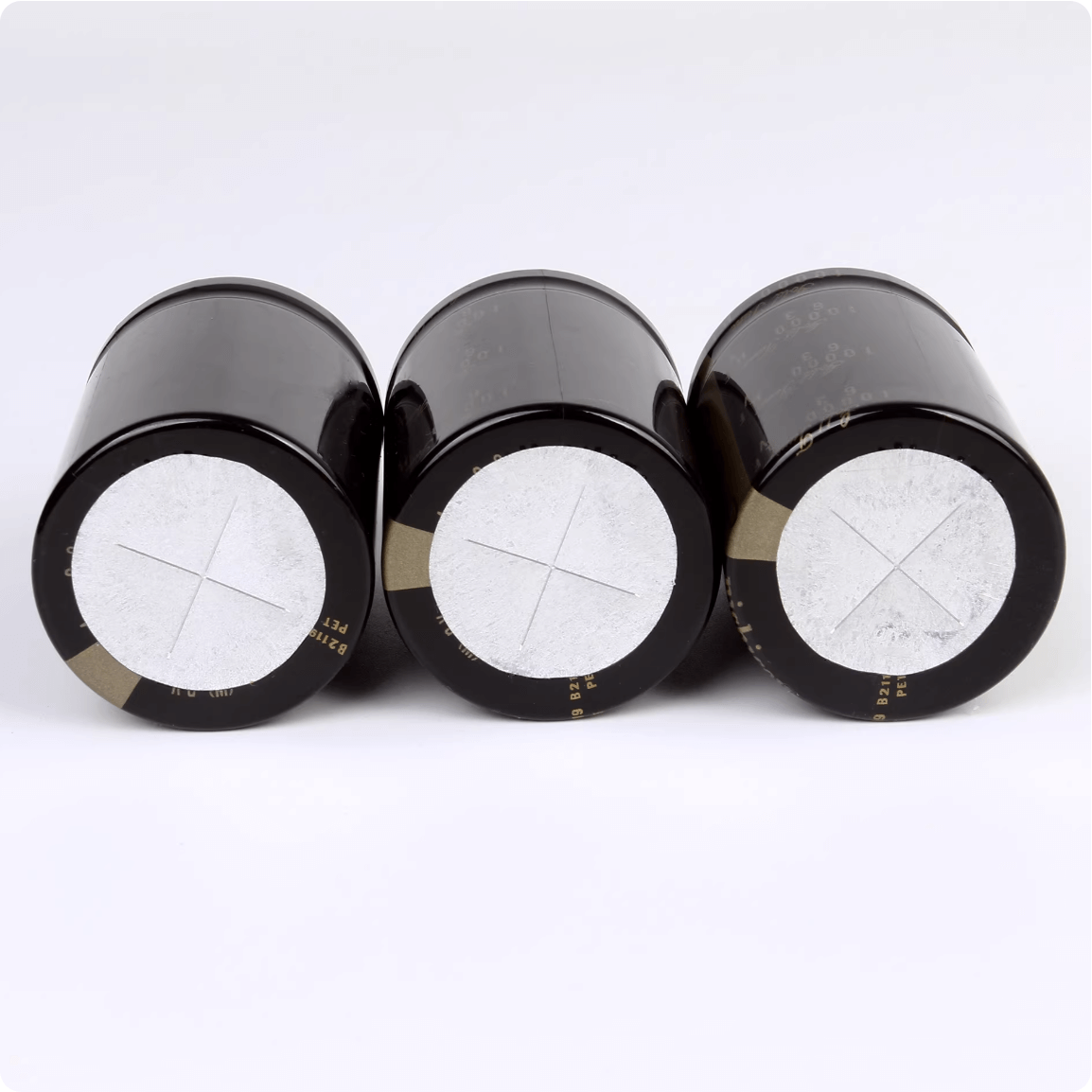

Nichicon LKG1E332MESACK Gold Tune Audio Grade Capacitor, 3300uF 25V, Snap-In, 25x40mm - Pack of 5

The Nichicon LKG1E332MESACK is a high-fidelity "Gold Tune" series aluminum electrolytic capacitor specifically engineered for premium audio applications. As part of Nichicon’s LKG lineup, this snap-in component is designed to deliver superior sound transparency and a rich tonal balance. It is a preferred choice for audiophile-grade power supplies, offering low internal resistance and high chemical stability to ensure pure signal reproduction in high-end amplifiers and sound systems.

Key Features

• Gold Tune (Audio Grade): Developed specifically for acoustic excellence, utilizing high-purity materials to minimize distortion and enhance low-frequency performance.
• Stable Power Delivery: With a capacitance of 3300uF and a 25V rating, it provides a reliable current reservoir for sensitive audio circuitry.
• High Ripple Current Capability: Rated for 2.45 A of ripple current, ensuring the capacitor can handle the rapid surges required for dynamic audio peaks.
• Secure Snap-In Installation: The 10mm lead spacing snap-in terminals provide a stable mechanical mount, reducing microphonic effects caused by vibration.
• Precision Engineering: Housed in a compact 25mm x 40mm cylindrical can, meeting strict high-density assembly requirements without compromising on acoustic capacity.

Technical Specifications

• Manufacturer: Nichicon
• Series: LKG Gold Tune (Type I/II/III compatible)
• Capacitance: 3300 µF
• Voltage Rating: 25V DC
• Tolerance: ±20% (120Hz, 20°C)
• Operating Temperature Range: -40°C to +85°C
• Ripple Current: 2.45 A
• Leakage Current: 860 µA (max)
• Body Dimensions: 25 mm Diameter x 40 mm Length
• Lead Spacing: 10 mm
• Mounting Style: Snap-In
• Service Life: 1,000 Hours at +85°C
• Package Quantity: 5 Pieces
