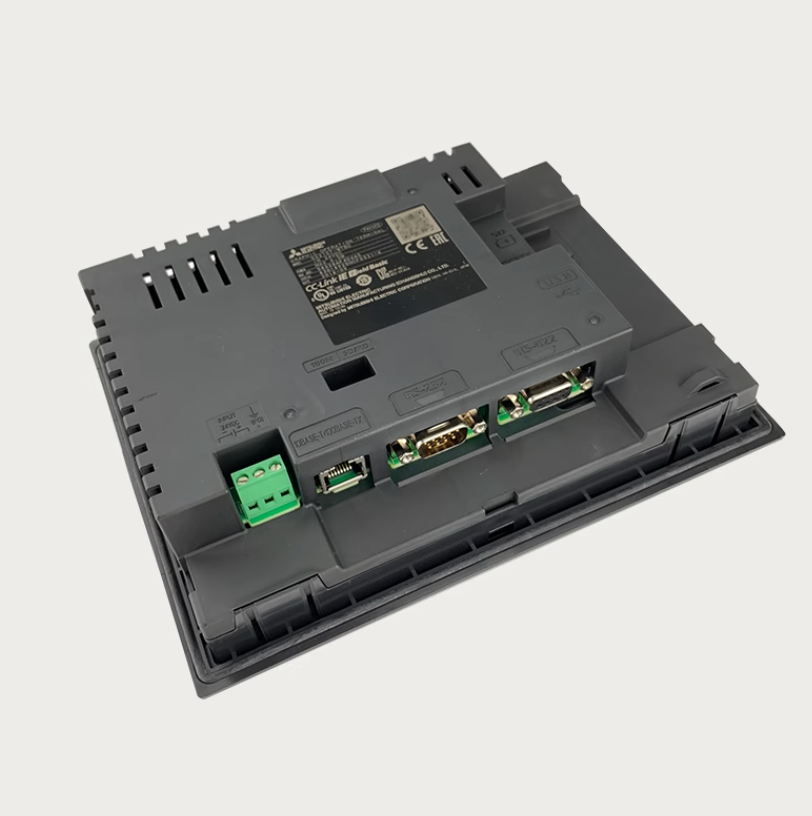

Mitsubishi GT2310-VTBD GT23 GOT2000 HMI, 10.4" TFT LCD, 65536 Colors
Regular price
$700.00 USD
Regular price
Sale price
$700.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mitsubishi GT2310-VTBD from the GOT2000 GT23 Series offers a high-performance HMI with a 10.4" TFT color LCD. It features a vibrant 65,536-color display, 9MB of user memory, and multiple interface options.
| Display Device | TFT color LCD |
| Screen Size | 10.4" |
| Resolution | VGA: 640 x 480 dots |
| Display Size | 211.2 (W) x 158.4 (H) mm |
| Number of Displayed Characters | 16-dot: 40x30; 12-dot: 53x40 |
| Display Color | 65536 colors |
| Brightness Adjustment | 16 levels |
| Registrable Number of Screen | 4096 |
| Backlight | LED (not replaceable) |
| Backlight Life | Approx. 50000 h (25°C, 50% brightness) |
| Backlight Color | White |
| Touch Panel Type | Analog resistive film |
| Key Size | Minimum 2 x 2 dots |
| Simultaneous Press | Not available (Only 1 point can be touched) |
| Life | 1 million touches (≤0.98 N) |
