Mitsubishi Electric GS2110-WTBD-N GOT SIMPLE GS21 10" Wide TFT Color LCD HMI, 800 x 480 WVGA, 24VDC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mitsubishi Electric GS2110-WTBD-N is a robust 10-inch widescreen Human Machine Interface (HMI) part of the GOT SIMPLE GS21 series. It is designed to provide high-clarity visualization and reliable control for industrial automation processes. The unit features a bright TFT color LCD with 65,536 colors and a WVGA 800 x 480 pixel resolution. To ensure maximum connectivity, it includes integrated Ethernet, RS-232, and RS-422/485 serial interfaces, alongside a dedicated SDHC card slot for expanded storage and data logging. With an IP65F-rated front panel and a sleek black bezel, it is built to perform in challenging factory environments while maintaining a professional aesthetic.
| Product ID | GS2110-WTBD-N |
| Series | GOT SIMPLE GS21 |
| Display Device | TFT color LCD |
| Screen Size | 10" Wide |
| Resolution | WVGA: 800 x 480 dots |
| Display Size | 222 (W) x 132.5 (H) mm |
| Display Color | 65,536 colors |
| Brightness Adjustment | 32 levels |
| Backlight | White LED (not replaceable) |
| Touch Panel Type | Analog resistive film |
| Touch Life | 1 million touches or more |
| User Memory Capacity | 15 MB Internal Flash |
| Memory Write Life | 100,000 times |

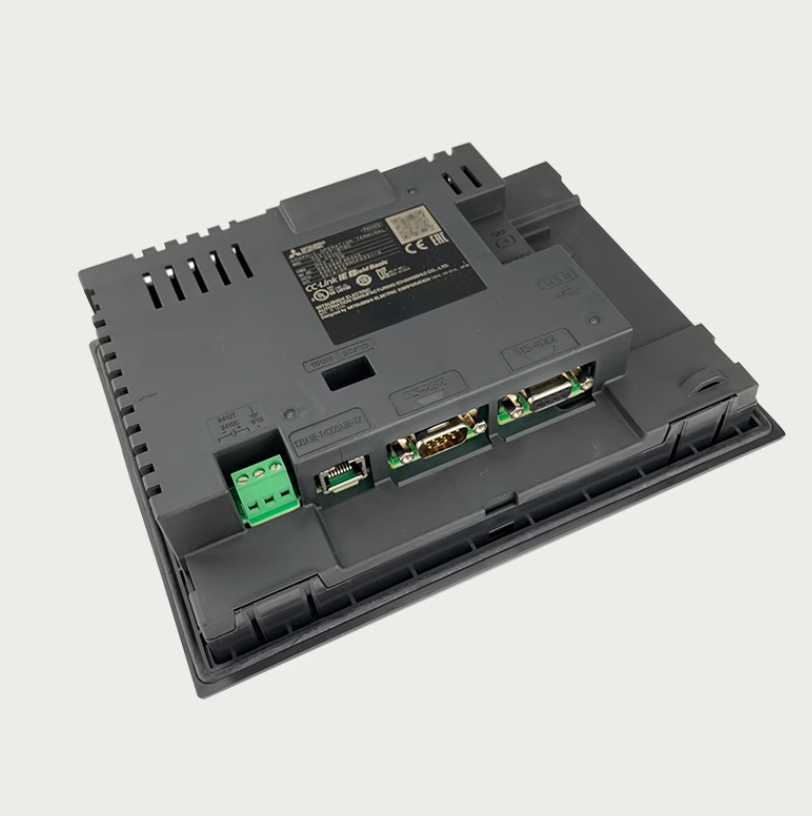

| RS-232 Interface | 1 ch, D-sub 9-pin (male), up to 115,200 bps |
| RS-422/485 Interface | 1 ch, D-sub 9-pin (female), selectable resistor |
| Ethernet | 1 ch, 100BASE-TX/10BASE-T (RJ45) |
| USB Device Port | 1 ch, USB Mini-B (Full-Speed 12 Mbps) |
| SD Memory Card | 1 ch, SDHC compliant (max 32 GB) |
| Buzzer Sound | Single tone (selectable Long/Short/Off) |
| Panel Color | Black |
| Protective Structure | Front: IP65F |
| External Dimensions | 272 (W) x 214 (H) x 56 (D) mm |
| Panel Cut Dimensions | 258 (W) x 200 (H) mm |
| Weight | 1.3 kg |
