Mersen M300069 - PC32UD69V630TF Fuses (3 Pieces)

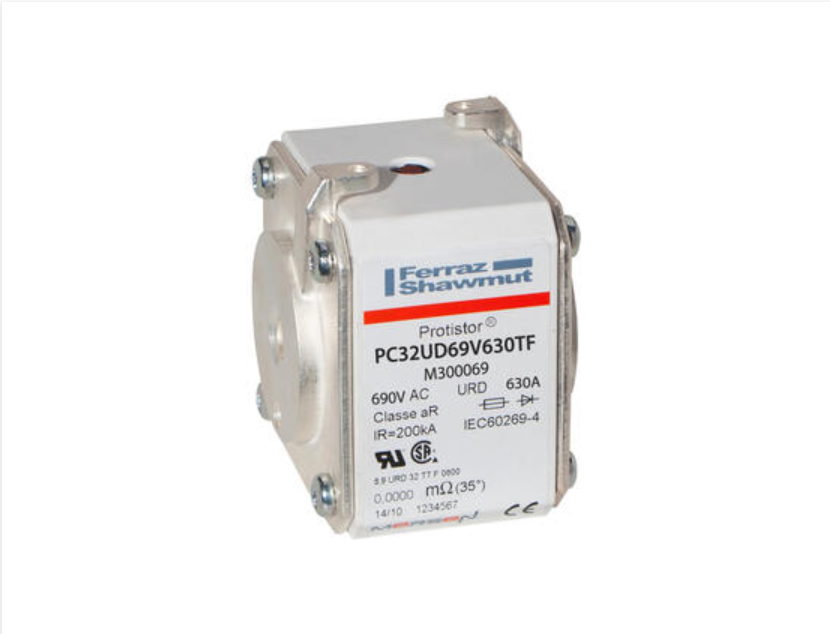

The Mersen Protistor® PC32UD69V630TF (Item M302162) is an ultra-fast acting high-speed square body fuse-link engineered for the demanding protection of power semiconductor devices. This Size 32 aR class fuse is optimized to provide superior short-circuit protection for diodes, thyristors, and IGBT modules in high-power applications such as industrial drives, large-scale power converters, and UPS systems.

Designed with a premium ceramic body and silver-plated contact surfaces, the fuse features internal elements embedded in high-grade solidified sand to ensure stable arcing control and extremely low I²t energy let-through. This model provides a high breaking capacity of 200kA, effectively safeguarding critical electronic components from thermal and magnetic stress during fault conditions. It is equipped with a mechanical striker for visual indication and the option to trigger a remote microswitch. The TTF flush-end M10 metric threaded design ensures a compact, low-resistance bolted connection.

Technical Specifications

• Manufacturer: Mersen
• Catalog Number: PC32UD69V630TF
• Item Number: M302162
• Amperage Rating: 630A
• Voltage Rating: 690V AC (IEC) / 700V AC (UL)
• Interrupting Rating (Breaking Capacity): 200kA at 690V AC
• Operating Class: aR (Ultra-Fast Acting)
• Product Size: 32
• Mounting Type: Flush Ends (M10 Metric Threads)
• Indication System: Integrated Mechanical Striker
• Pre-arcing I²t: 72 kA²s
• Total Clearing I²t at Rated Voltage: 435 kA²s
• Power Dissipation at Rated Current: 100W
• Standards Compliance: IEC 60269-4, UL/CSA Recognized E76491, RoHS Compliant
• Quantity: Pack of 3
