Mersen A15QS4-2 Amp-Trap A15QS High Speed Fuse, 150VAC/150VDC, 4A, Form 101 1.5in x 0.41in - Pack of 10
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview

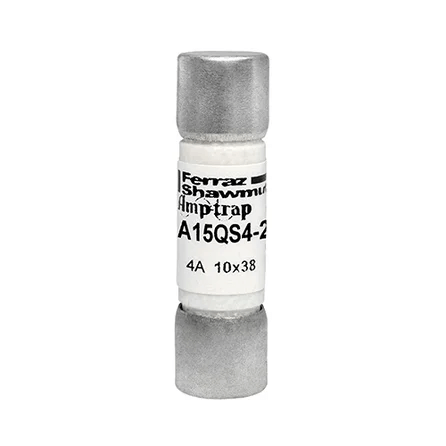

The Mersen A15QS4-2 is a Form 101 high speed ferrule fuse from the Amp-Trap A15QS 150VAC/150VDC series, designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. Its compact 1.5 in x 0.41 in size is ideal where space is limited. Sold as a pack of 10.
Key Features
- High speed, current-limiting performance for semiconductor protection
- Low I²t and controlled arc voltage to reduce stress during fault clearing
- Ferrule (Form 101) construction for easy clip mounting
- Rated 150 VAC / 150 VDC
- RoHS compliant
Applications
- Protection of diodes and other semiconductor devices at 150 VAC/DC
- General semiconductor protection where compact ferrule fuses are required
Specifications
| Item Number | A15QS4-2 |
| Series | Amp-Trap A15QS 150VAC 150VDC |
| Description | High Speed Fuse Amp-Trap A15QS 150VAC 150VDC 4A Ferrule |
| Ampere Rating | 4 A |
| Rated Voltage (AC) | 150 V (UL) |
| Rated Voltage (DC) | 150 V (UL) |
| Interrupting Rating (AC) | 100 kA (per datasheet) |
| Interrupting Rating (DC) | 50 kA (per datasheet) |
| AC or DC | AC/DC; 50/60 Hz |
| Speed / Characteristic | High Speed (semiconductor protection) |
| Mounting | Clip |
| Connection / Terminal | Ferrule (Form 101) |
| Dimensions | Length 1.5 in; Diameter 0.41 in |
| Body / Insulating Material | GMG |
| EAN / UPC | 782001453411 |
| Sell Pack Quantity | 10 pieces |
| Discrepancy Notice | Website lists AC Max I.R. 200 kA; datasheet specifies 100 kA AC and 50 kA DC. Datasheet values are used here. |
