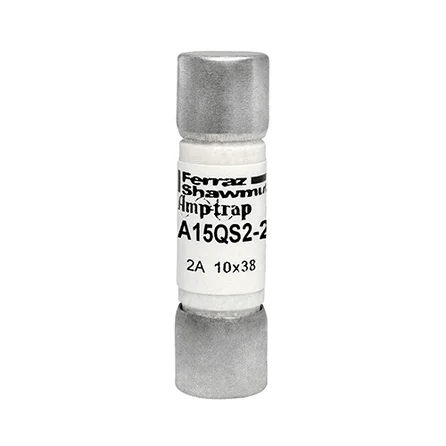

• Ferraz Shawmut General Industrial Fuses Mersen A15QS2-2 Amp-Trap A15QS High Speed Fuse, 150VAC/150VDC, 2A, Form 101 1.5in x 0.41in - Pack of 10
1 1

Mersen A15QS2-2 Amp-Trap A15QS High Speed Fuse, 150VAC/150VDC, 2A, Form 101 1.5in x 0.41in - Pack of 10

$150.00 USD
$150.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview

The Mersen A15QS2-2 is a Form 101 high speed ferrule fuse from the Amp-Trap A15QS 150VAC/150VDC series, designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. Its compact 1.5 in x 0.41 in size is ideal where space is limited. Sold as a pack of 10.

Key Features

  • High speed, current-limiting performance for semiconductor protection
  • Low I²t to minimize damage during short circuits
  • Controlled arc voltage to reduce circuit stress during clearing
  • Ferrule (Form 101) construction for easy clip mounting
  • Rated 150 VAC / 150 VDC

Applications

  • Protection of diodes and other semiconductor devices at 150 VAC/DC
  • General semiconductor protection where compact ferrule fuses are required

Specifications

Brand Mersen
Series Amp-Trap A15QS 150VAC 150VDC
Specific MPN A15QS2-2
Speed / Characteristic High Speed (current limiting)
Rated Voltage (AC) 150 V AC
Rated Voltage (DC) 150 V DC
Ampere Rating 2 A
Interrupting Rating (AC) 100 kA (per datasheet)
Interrupting Rating (DC) 50 kA (per datasheet)
Mounting Clip
Connection / Terminal Ferrule (Form 101)
Dimensions Length 1.50 in (38.1 mm); Diameter 0.41 in (10.4 mm)
Approvals / Standards UL Recognized, UL File E60314; DC tested to UL 198L parameters
Sell Pack Quantity 10 pieces
Discrepancy Notice Web page lists AC interrupting rating as 200 kA; datasheet specifies 100 kA AC and 50 kA DC. Datasheet values are used here.
