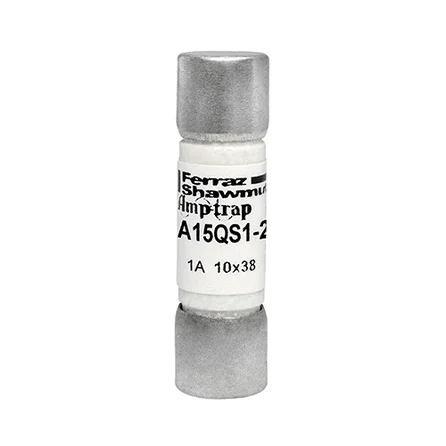

Mersen A15QS1-2 Amp-Trap A15QS 150VAC/150VDC High Speed Fuse, 150VAC/150VDC, 1A, Form 101 1.5in x 0.41in - Pack of 10
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Mersen A15QS1-2 is a Form 101 high speed ferrule fuse from the Amp-Trap A15QS 150VAC/150VDC series, engineered for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. Its compact design is ideal where space is limited. Sold as a pack of 10.
Key Features
- High speed semiconductor protection (Form 101 ferrule)
- Rated 150 VAC / 150 VDC
- AC maximum interrupting rating: 200 kA
- Compact dimensions: 1.5 in length x 0.41 in diameter
- Mounting: clip; terminal: ferrule
- RoHS compliant
Applications
- Protection of diodes and other semiconductor devices at 150 VAC/DC
Specifications
| Item Number | A15QS1-2 |
| Series | Amp-Trap A15QS 150VAC 150VDC |
| Description | High Speed Fuse Amp-Trap A15QS 150VAC 150VDC 1A Ferrule |
| Ampere Rating | 1 A |
| Rated Voltage (AC) | 150 V (UL) |
| Rated Voltage (DC) | 150 V (UL) |
| AC Max Interrupting Rating | 200 kA |
| AC or DC | AC/DC; 50/60 Hz |
| Speed / Characteristic | High Speed (semiconductor protection) |
| Mounting | Clip |
| Connection / Terminal | Ferrule |
| Form Factor | Form 101 |
| Dimensions | Length 1.5 in; Diameter 0.41 in |
| Body / Insulating Material | GMG |
| EAN / UPC | 782001453381 |
| Product Group | Semiconductor Protection Fuses |
| ROHS Compliant | Yes |
| Sell Pack Quantity | 10 pieces |
