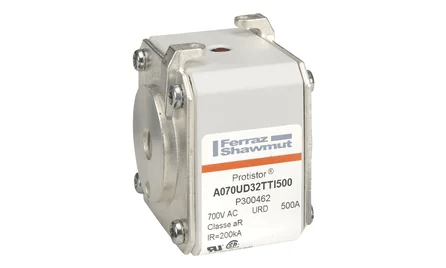

Mersen A070UD32TTI500 Protistor Fuse, 500A 700V AC, Size 32 aR, High-Speed Square Body with Striker - Pack of 3

The Mersen Protistor® A070UD32TTI500 (Item Number M300437) is an ultra-fast acting square body fuse-link designed for the protection of power semiconductor devices. This Size 32 aR class fuse is specifically engineered to provide superior short-circuit protection for high-power electronics such as rectifiers, inverters, and industrial motor drives. It is optimized to minimize I²t let-through energy, ensuring the safety of sensitive components like diodes, thyristors, and SCRs.

Constructed with a premium ceramic body and silver-plated contact surfaces, this fuse ensures high breaking capacity and excellent thermal stability. The internal silver elements are embedded in high-purity solidified sand to effectively quench arcs during fault conditions. This model features an integrated Type I mechanical striker, designed for local visual trip indication or for triggering a microswitch in remote monitoring systems. The TTI flush-end M10 threaded interface allows for low-inductance, secure bolted mounting directly to electrical busbars.

Technical Specifications

• Manufacturer: Mersen
• Catalog Number: A070UD32TTI500
• Item Number: M300437
• Amperage Rating: 500A
• Voltage Rating: 700V AC (IEC / UL)
• Interrupting Rating (Breaking Capacity): 200kA at 700V AC
• Operating Class: aR (Ultra-Fast Acting)
• Product Size: 32
• Mounting Configuration: Flush-End M10 Metric Threads (TTI)
• Indication System: Integrated Mechanical Striker (Type I)
• Pre-arcing I²t: 32 kA²s
• Total Clearing I²t at Rated Voltage: 225 kA²s
• Power Dissipation at Rated Current: 95W
• Standards Compliance: IEC 60269-4, UL recognized, RoHS Compliant
• Quantity: Pack of 3
