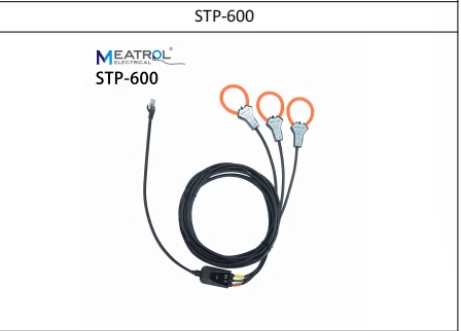

Meatrol STP-600 3M Rogowski Coil Current Sensor, 600A Rated Current, 36mm Window Size
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Meatrol STP-600 is a high-performance 3-in-1 RJ45 port current sensor featuring a flexible Rogowski coil design. This sensor offers excellent linearity from 1% to 100% of full scale and provides a wide dynamic range for accurate current measurement. Designed for easy installation via RJ45 connection, it is particularly suitable for large-sized or awkwardly shaped conductors and locations with limited access. The sensor delivers superior rejection of external current conductors, making it ideal for measuring devices, lab instrumentation, power monitoring & control systems, DC ripple measurement, harmonics and transient monitoring, as well as power meter and power analyzer applications.
| Model | STP-600 |
| Current Sensor Type | Rogowski coil |
| Sensor Model No. | MRC-36 |
| Window Size | 36mm |
| Rated Current | 600A |
| Rated Ratio | 50mV/kA @ 50Hz |
| Maximum Current Measurable | 620A |
| Read Accuracy | < 0.5% from 1% to 100% F.S. (central position, 25°C) |
| Temperature Coefficient | 300ppm/°C |
| Output at 0A (Zero Drift) | ≤ 0.05mV |
| Phase Error | ≤ 0.5° |
| Linearity | ± 0.2% of reading |
| Bandwidth | 1Hz to 10kHz (-3dB) |
| Operating Temperature | -30°C to 80°C |
| Storage Temperature | -40°C to 90°C |
| Sensor Cable Length | 3 meter |
| RJ45 Cable Length | 0.3 meter |
| Weight | Approx 490g |
