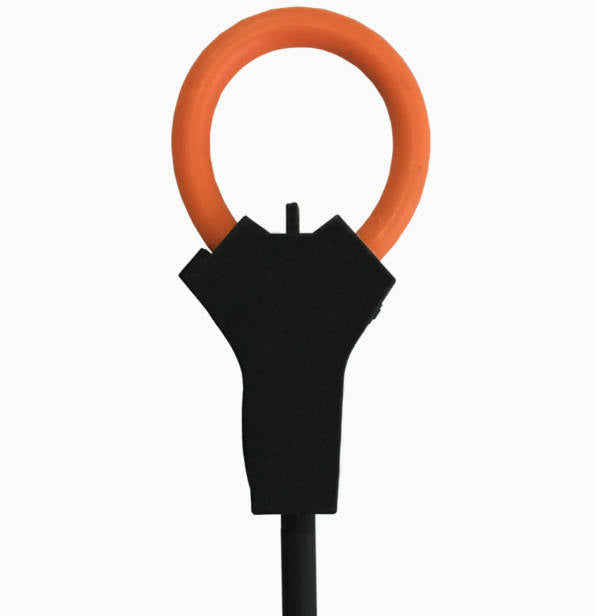

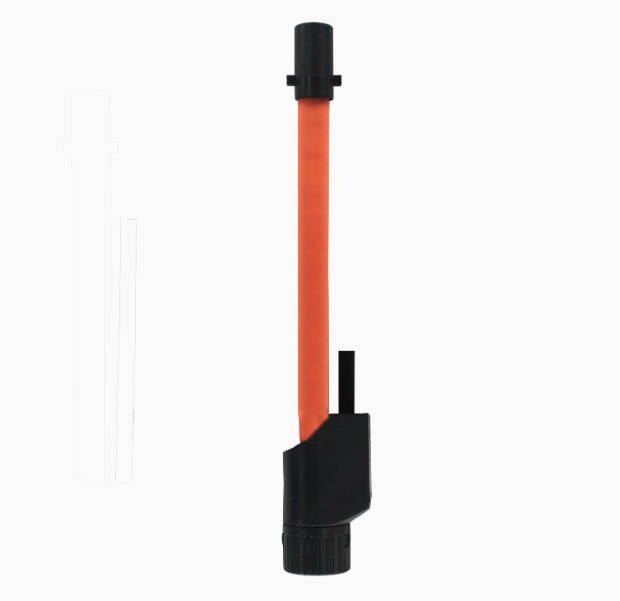

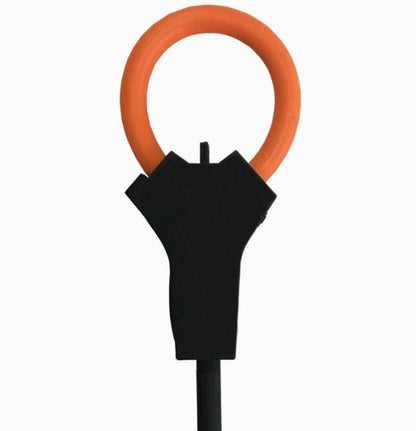

Meatrol MRC-36-2m Flexible Rogowski coil fixedbycableties (36 Pieces)

MRC is a MINI flexible current transducer based on Rogowski principle, particularly suitable for measurementincombination with portable devices. MRC coils are available in different sizes and can be suppliedaccordingtocustomer’s design, therefore they can be used in all those applications, in which traditional transducers arenot fittingdue to its size and/or weight. Due to its specific features, flexible Rogowski coil is an extremely confortable solution for current measurement andcanbe used in a number of cases where traditional current transducer is not the adequate solution. MRC coil is provided with a shield against the influence of external magnetic fields, therefore it grants astablemeasurement from low currents to hundreds of kA. The Rogowski coils must be connected to an electronicintegratorfor 90° phase shift compensation and frequency equalization. Our DIN-RAIL and panel meters can interfaceRogowskicoils directly without the need of the external integrators. This is an advantage because there is no external boxesorany power supply with consequent ease of use. The particular features of the Rogowski coils combinedwiththeextremely flexible input programming of our portable meters, allow to carry out measurement by all applications
