Lenel LNL-2220 Intelligent Dual Reader Access Control Controller, Ethernet IP, OnGuard System Compatible

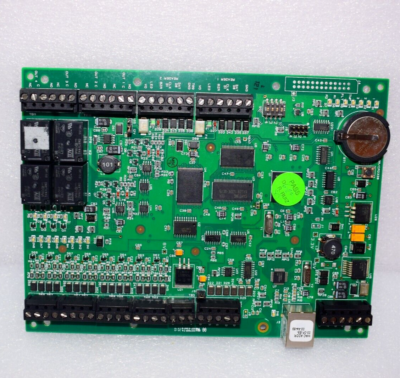

Lenel LNL-2220 Intelligent Dual Reader Controller

Manufacturer: Lenel Systems International, Inc.

Product Overview: The Lenel LNL-2220 Intelligent Dual Reader Controller (IDRC) is a core component within the Lenel OnGuard® access control system, offering a robust single-board solution for interfacing one or two doors. Designed for advanced security applications, the LNL-2220 revolutionizes system architecture by enabling direct Ethernet connectivity from entry points to the OnGuard server. This streamlines installation and enhances data throughput significantly (up to eight times faster than serial connections). Built upon Lenel's proven hardware platform, it provides exceptional security, functionality, and modularity, ensuring scalability from basic to sophisticated access control deployments. In the event of communication loss with the server, the LNL-2220 maintains nearly all local functionality, ensuring uninterrupted operation until connection is restored.

Key Features & Functionality:

• Advanced Processor & Communication: Utilizes a 32-bit processor and native Ethernet (10/100Base-T) for high-speed communication. Supports DHCP and fixed IP addressing, as well as DNS device naming. An alternate RS-232 upstream port is available for slower connections or dial-up modem use.
• Memory & Storage: Equipped with 6MB of on-board non-volatile flash memory capable of storing up to 250,000 cardholders. It also includes battery-backed non-volatile storage for 50,000 events, ensuring data retention. Firmware is stored in flash memory with support for background updates.
• Comprehensive Reader Support: Features two on-board reader ports compatible with Data1/Data0, Clock/Data, Bioscrypt RS-485 readers, and bi-directional RS-485 OSDP (Open Supervised Device Protocol) communications. It supports up to 16 different card/asset formats, biometric template storage (Schlage Recognition Systems®, Bioscrypt®, and Identix®), and up to 9-digit user PIN codes.
• Extensive Access Control Capabilities: Manages up to 32,000 access level permissions, 255 holidays with grouping, 255 timezones (each with 6 intervals), and elevator control for up to 128 floors. Includes enhanced anti-passback and individual extended held open/strike times (ADA compliant).
• Flexible I/O: Provides 8 programmable inputs for door position, REX, and auxiliary functions (normally open/closed, supervised/unsupervised circuits), plus 2 dedicated inputs for tamper and power failure status. Features 4 Form-C relay outputs (5A at 30VDC) for strike control (2) and auxiliary functions (2), supporting fail-safe or fail-secure operation.
• Robust Security: Employs Advanced Encryption Standard (AES) 128-bit algorithm for secure communications.
• Power Management: Operates on 12 or 24 VDC input power. An on-board regulator allows 12 VDC reader power from a 24 VDC source.

Technical Specifications:

• Model: LNL-2220
• Input Power:
  • DC: 12 or 24 VDC ± 15%, 500 mA maximum
  • AC: 12 VAC ± 15%, 400 mA RMS
• Memory:
  • Flash Memory: 6 MB (cardholder & asset database)
  • RAM: 50,000 event, battery-backed (3V Lithium, BR2325, BR2330, CR2330 for backup)
• Communication Ports:
  • Primary (Ethernet): 10/100Base-T high-speed port
  • Alternate Upstream Port 1 (RS-232): 9600 to 115.2 Kbps async
  • Downstream Port 2 (RS-485, 2-wire): 9600 to 38.4 Kbps async (Up to 32 devices/64 doors)
• Inputs: 8 programmable (NO/NC, supervised/unsupervised) + 2 dedicated (unsupervised)
• Outputs: 4 Form-C relays, 5 A @ 30 VDC (2 strike, 2 auxiliary)
• Reader Power (DC Output): 12 VDC, 125 mA regulated (from 24 VDC) or 12-24 VDC, 125 mA current limited (from 12 VDC)
• Reader Port Compatibility: Wiegand Data1/Data0, Magnetic Clock/Data, F/2F single-wire protocol, Bioscrypt RS-485, OSDP RS-485
• Environmental:
  • Operating Temperature: 0° to +70° C (32° to 158° F)
  • Storage Temperature: -55° to +85° C (-67° to 185° F)
  • Humidity: 0 to 95% RHNC (non-condensing)
• Mechanical:
  • Dimensions: 152 x 127 x 25 mm (6 x 5 x 1 in.)
  • Weight: 230 g (8 oz.) nominal
• Approvals: UL 294, CE-marked, RoHS compliant, FCC Part 15, UL 1076, ULC CSA-C22.2, CAN/ULC-S319-05, cUL/ORD-C1076.
• Supported Readers: Schlage Wireless (WA 5296, WA 5696, WA 5694, WA 993, WRI, WPR)
