KEMET ALS30A222NP500 — ALS30 Series Screw‑Terminal Aluminum Electrolytic Capacitor, 2200 µF ±20%, 500 VDC, 20,000 hr, Ø77×146 mm, Lead Spacing 31.8 mm, ESR 80 mΩ @100 Hz, Ripple 14.3 A — Pack of 5

KEMET ALS30A222NP500 — ALS30 Series Screw‑Terminal Aluminum Electrolytic Capacitor, 2200 µF ±20%, 500 VDC, 20,000 hr, Ø77×146 mm, Lead Spacing 31.8 mm, ESR 80 mΩ @100 Hz, Ripple 14.3 A — Pack of 5

$707.00 USD
$707.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express

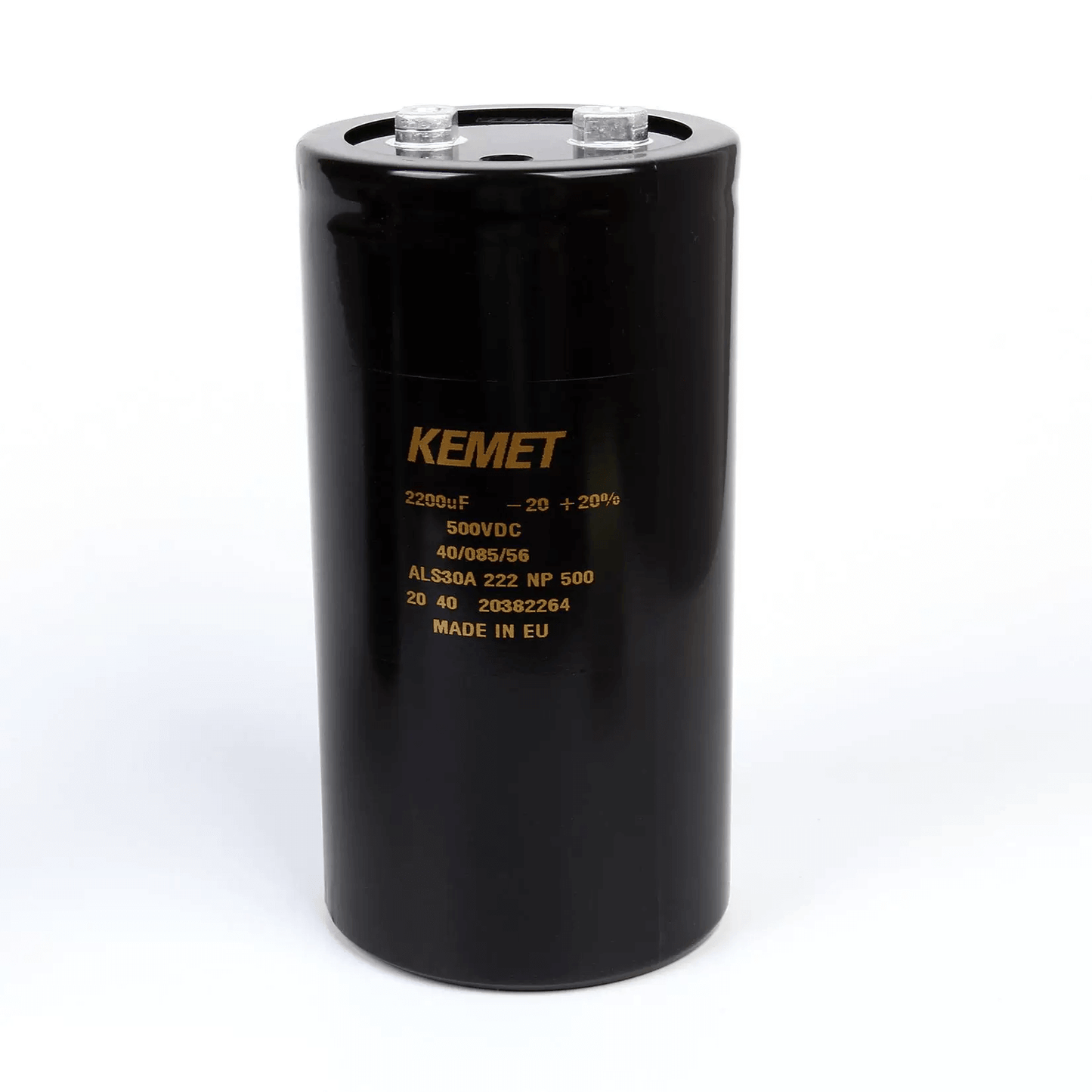

The KEMET ALS30A222NP500 is a screw‑terminal aluminum electrolytic capacitor from the ALS30 family, optimized for high‑voltage DC link and industrial power applications. This listing is for a pack of 5 units. Each capacitor provides high capacitance at 500 VDC, long life, and robust screw‑terminal connections for secure mechanical and electrical mounting.

Key specifications

  • Manufacturer / Brand: KEMET
  • Manufacturer part number: ALS30A222NP500
  • Distributor reference: Mouser 80-ALS30A222NP500
  • Series: ALS30
  • Product type: Screw‑terminal aluminum electrolytic capacitor (radial can, chassis mount)
  • Capacitance: 2200 µF
  • Capacitance tolerance: ±20%
  • Rated voltage (DC): 500 VDC
  • Rated life: 20,000 hours
  • Operating temperature range: −40 °C to +85 °C
  • Diameter: 77 mm
  • Length / Height: 146 mm
  • Lead spacing (terminal pitch): 31.8 mm
  • Termination style: Screw terminals (chassis mount)
  • ESR: 80 mΩ (measured @ 100 Hz)
  • Ripple current: 14.3 A (test frequency 100 Hz)
  • Leakage current: 6.0 mA
  • Test frequency: 100 Hz
  • Packaging: Pack of 5 (bulk)
  • Unit weight: 1.0 kg

Features & benefits

  • High 2200 µF capacitance at 500 VDC for DC link, smoothing, and energy storage in high‑voltage power systems.
  • Long operational life (20,000 hours) suitable for continuous industrial use.
  • Designed for significant ripple handling (14.3 A) with an ESR of 80 mΩ to manage thermal dissipation.
  • Screw‑terminal termination offers secure, low‑resistance connections to busbars and heavy wiring.

Handling & installation notes

  • Observe polarity when installing.
  • Use manufacturer‑recommended torque on screw terminals to prevent damage.
  • Ensure sufficient ventilation and spacing to dissipate heat from ripple losses and to meet rated life.
  • Confirm mechanical clearance for Ø77×146 mm body and 31.8 mm terminal spacing before mounting.

Ordering & technical resources

  • Order by KEMET part ALS30A222NP500 or Mouser 80-ALS30A222NP500. Consult the official KEMET datasheet and ECAD model for full mechanical drawings, mounting details, and additional test conditions.
