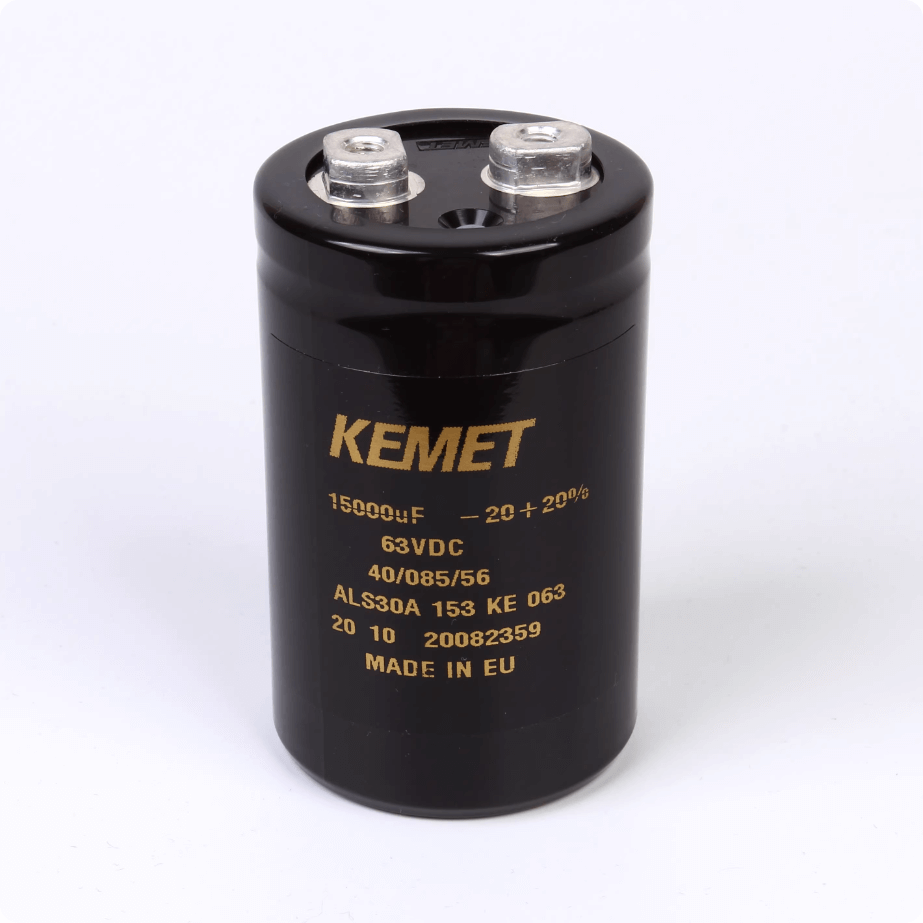

KEMET ALS30A153KE063 — ALS30 Series Screw‑Terminal Aluminum Electrolytic Capacitor, 15,000 µF ±20%, 63 VDC, 18,000 hr, Ø51×82 mm, Lead Spacing 22.2 mm, ESR 12 mΩ @100 Hz, Ripple 13.9 A — Pack of 5

The KEMET ALS30A153KE063 is a high‑capacitance, screw‑terminal aluminum electrolytic capacitor from the ALS30 family, designed for demanding power electronics applications such as DC link, bulk energy storage, smoothing, and industrial power supplies. This listing is for a pack of 5 units. The capacitor combines very high capacitance with low ESR and robust screw terminals for secure, high‑current connections.

Key specifications

• Manufacturer / Brand: KEMET
• Manufacturer part number: ALS30A153KE063
• Series: ALS30
• Product type: Screw‑terminal aluminum electrolytic capacitor (chassis/radial can)
• Capacitance: 15,000 µF
• Capacitance tolerance: ±20%
• Rated voltage (DC): 63 VDC
• Rated life: 18,000 hours
• Operating temperature range: −40 °C to +85 °C
• Diameter: 51 mm
• Length / Height: 82 mm
• Lead spacing (terminal pitch): 22.2 mm
• Termination style: Screw terminals
• ESR: 12 mΩ (measured @ 100 Hz)
• Ripple current: 13.9 A (test frequency 100 Hz)
• Leakage current: 5.67 mA
• Test frequency: 100 Hz
• Packaging: Pack of 5 (bulk)
• Unit weight: 220 g

Features & benefits

• Very high 15,000 µF capacitance at 63 VDC for substantial bulk energy storage and ripple smoothing.
• Low ESR (12 mΩ) and high ripple rating (13.9 A) reduce heating and improve reliability in high‑power applications.
• Robust Ø51×82 mm chassis with 22.2 mm screw terminal spacing for secure high‑current mechanical and electrical connections.
• 18,000‑hour life rating suitable for continuous industrial operation.

Handling & installation notes

• Observe polarity markings; reverse polarity will damage the capacitor.
• Tighten screw terminals to the manufacturer’s recommended torque to avoid terminal or seal damage.
• Provide adequate ventilation or spacing to dissipate heat from ripple losses to meet rated life.
• Consult the KEMET datasheet/ECAD model for exact mechanical drawings, recommended torque, and mounting details.

Ordering & technical resources

• Order by KEMET ALS30A153KE063. Refer to the official KEMET datasheet and ECAD model for full mechanical drawings and additional test conditions.
