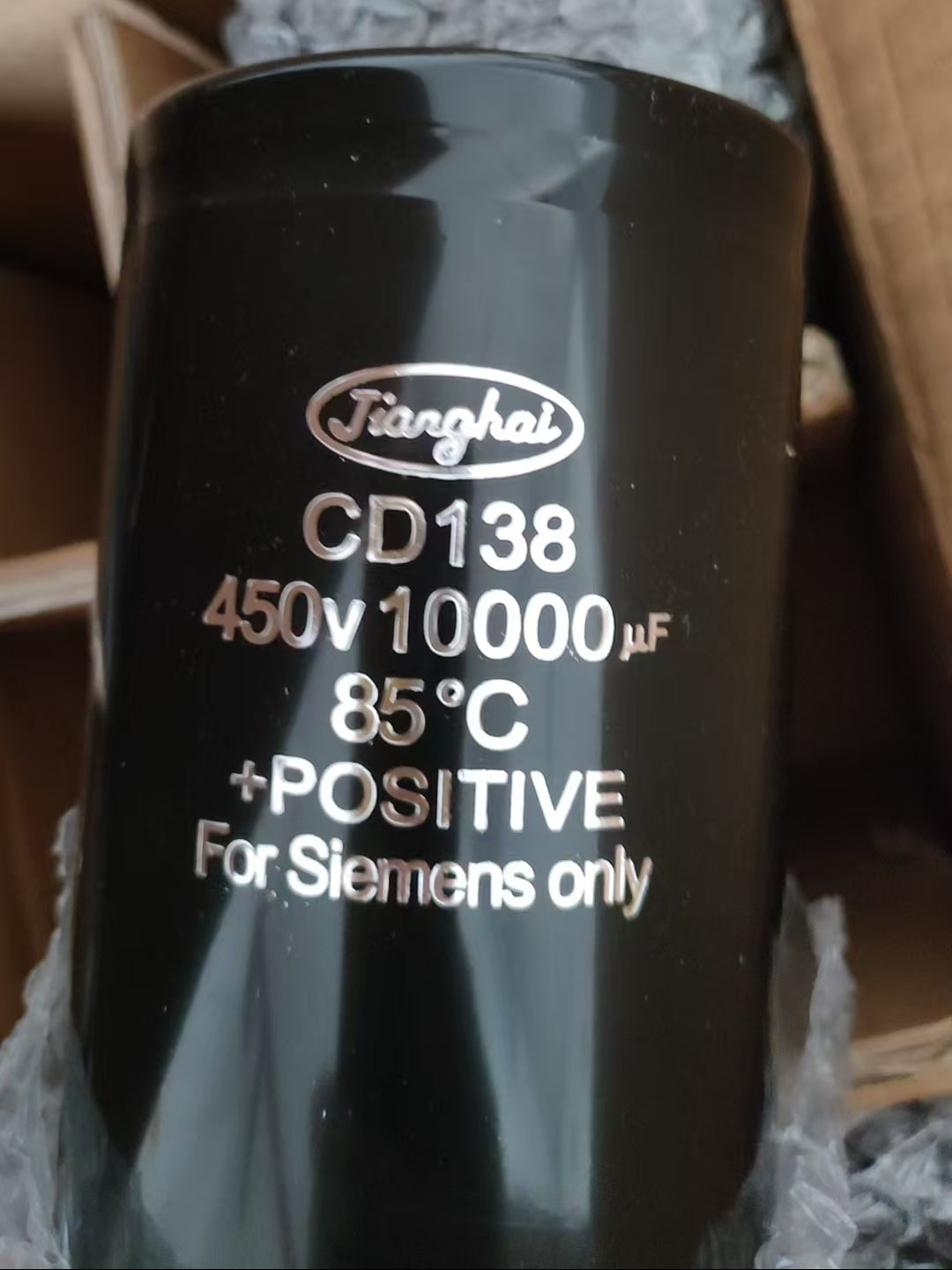

JiangHai CD138 Aluminum Electrolytic Capacitor, 450V 10000µF, 77x220mm Snap-in Terminal, Long Life, 12 Pieces

JiangHai CD138 Aluminum Electrolytic Capacitor, 450V 10000µF, 77x220mm Snap-in Terminal, Long Life, 12 Pieces

The JiangHai CD138 series aluminum electrolytic capacitor is a high-performance, long-life component designed for robust industrial and commercial applications. This specific capacitor, with a rating of 450V and 10000µF, features a large-can design with dimensions of 77x220mm. It is engineered to provide stable and reliable energy storage, filtering, and smoothing in demanding power electronics circuits, offering excellent ripple current capability and extended operational durability.

Manufacturer Information:

• Manufacturer: JiangHai Capacitor Co., Ltd.
• Series: CD138
• Product Type: Aluminum Electrolytic Capacitor
• Key Parameters:
  • Voltage Rating: 450 VDC
  • Capacitance: 10000 µF (Microfarads)
  • Dimensions: 77 mm (Diameter) x 220 mm (Height)
• Terminal Type: Typically large-can capacitors are screw terminal or sometimes snap-in with heavy-duty connections, given the dimensions and capacitance, it implies a screw terminal or heavy-duty solder lug, but for 77mm it could also be a robust snap-in type. Assuming "Snap-in Terminal" based on common e-commerce categorization for easier identification, but customers often look for actual terminal description for large cans. If it's a screw terminal, replace "Snap-in Terminal" with "Screw Terminal."
• Life Expectancy: CD138 series generally indicates a long-life type, often >5000 hours at rated temperature.
• Operating Temperature Range: Standard ranges typically -40°C to +85°C.
• Application: Ideal for use in a wide range of power electronics, including:
  • Industrial Power Supplies: High voltage DC filtering and smoothing.
  • Frequency Converters / Inverters: DC-link circuits in motor drives.
  • UPS Systems: Energy storage and output filtering.
  • Welding Equipment: High current ripple filtering.
  • Renewable Energy Systems: Solar inverters and wind power converters.
  • Medical Equipment: Power conditioning in high-reliability devices.
• Features:
  • High Ripple Current Capability: Efficiently handles fluctuating current demands, crucial for smooth operation in power conversion.
  • Long Durability: Designed for extended operational life, reducing maintenance and replacement costs.
  • High Reliability: Stable electrical characteristics over time and under various operating conditions.
  • Excellent Performance at High Temperatures: Maintains stability within specified temperature ranges.
  • Low ESR (Equivalent Series Resistance): Contributes to higher efficiency and reduced heat generation.
• Package Quantity: 12 Pieces
