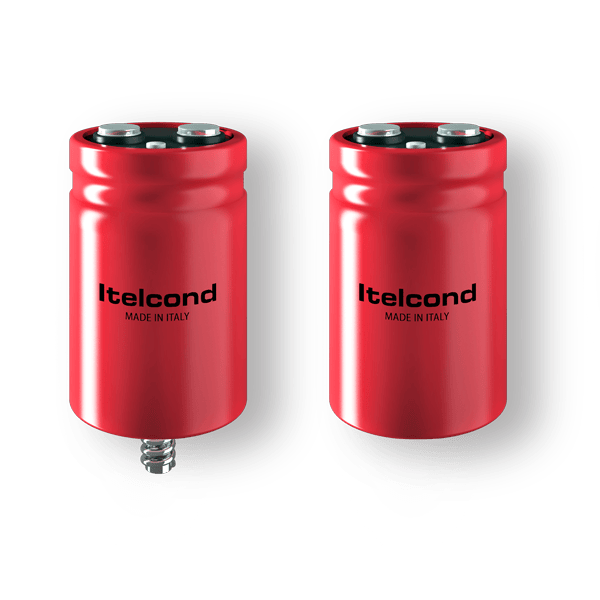

Itelcond AY(U)X-HR472M350DF1 Aluminium Electrolytic Capacitor, 4700µF 350V, Low-ESR DF Series, Screw Terminal (76x145mm) - Pack of 12

High-reliability Itelcond AY(U)X-HR472M350DF1 aluminium electrolytic capacitor — engineered for industrial DC‑bus, inverter, UPS, solar/wind and energy‑storage applications requiring long useful life and high ripple capability.

Key specifications

• Manufacturer: Itelcond (Made in Italy)
• Series / Type: AY(U)X-HR (long useful life, HR family) — screw terminal type
• Capacitance: 4700 µF (measured @ 100 Hz)
• Capacitance tolerance: ±20% (M)
• Rated DC voltage: 350 VDC
• Temperature range: -40°C to +85°C (series HR)
• Case / dimensions: DF case (approx. 76 x 145 mm) — mounting stud option available (U)
• Dissipation factor (tan δ) @100 Hz, 25°C: 0.08
• Equivalent Series Resistance (ESR) @100 Hz: typ/ max ≈ 20 mΩ / 27 mΩ
• Impedance Zmax @10 kHz: ~17 mΩ
• Rated ripple current (typical) @100 Hz: 23.9 A @ 55°C; 17.1 A @ 85°C (use appropriate Kt/Kf factors for other frequencies/temperatures)
• Expected useful life: long-life HR curve (typical life 10,000 h at 85°C for AY-HR family; consult datasheet for specific conditions and graphs)
• Construction: welded aluminium can, EPR gasket, pressure‑release vent, self‑extinguishing sleeve
• Packaging: Pack of 12 units
• Typical applications: DC‑bus, inverters, UPS, motor drives, solar/wind inverters, e‑mobility, rail, telecoms and industrial power electronics

Notes / Handling

• Observe polarity; do not exceed rated voltage (VDC + VAC ripple must remain within rating).
• Re‑aging may be required after long shelf storage. Follow Itelcond recommended re‑aging procedure if stored >2 years.
• Consult the Itelcond datasheet for frequency/temperature ripple correction factors, expected‑life graphs, surge/ transient limits and mechanical mounting details.

Datasheet & Manufacturer

• Manufacturer: Itelcond
• For full technical details, life curves, installation drawings and frequency/temperature correction factors see Itelcond AY(U)X-HR datasheet.
