Infineon TZ630N28KOFHPSA1 Thyristor/Diode Module, 630A 2800V, Phase Control, 2-SCR Non-Isolated - Pack of 1

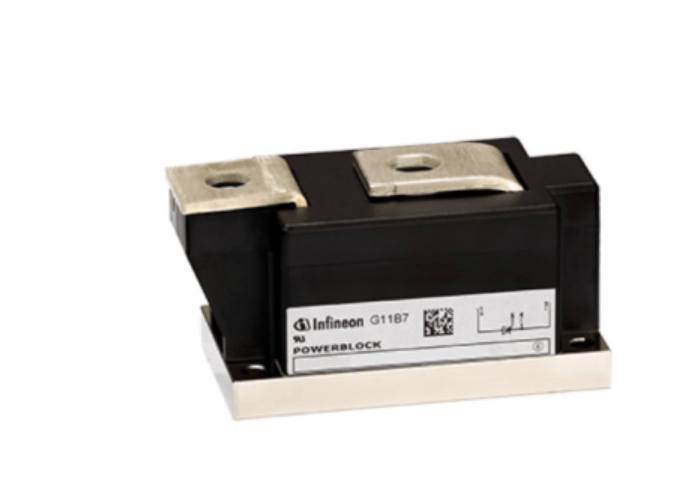

Infineon TZ630N28KOFHPSA1 Thyristor/Diode Module

The Infineon TZ630N28KOFHPSA1 is a robust Thyristor/Diode module engineered for high-power phase control applications. This module integrates two Silicon Controlled Rectifiers (SCRs) in a non-isolated configuration, capable of handling a continuous current of 630A and rated for a voltage of 2800V. It is specifically designed for applications requiring efficient and reliable power control, such as industrial drives, DC motor control, power supplies, and soft starters. The module's impressive surge current capability (ITSM) of 9000A at 50Hz and low on-state voltage (VTM) of 2.1V at 1000A ensures stable operation under demanding loads. Its robust construction and high thermal cycling capability contribute to a long operational lifespan and reliability in harsh industrial environments.

Manufacturer Information:

• Manufacturer: Infineon Technologies
• Series: EconoPACK®+ D
• Part Status: Active
• SCR Type: Phase Control
• Number of SCRs, Diodes: 2 SCRs
• Voltage - Off State: 2800V (2.8kV)
• Current - On State (It (RMS)) (Max): 1000A
• Current - On State (It (AV)) (Max): 630A
• Current - Non Rep. Surge 50Hz, 60Hz (Itsm): 9000A @ 50Hz
• Voltage - Gate Trigger (Vgt) (Max): 3V
• Current - Gate Trigger (Igt) (Max): 200mA
• Current - Hold (Ih) (Max): 800mA
• Operating Temperature: -40°C ~ 125°C (TJ)
• Mounting Type: Chassis Mount
• Package / Case: Module
• Supplier Device Package: M2-247-49 (PMOD-2)
