Infineon FZ1200R12KF5 IGBT Module, 1200A 1200V, 3-Phase Bridge, NPT-IGBT, Low VF, Trench/Fieldstop - Pack of 1

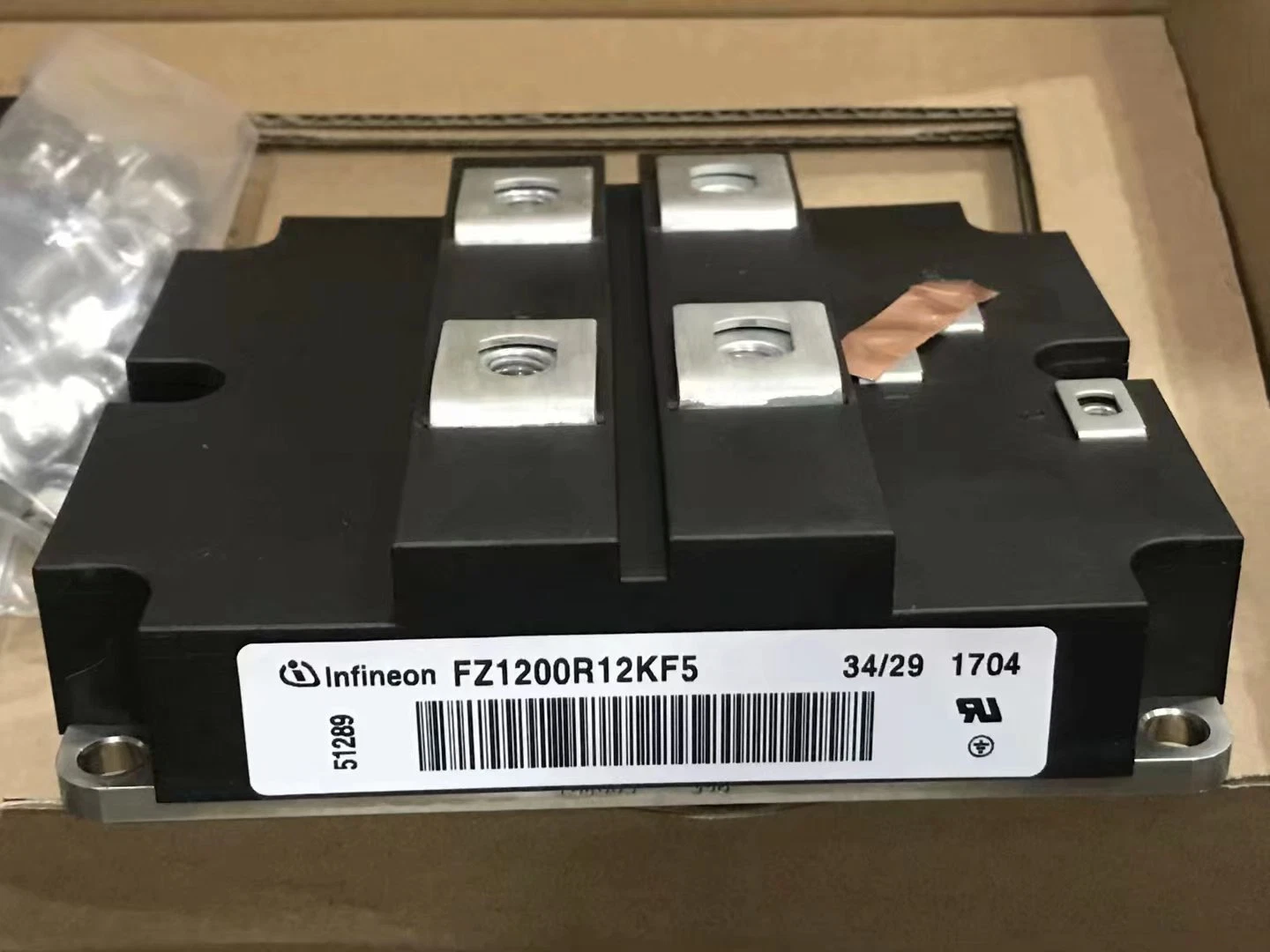

Infineon FZ1200R12KF5 IGBT Module

The Infineon FZ1200R12KF5 is a high-power IGBT module featuring a three-phase bridge configuration, designed for demanding industrial applications. This module incorporates Infineon's advanced NPT (Non-Punch Through) IGBT technology, offering exceptional performance with a rated current of 1200A and a voltage rating of 1200V. The FZ1200R12KF5 utilizes Trench/Fieldstop technology, which contributes to its low forward voltage drop (VF) and enhanced switching characteristics, resulting in lower power losses and higher efficiency. It is ideally suited for applications such as motor drives, wind power converters, uninterruptible power supplies (UPS), and induction heating systems where high reliability and robust thermal performance are critical. The module's robust packaging ensures mechanical stability and superior thermal cycling capability, contributing to a long operational lifetime in harsh environments.

Manufacturer Information:

• Manufacturer: Infineon Technologies
• Part Number: FZ1200R12KF5
• IGBT Type: NPT (Non-Punch Through) IGBT with Trench/Fieldstop Technology
• Configuration: 3-Phase Bridge
• Collector-Emitter Voltage (Vce(max)): 1200V
• Continuous Collector Current (Ic(max)): 1200A (at 80°C)
• Gate-Emitter Voltage (Vge(max)): ±20V
• Operating Temperature (Tj): -40°C to +150°C
• Isolation Voltage (Visol): 4000V AC (for 1 min.)
• Low VF: Yes
• Mounting Type: Chassis Mount
• Certifications: UL Recognized
